Panasonic PT-LRW35 3500 ANSI Lumens WXGA Portable LED Projector
Panasonic PT-LRW35 3500 ANSI Lumens WXGA Portable LED Projector
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
無法載入取貨服務供應情況
|
Projector type |
1-Chip DLP™ projector |
|
|
DLP™ chip |
|
|
|
Panel size |
16.5 mm (0.65 in) diagonal, 16:10 aspect ratio |
|
|
Display method |
DLP™ chip x 1, DLP™ projection system |
|
|
Number of pixels |
1,024,000 (1280 x 800) pixels |
|
|
Light source |
Light Emitting Diode |
|
|
Light output*1 |
3,500 lm |
|
|
Time until light output declines to 50 %*2 |
20,000 hours |
|
|
Resolution |
1280 x 800 pixels |
|
|
Contrast ratio*1 |
30,000:1 (When [Light power] is set to [Normal] and [Picture Mode] is set to [Dynamic]) |
|
|
Screen size [diagonal] |
1.02–7.62 m (40–300 in), 16:10 aspect ratio |
|
|
Center-to-corner zone ratio*1 |
90 % |
|
|
Lens |
1.3x manual zoom (throw ratio: 1.35–1.77:1) |
|
|
Lens shift |
Vertical: +52 %, +42 % |
|
|
Keystone correction range |
Vertical: ±30 ° |
|
|
Installation |
Ceiling/floor, front/rear, 2-axis 360-degree installation |
|
|

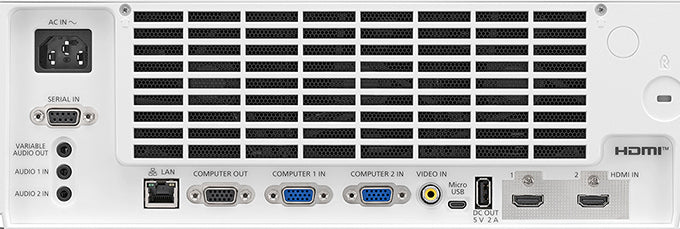

Terminals |
|
|
|
HDMI IN 1/HDMI IN 2 |
HDMI 19-pin x 2 (HDCP and Deep Color compatible), CEC supported |
|
|
COMPUTER 1 IN |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
|
|
COMPUTER 2 IN |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
|
|
COMPUTER OUT |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
|
|
VIDEO IN |
Pin jack x 1 |
|
|
AUDIO 1 IN/AUDIO 2 IN |
M3 stereo mini-jack x 2 |
|
|
VARIABLE AUDIO OUT |
M3 stereo mini-jack x 1 |
|
|
SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
|
|
LAN |
RJ-45 x 1 for network control, 10Base-T, 100Base-T, compatible with PJ Link™ (Class 1) |
|
|
Micro USB |
x 1 (for service use) |
|
|
DC OUT |
USB Connector (Type A) x 1 (for power supply, DC 5 V/2 A) |
|
|
Power supply |
AC 100–240 V, 50/60 Hz |
|
|
Power consumption |
NORMAL: 420 W, ECO: 255 W, QUIET: 196 W |
|
|
Built-in speaker |
10 W monaural |
|
|
Cabinet materials |
Molded plastic |
|
|
Operation noise*1 |
NORMAL: 35 dB, ECO: 27 dB, QUIET: 24 dB |
|
|
Dimensions (W × H × D) |
375 x 124*3 x 314 mm (14 3/4˝ x 4 7/8˝*3 x 12 3/8˝ ) (including protruding parts) |
|
|
Weight*4 |
Approx. 6.7 kg (14.8 lbs) |
|
|
Operating environment |
Operating temperature: 0–40 °C (32–104 °F)*5; Operating humidity: 20–80 % (no condensation) |
|
|
Applicable software |
Multi Monitoring & Control Software, Early Warning Software |
|
