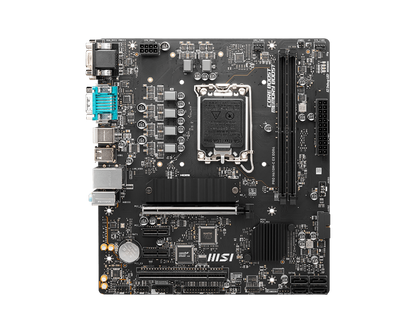

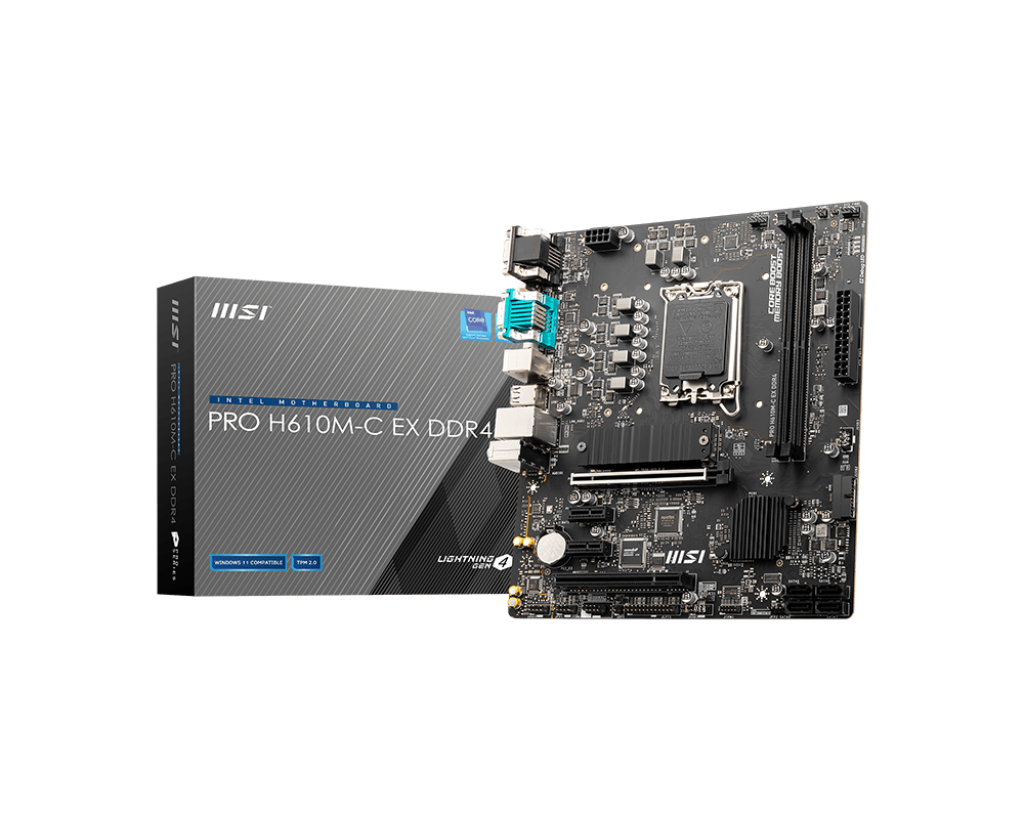

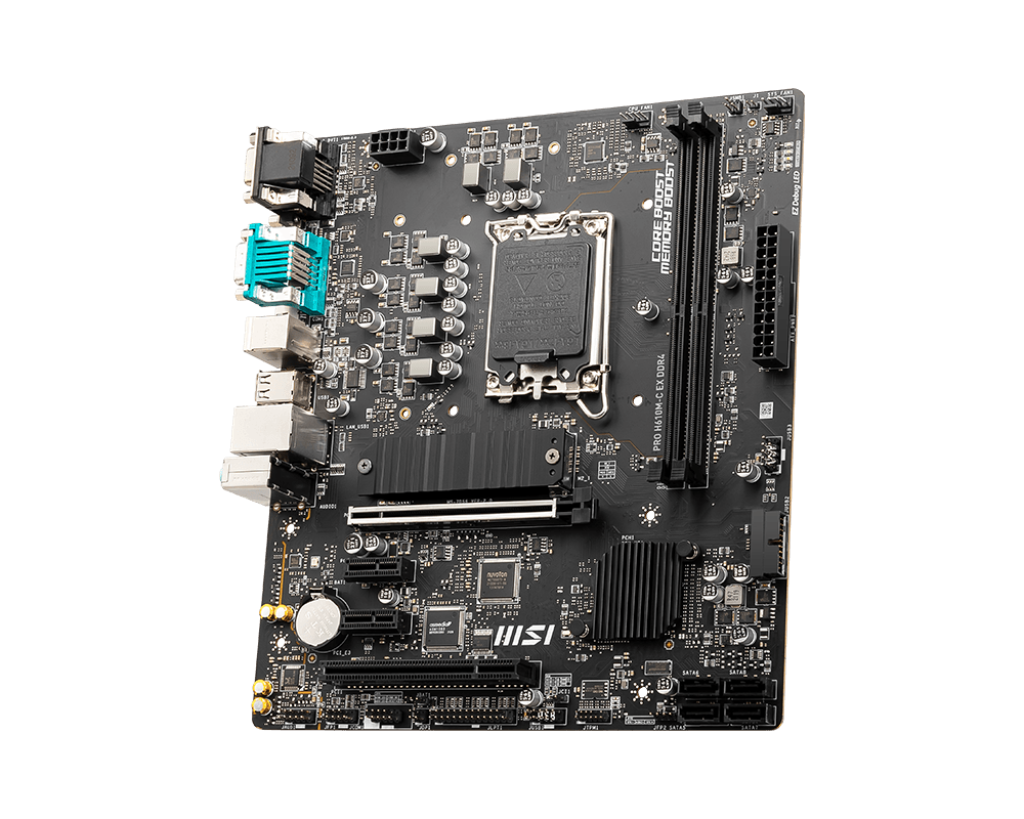

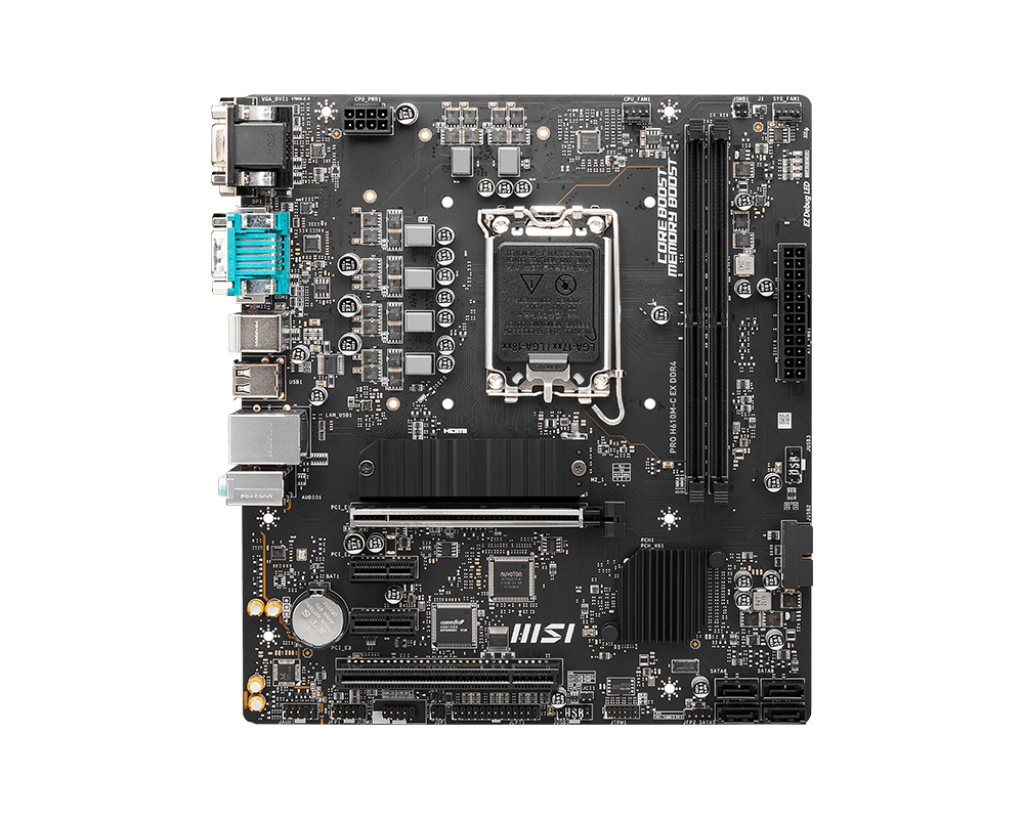

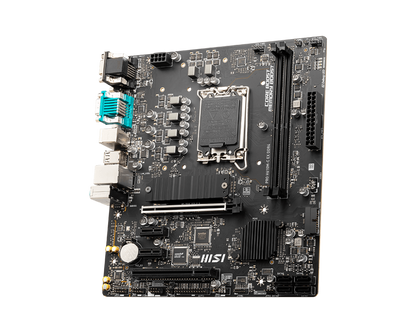

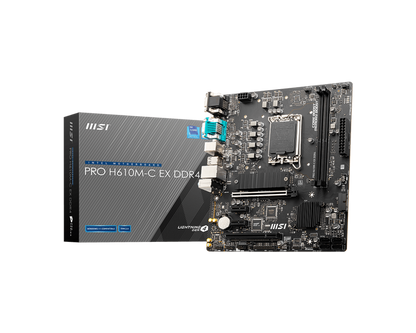

MSI PRO H610M-C EX DDR4 LGA 1700 Motherboard

Name: MSI PRO H610M-C EX DDR4 LGA 1700 Motherboard
Brand: MSI
SKU: PRO H610M-C EX DDR4
Price: 5900.00 PHP
Availability: InStock

₱5,900.00 PHP

特價售罄

結帳時計算運費。

MSI Brand - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days, Island Plus 2 days. Availability of stock is subject to change without prior notice.

Datasheet click here specification click here

Processor

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors ¹

Processor socket LGA1700

Please go to msi.com to get the newest support status as new processors are released.

See supported processors

Chipset

Intel^® H610 Chipset

Memory

2x DDR4 memory slots, support up to 64GB¹
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

1x PCIe x16 slot
- ▪ PCI_E1 (from CPU
  - Support up to PCIe 4.0 for 12th Gen Intel® CPU
2x PCIe x1 slots (from H610 chipset)
- Support up to PCIe 3.0
1x PCI slot (from H610 chipset)

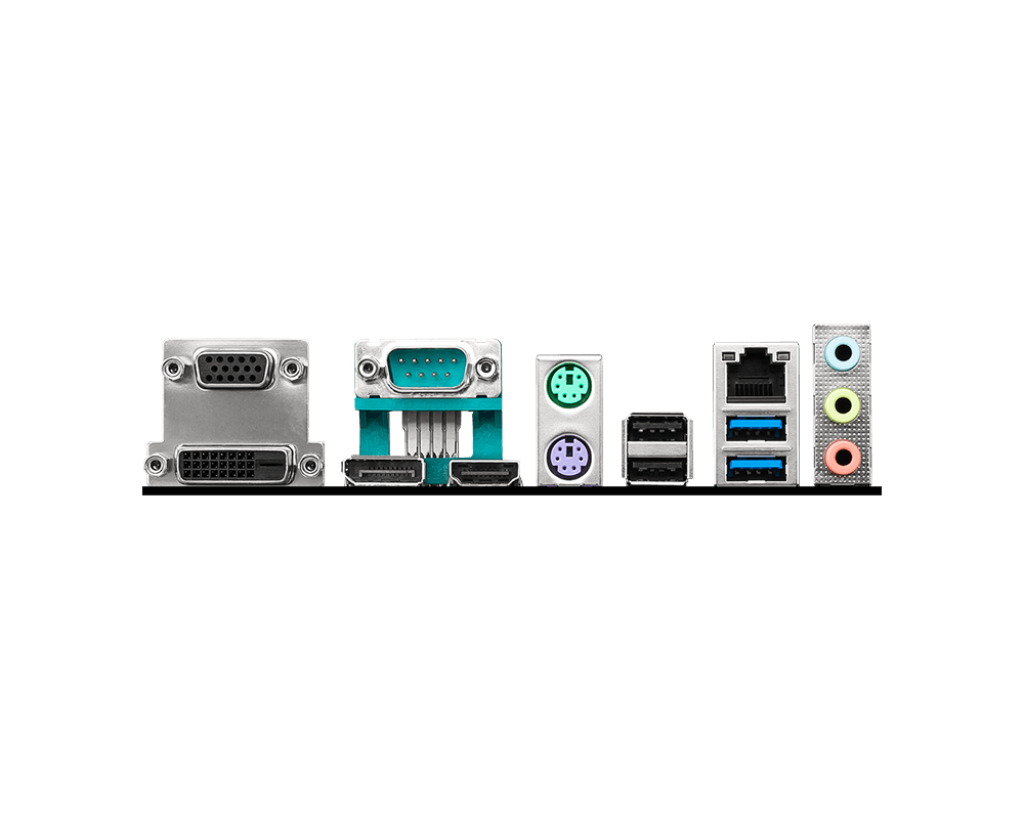

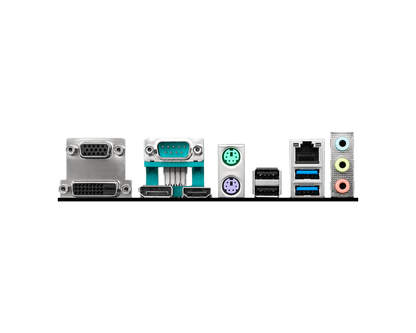

Onboard Graphics

1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz¹²
1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz¹²
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x DVI-D port, supporting a maximum resolution of 1920x1200 60Hz

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Storage

Intel^® H610 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (M2_1 slot)
- Supports up to PCIe 3.0 x 4
- Supports 2242/ 2260/ 2280 storage devices

*SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

LAN

1x Realtek® RTL8111H 1Gbps LAN controller

USB

Intel^® H610 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 Type-A ports available through the internal connectors)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Audio

Realtek^® ALC897 Codec
- 7.1-Channel High Definition Audi

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connector (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connecto
