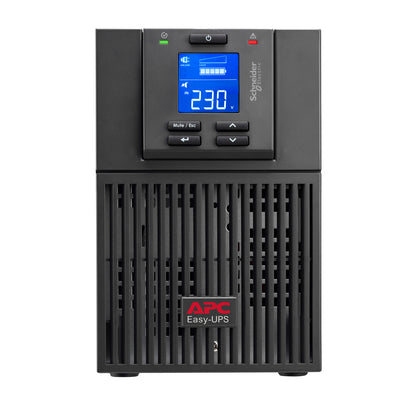

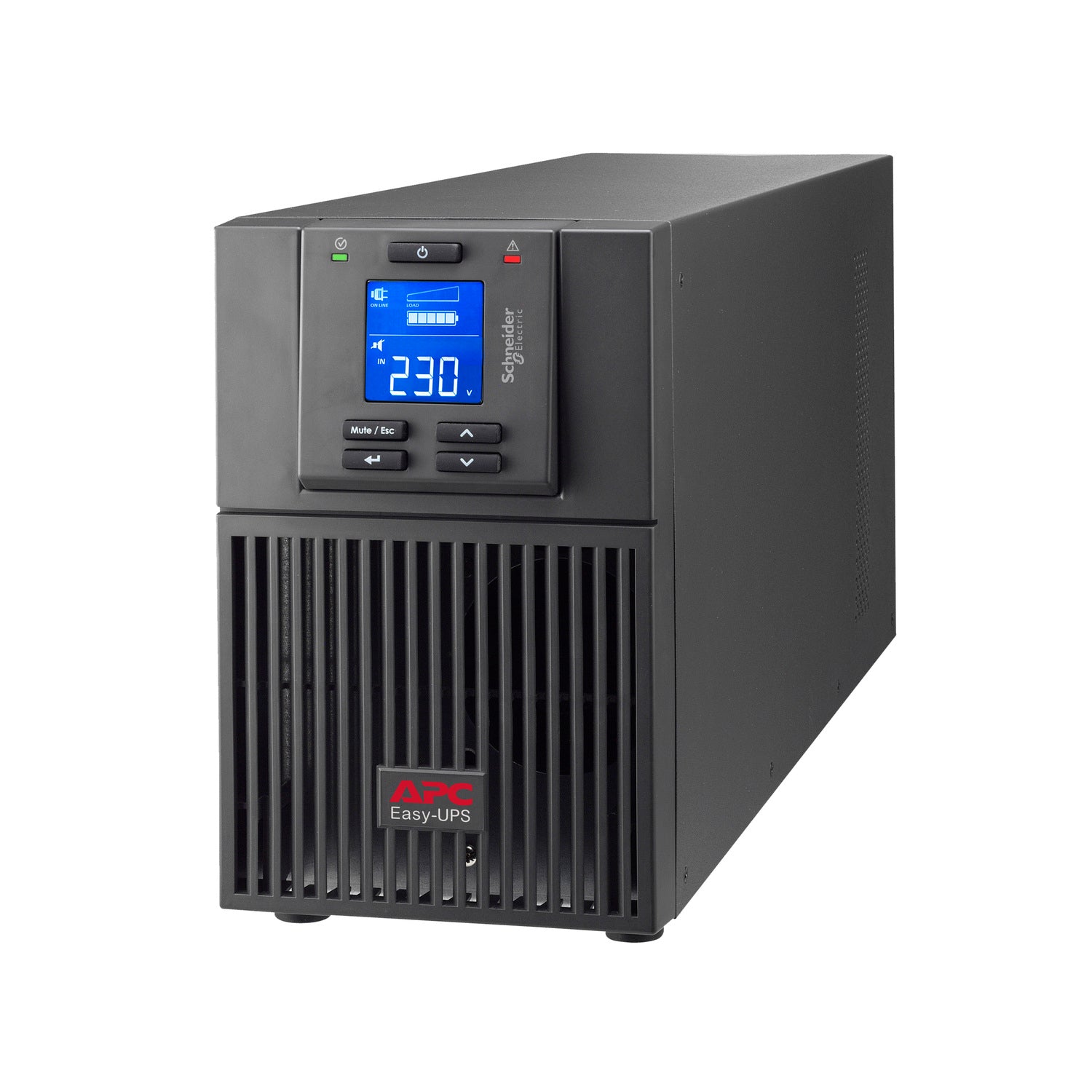

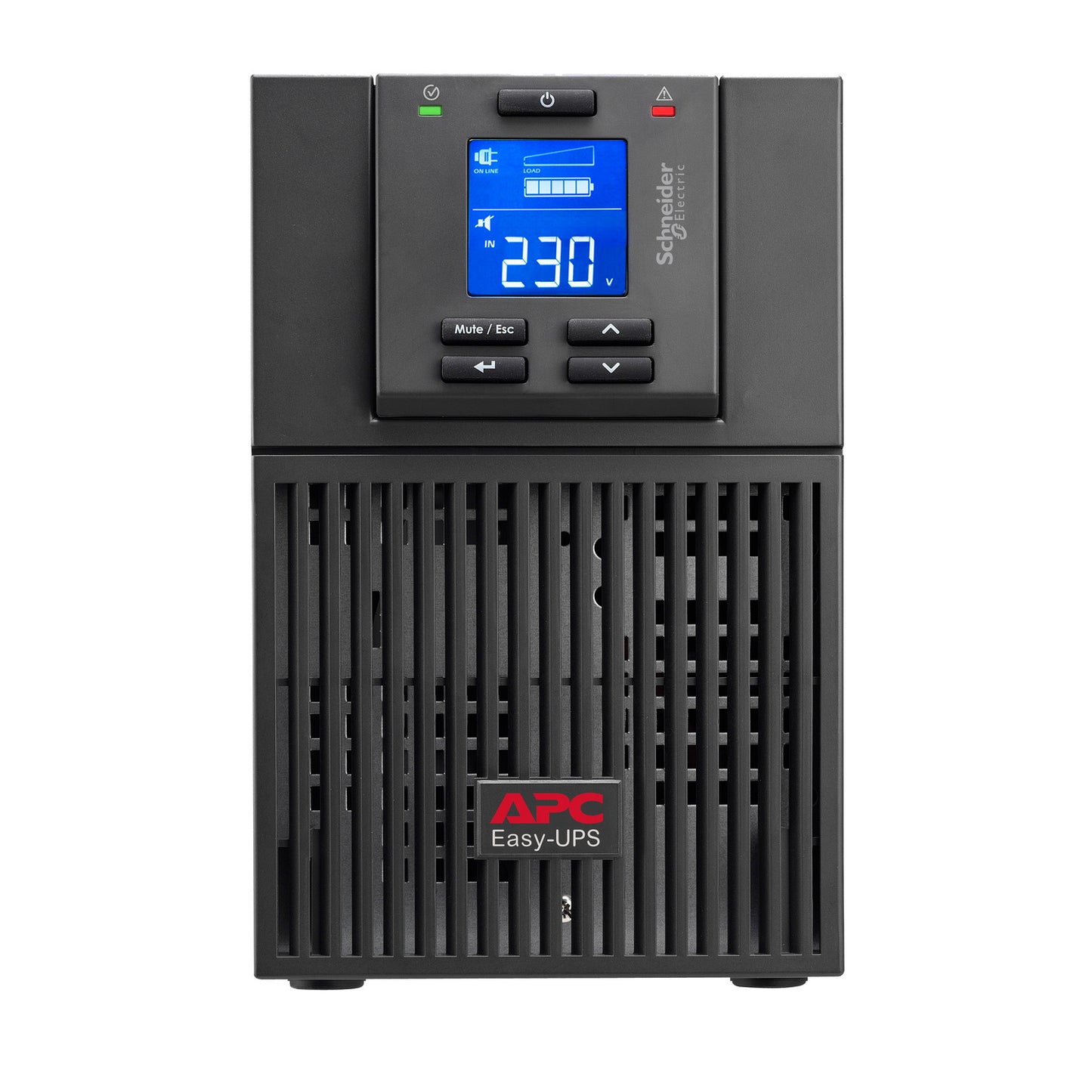

APC Easy UPS On-Line (SRV1KI-E) 1000VA/900W Tower 230V 3x IEC C13 outlets Intelligent Card Slot LCD

APC Easy UPS On-Line (SRV1KI-E) 1000VA/900W Tower 230V 3x IEC C13 outlets Intelligent Card Slot LCD

₱19,900.00 PHP
₱22,995.00 PHP ₱19,900.00 PHP
特價 售罄
結帳時計算運費。

APC Brand - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days, Island Plus 2 days. Availability of stock is subject to change without prior notice.

Specifications

Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time Usually in Stock
Main
Run time for load
W

Min-max: 90-900 W
3min 12s
Max. Capacity Used
100 %


Main Input Voltage 230 V AC 1 phase
Product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V
240 V
Output voltage 230 V AC 1 phase
Other Output Voltage 220 V
240 V
Rated power in W 900 W
Rated power in VA 1000 VA
Input Connection Type IEC 60320 C14
Output connection type 3 IEC 60320 C13
Cable length 1.5 m
Number of cables 1
Provided equipment 1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
user manual
Range of product Easy UPS On-Line
Complementary
Battery type Lead-acid internal included
UPS connectivity Serial port
USB port
Available expansion slot
Mounting mode Tower
Batteries & Runtime
Run Time
Efficiency
Battery type Lead-acid battery
Battery voltage 24 V
Extended runtime 0
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Battery life 3…5 year(s)
Replacement battery
Battery charger power 30 W rated
General
Max runtime 3 min
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
Physical
Colour Black (RAL 7010)
Height 223 mm
Width 145 mm
Depth 288 mm
Net weight 9.6 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible Yes
Mounting position Vertical
Input
Input voltage limits 110...285 V 40% load
180...285 V full load
Network frequency 40...70 Hz auto sensing
Output
Maximum configurable power in VA 1000 VA
Maximum configurable power in W 900 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 3 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 88 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Conformance
Product certifications CE
UKCA
TISI
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 380 Btu/h
IP degree of protection IP20
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots 1
Control panel Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate 945 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 33.000 cm
Package 1 Width 23.500 cm
Package 1 Length 36.500 cm
Package 1 Weight 10.900 kg
Unit Type of Package 2 P06
Number of Units in Package 2 2
Package 2 Height 45.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 29.000 kg
Contractual warranty
Warranty 2 years repair or replace
