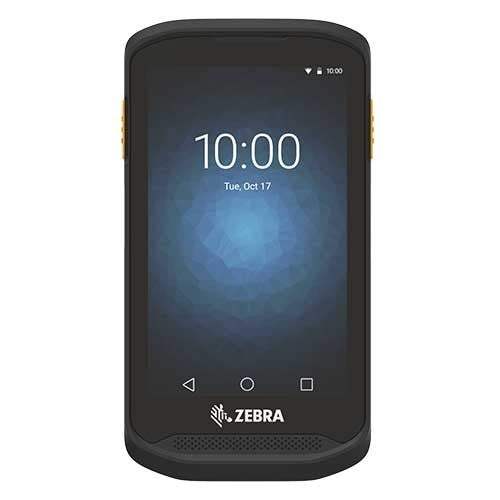

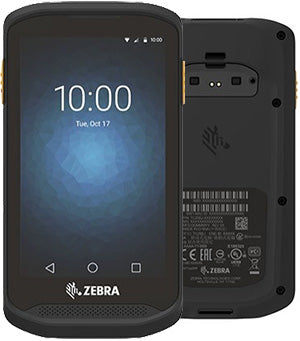

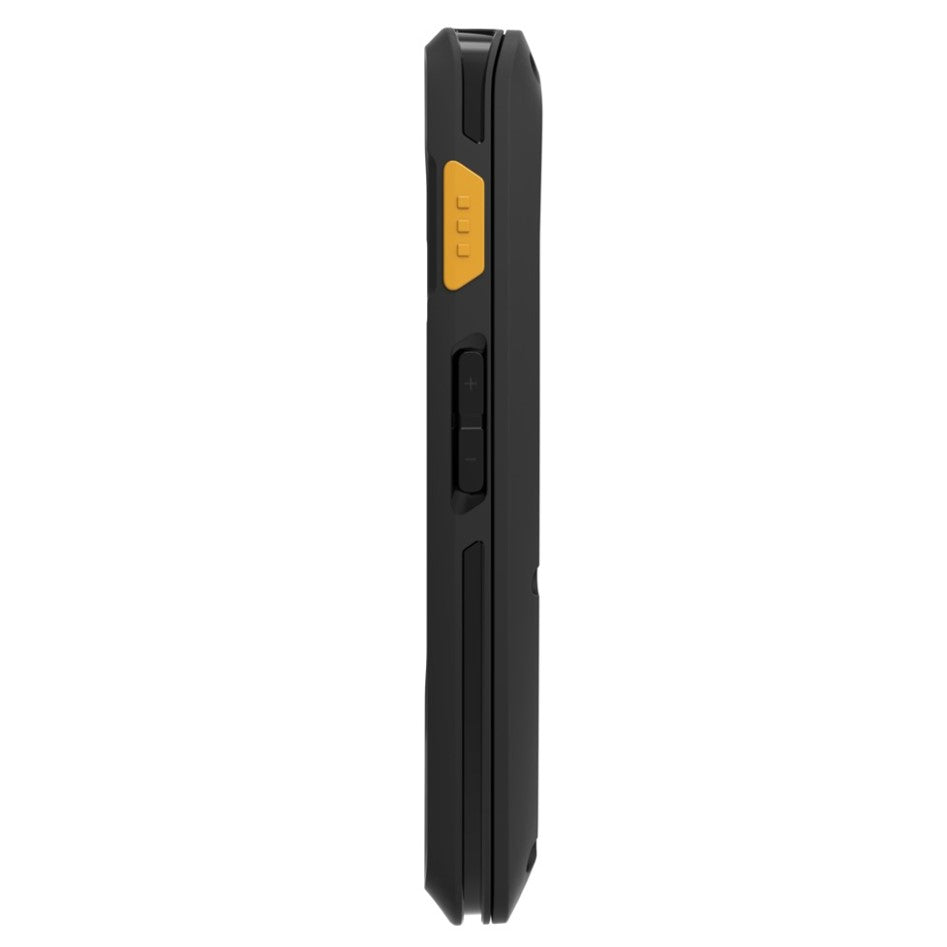

Zebra TC25 Mobile Computer

  • ₱24,990.00
    Unit price per
Shipping calculated at checkout.

Physical Characteristics

Dimensions 5.27 in. L x 2.82 in. W x .63 in. D
134 mm L x 73.1 mm W x 16 mm D
Weight 6.88 oz./195 g
Display 4.3 in. color WVGA (800x480); LED backlight; Corning Gorilla Glass
Imager Window Corning Gorilla Glass
Touch Panel Capacitive Touch Panel; multi-touch
Power Non-removable / serviceable
Rechargeable Li-Ion: standard capacity, 3000mAh
Charge in under 4 hours (10 hours = 1 shift)
RTC backup
Expansion Slot One 128GB micro SD slot
SIM 1 Nano SIM slot
Network Connections 1 USB OTG - host/client (Type C connector)
Notifications Audible tone, multi-colored LEDs, vibration
Keypad On-screen keypad
Audio Speaker - 1 Watt (94dBA)
Voice support (Internal speaker/microphone)
Two (2) microphones
Buttons Scan on each side, Volume Up/Down, Power, push-to-talk (PTT) keys
Performance Characteristics

CPU QCOM MSM8937® 64-bit 8-Core, ARM® Cortex A53 1.4GHz, 512KB L2 cache, power-optimization
Operating System Android Oreo 8.1
Memory 2GB RAM/16GB Flash memory
Security Verified Boot
User Environment

Operating Temperature

14° F to 122° F / -10° C to 50° C

Storage Temperature -40° F to 158° F / -40° C to 70° C
Drop Specifications Multiple 4 ft./1.2 m drop to tile over concrete per MIL-STD 810G at room temperature
Tumble Specifications 300 tumbles, 1.6 ft./0.5 m
Sealing IP65
Vibration 4G peak, 5Hz to 2kHz, 1 hour duration per axis
Thermal Shock -40°C to 70°C rapid transition 10 cycles: (1 cycle = 1.25 hours at -40°C and 1.25 hours at 70°C)
Electrostatic Discharge (ESD) +/-15kv Air, +/-8kv contact
+/-8kv charge body
Interactive Sensor Technology (IST)

Accelerometer (3-axis), ambient light sensor, proximity sensor
Data Capture

Scanning SE2100 1D/2D imager
SE4710 1D/2D imager
Rear Camera 8MP autofocus color camera with flash
Wireless WAN Data & Voice Communications

Radio Frequency Band

TC25 Americas:

  • LTE: B2, B4, B5, B12, B17
  • WCDMA: B2, B4, B5
  • GSM: 850,900,1800,1900

TC25 Rest Of World:

  • LTE: B1, B3, B7, B8, B20, B28
  • WCDMA: B1, B5, B8
  • GSM: 850,900,1800,1900

TC25 China:

  • LTE FDD: B1, B3
  • LTE TDD: B39, B40, B41
  • WCDMA: B1, B8
  • TDSCDMA B34, B39 (Diversity not supported)
  • GSM: 900,1800
Voice Communications

Workforce Connect Push-to-Talk (PTT) Express (Integrated complimentary software application for instant PTT walkie-talkie style calls inside the four walls).

Workforce Connect Push-to-Talk (PTT) Pro (Optional easy-to-deploy subscriptions service that provides instant PTT walkie-talkie style calls inside and outside the four walls).

GPS GPS with A-GPS (Glonass, BeiDou)
Wireless LAN

WLAN Radio 802.11a/b/g/n/ac/d/r/h/i IPv4, IPv6
Data Rates 2.4 GHz: 20 MHz, 40 MHz
5 GHz: 20 MHz, 40 MHz, 80 MHz
Operating Channels

2.4 GHz (channels 1-13; 1-11(US))
5 GHz (channels 36-48, 52-64, 100-144, 149-165)

Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption WPA/WPA2 (PSK & Enterprise 802.1x); EAP-TTLS; PEAPv0-MSCHAPv2; EAP-TLS
Certifications 802.11a/b/g/n; WPA; WPA2
Fast Roam 802.11r
Wireless PAN

Bluetooth Bluetooth 4.2 BLE

Subject to the terms of Zebra’s hardware warranty statement, the TC25 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty
Recommended Services

Zebra OneCareTM SV

*Workforce Connect PTT Express provides basic push-to-talk services between TC25 and other compatible Zebra mobile devices inside the four walls for no cost. Workforce Connect PTT Pro is a cost-effective subscription service that provides comprehensive push-to-talk and secure text messaging services between TC25 and other compatible Zebra mobile devices outside the four walls.

Full products details click the link TC25 Specification Sheet | Zebra

Mobility DNA Solutions

Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: https://developer.zebra.com/mobilitydna
