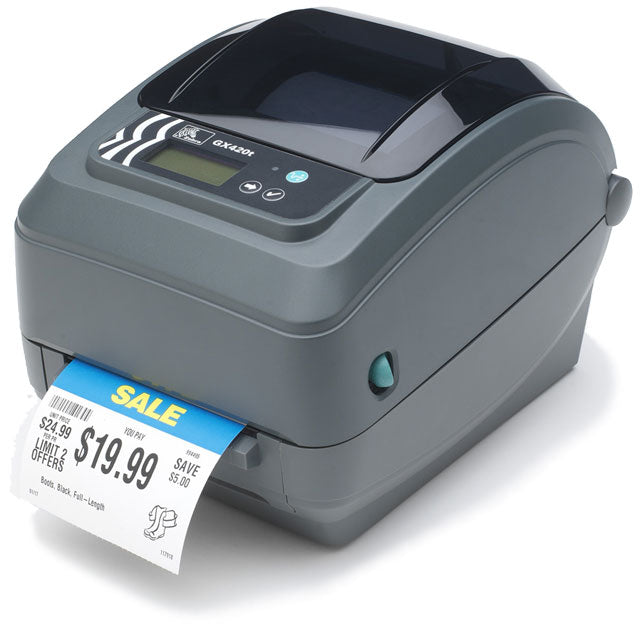

Zebra GX420t Direct Thermal/Thermal Transfer Printer Label Printer
Best in class speed and performance
Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
-
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 128
- Code 128-A
- Code 128-B
- Code 128-C
- Code 39
- Code 93
- EAN-8
- EAN-13
- EAN-14
- UPC-A
- UPC-E
- EAN With 2 or 5 Digit Extension
- EAN-8 With 2 or 5 Digit Extension
- EAN-13 With 2 or 5 Digit Extension
- UPC-A with 2 or 5 Digit Extension
- UPC-E with 2 or 5 Digit Extension
- German Post Code
- Industrial 2 of 5
- Interleaved 2 of 5
- Japan Postal
- LOGMARS
- MSI
- MSI-3
- Plessey
- POSTNET
- RSS
- Standard 2 of 5
- UCC/EAN 128
- Aztec Code
- Data Matrix
- QR Code
- Code 49
- Maxi Code
- Macro PDF-417
- Micro PDF-417
- PDF-417
- Codablock
- GS1 DataBar
- Code 128-Auto
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: G Series
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: GX420t
- Product Name: GX420t Label Printer
Physical Characteristics
- Height: 7.5"
- Width: 7.6"
- Depth: 10"
- Form Factor: Desktop
- Weight (Approximate): 4.60 lb
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Platform Supported: PC
-
Package Contents:
- GX420t Label Printer
- US Power Cords
- 6 feet USB Cable
- User Documentation
- GX420t Label Printer
- US Power Cords
- 6 feet USB Cable
- User Documentation
-
Certifications & Standards:
- FCC Part 15
- PFC
- Subpart 15
- VCCI
- C-Tick
- EN55022 Class-B
- EN6100-3-2
- EN6100-3-3
- EN55024
- CCC
- CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
- TUV NRTL
- IRAM
- NOM
- AAMI
Media Types & Handling
- Maximum Label Width: 4.25"
- Maximum Label Length: 39"
-
Media Type:
- Black Bar
- Black Mark
- Continuous Label
- Continuous Receipt
- Die-cut Label
- Direct Thermal Label
- Fanfold
- Gap
- Notched
- Perforated Label
- Receipt
- Roll Fed
- Tag
- Tag Stock
- Wristband
- Media Thickness: 7.50 mil
-
Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 1.50"
- Ribbon Core Size: 0.50"
- Maximum Roll Diameter: 5"
Fonts & Emulation
-
Language Emulation:
- EPL
- ZPL
- EPL2
- ZPL II
- XML
Power Description
-
Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: AC Supply
Memory
- Standard Memory: 8 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
| Brand | Zebra |
| Model | GX420t |
| Max Label Width | 4.25 |
| Included Features | ZPL2, EPL2, XML |
| Print Method | Thermal Transfer |
| Brand | Zebra |
| Label Core | 1 inch |
| Print Resolution | 203 dpi |
| Print Speed | 6 |
| Interface Options | Serial, USB, Ethernet |
| Printer Type | Desktop |
| Max Roll Outer Diameter | 5 |
| Maximum Print Width | 4.09 |
| Printer Mobility | Not Mobile |
