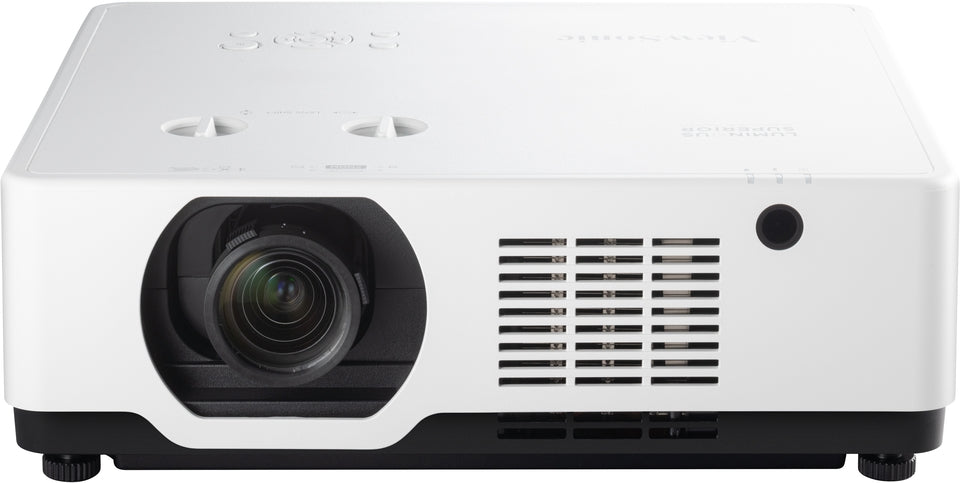

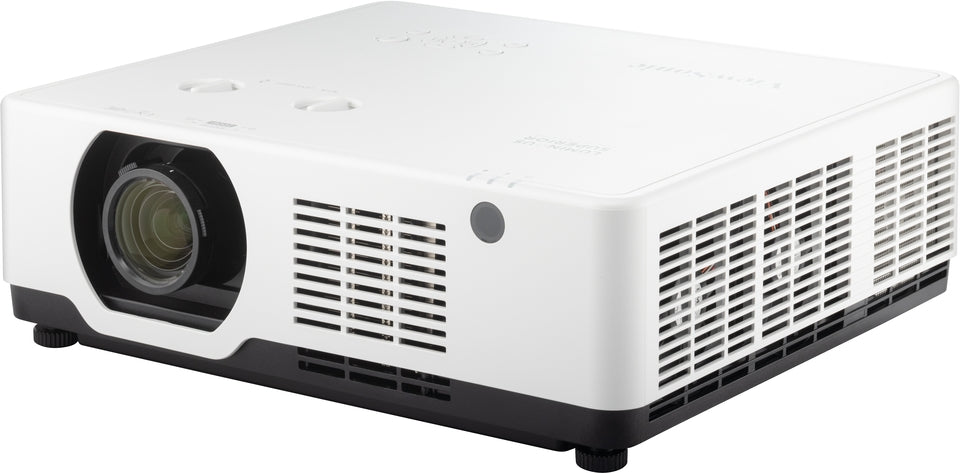

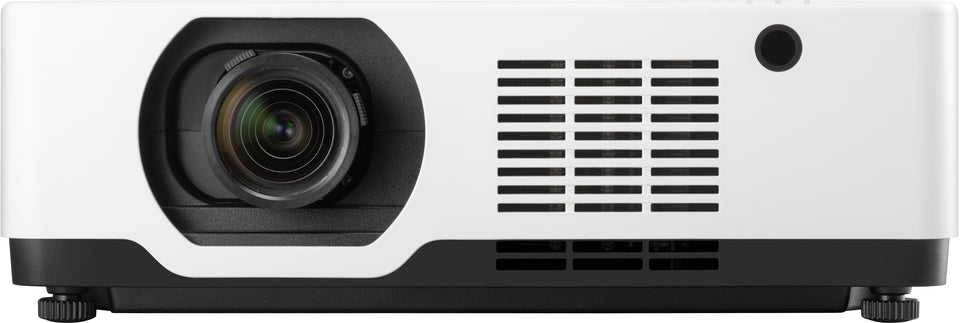

ViewSonic LSC601WU 6,000 ANSI Lumens WUXGA Laser Installation Projector

• 6,000 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
• Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
• 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
• Centralized LAN control for efficient management

OVERVIEW

The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Product link: ViewSonic LSC601WU 6,000 ANSI Lumens WUXGA Laser Installation Projector - ViewSonic Global

• Specification
  Projection System: 3LCD (3x0.64" with MLA)
  Native Resolution: 1920x1200
  Brightness: 6000 (ANSI Lumens)
  Brightness (Center Lumens): 6500
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=1.58-2.02, f=15.3-24.6mm
  Projection Offset: 0%+/-5%
  Throw Ratio: 1.08-1.76
  Optical Zoom: 1.6X
  Digital Zoom: 1.0x-4.0x
  Image Size: 30"-300"
  Throw Distance: 0.70-11.37m
  (100"@2.33m)
  Keystone: H:+/-30° , V:+/-30°
  Auto Keystone: +/- 30° (V)
  Lens Shift V. Range: +45%, 0%
  Lens Shift H. Range: +21%, -21%
  Audible Noise (Normal): 35dB
  Audible Noise (Eco) : 25dB
  Input Lag: 60ms
  Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-100KHz
  Vertical Scan Rate: 23-85Hz

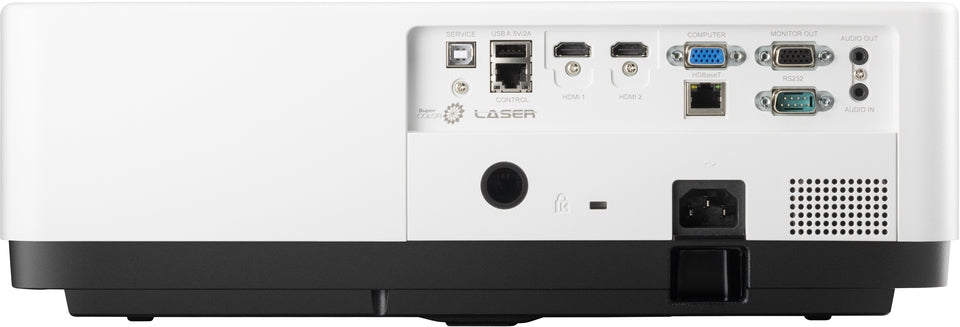

• Input
  Computer in (share with component): 1
  HDMI: 2
  (HDMI 1.4, HDCP 1.4)
  Audio-in (3.5mm): 1
  USB Type A: 1 (5V/2A)
  HDBaseT: 1

• Output
  Monitor out: 1
  Audio-out (3.5mm): 1
  Speaker: 16W
  USB Type A (Power): 1
  (USB2.0 - 5V/2A,
  share with USB A Input)


• Control
  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type B (Services): 1

• Others
  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 330W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 7.9kg (17.42 lbs)
  Gross Weight: 10.1kg (22.27 lbs)
  Dimensions (WxDxH) with Adjustment Foot: 405x358x137mm (15.9x14.1x5.4 in)
  Packing Dimensions: 510x498x260mm (20.1x19.6x10.2 in)
  OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

• Standard Accessory
  Power Cord: 1
  Remote Control: 1
  QSG: Yes
  Air Filter: Yes
  Warranty Card: Yes (CN Only)

• Optional Accessory
  Air Filter: RSPL
  Wall/Ceiling Mount: PJ-WMK-007
