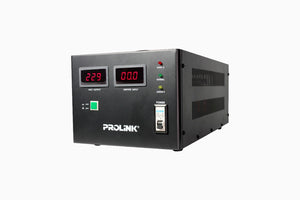

Prolink PVS1001AD 1KVA Servo Motor Controlled AVR with Digital Display

Prolink - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

GENERAL

Rating (VA)	1000
Nominal Power (W)	800
Dimension LxWxH (mm)	260 x 240 x 175
Weight (kg)	3.45

INPUT

Voltage	220VAC or 230VAC single phase
Voltage Range	130~270VAC
Frequency	50Hz / 60Hz

OUTPUT & EFFICIENCY

Voltage	110VAC or 230VAC single phase +/- 1~3%
Frequency	50Hz / 60Hz
Overall Efficiency	>90%

PROTECTION & OTHERS

Delay Time	3s
Full protection	Over-voltage, Under-voltage, Over-temp, Over-current protection
Response Time	< 1 sec (against 10% input voltage variation)
Insulation Resistance	> 5MΩ
Operating Temperature	-10~40°C
Humidity	0~90 % RH (non-condensing)
Noise Level	<50dB @1m

FRONT / REAL PANEL

On/Off Switch Output Voltage Display Input Fuse Push button switch for Output Voltage (110/220V) N/A AC Input Cable Grounding Terminal AC Output Sockets
