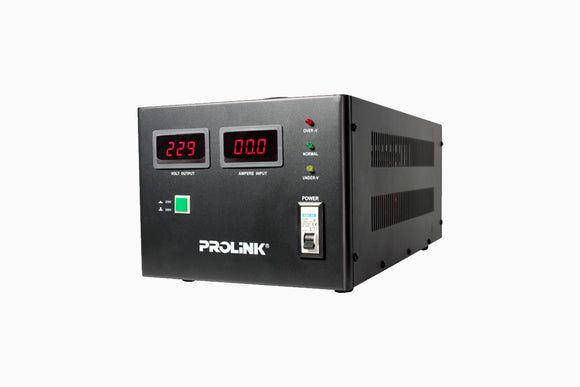

Prolink PVS10001CD 10KVA Servo Motor Controlled  AVR with Digital Display

Prolink PVS10001CD 10KVA Servo Motor Controlled AVR with Digital Display

  • ₱23,150.00
    Unit price per
Shipping calculated at checkout.


GENERAL

Rating (VA) 10000
Nominal Power (W) 8000
Dimension LxWxH (mm) 503 x 277 x 243
Weight (kg) 29.6

INPUT

Voltage 220VAC or 230VAC single phase
Voltage Range 130~270VAC
Frequency  50Hz / 60Hz

OUTPUT & EFFICIENCY

Voltage 220VAC or 230VAC single phase +/- 1~3%
Frequency 50Hz / 60Hz
Overall Efficiency >90%

PROTECTION & OTHERS

Delay Time 3s
Full protection Over-voltage, Under-voltage, Over-temp, Over-current protection
Response Time < 1 sec (against 10% input voltage variation)
Insulation Resistance > 5MΩ
Operating Temperature -10~40°C
Humidity 0~90 % RH (non-condensing)
Noise Level <55dB @1m

FRONT / REAL PANEL

  1. On/Off Switch
  2. Output Voltage Display
  3. N/A
  4. Push button switch for Output Voltage (220/230V)
  5. Input Current Display
  6. AC Input Terminal
  7. Grounding Terminal
  8. AC Output Terminal
  9. Cooling Fan
