Panasonic TH-75SQ1W 75" 4K IPS / Edge LED LCD Display 3840 x 2160

Panasonic TH-75SQ1W 75" 4K IPS / Edge LED LCD Display 3840 x 2160

Regular price ₱405,000.00 PHP
Regular price Sale price ₱405,000.00 PHP
Sale Sold out
Shipping calculated at checkout.

Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

Screen Size (Diagonal)

75-inch (1892.7 mm / 74.5 inch)

Panel type / Backlight

IPS / Edge LED

Aspect ratio

16:9

Effective Display Area (W x H)

1649.6 mm / 927.9 mm (64.94" / 36.53")

Resolution (H x V)

3840 x 2160

Brightness (typ)

500 cd/m2

Contrast Ratio (typ)

1200:1

Dynamic Contrast Ratio

50000:1

Max. Display Colors

Approx. 1.07 Billion

Response Time (typ)

8.0 ms (G to G)

Viewing Angle (Horizontal / Vertical)

178°/ 178° (CR≧10)

Panel Life Time*1 (typ)

Approx. 50000 hours

Panel Surface Treatment

Anti glare type (Haze 28%)

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

CONNECTION TERMINAL

HDMI IN

HDMI Type A Connector x 2 AUDIO: Linear PCM (Sampling frequency:48 kHz/44.1 kHz/32 kHz) (Compatible with HDCP 2.2)

Display Port Input

        Display Port x 1                                                                                    AUDIO: Linear PCM (Sampling frequency:48 kHz/44.1 kHz/32 kHz)

(Compatible with HDCP 2.2)

Display Port Output

Display Port x 1 (Compatible with HDCP 1.4)

DVI-D IN

DVI-D 24-pin x 1 (Compatible with HDCP 1.1) Compliance with DVI Revision 1.0

PC IN

           Mini D-Sub 15-pin (DDC2B) x 1                                           Y/G

PB/CB/B

PR/CR/R HD/VD

: with sync 1.0 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω)

: HD/VD TTL (high impedance)

SERIAL IN

D-sub 9-pin x 1, RS-232C Compatible



IR IN / IR OUT

Stereo Mini Jack (M3) x 1 / x 1



AUDIO IN

AUDIO OUT

          Stereo Mini Jack (M3) x 1                                                   0.5 V [rms]

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

LAN

RJ45 x 1 compatible with PJLinkTM RJ45 10BASE10-T/100BASE-TX

DIGITAL LINK / LAN

RJ45 x 1 100BASE-TX, compatible with Long reach mode (Compatible with HDCP 2.2)

USB

USB Connector (Type A) x 2, DC 5 V/2A, DC 5 V/1A (USB 3.0 is supported)

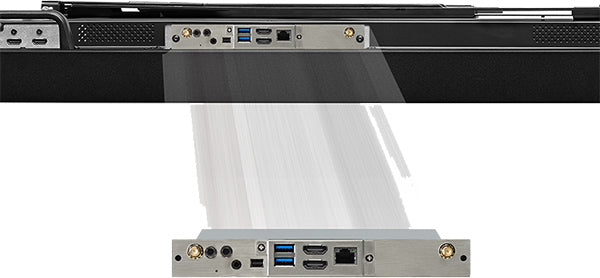

SLOT

Intel® SDM specification

Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A

AUDIO

Built in Speaker

20 W [10 W + 10 W]

External Speaker Out

30 W [15 W + 15 W] 10%THD

ELECTRICAL

Power Requirements

AC 110 - 240 V 50 Hz / 60 Hz

Power Consumption

385 W

On Mode Average Power Consumption*

238 W

Power Off Condition

approx. 0.3 W

Stand-by Condition

approx. 0.5 W

Apparent power

393 W

*Based on IEC 62087 Ed.2 measurement method

MECHANICAL

Dimension (W x H x D) including handles

                                              not including handles

1681 mm x 959 mm x 73 mm (W 66.15" x H 37.75" x D 2.87")

1681 mm x 959 mm x 66 mm (W 66.15" x H 37.75" x D 2.58")

Weight

approx. 56.0 kg / 123.5 lbs

Bezel Color

Black

Bezel Width

T/B/L/R: 14.8 mm (T/B/L/R: 0.58")

Carton Dimensions (W x H x D)

1832 x 1283 x 280 mm / 72.2 x 50.6 x 11.1"

Gross Weight

71 kg / 156.6 lbs

Cabinet Color / Material

Bezel, Back cover : Metal

Pitch for Wall-Hanging

VESA Compliant W 600 x H 400 mm (Installed by: M6 screws / Screw hole depth 10 mm)

INSTALLATION

Orientation

Landscape / Portrait (Rotation: Up to 45 degrees for each right and left with the display installed landscape)

Tilting Angle

Landscape : 0 - 45 degrees forward / backward Portrait : 0 - 20 degrees forward / backward

*Please contact your sales representative with regard to the tilt angle before installation.

*When installing the Display vertically, be sure that the Power Indicator comes to the upper side

ENVIRONMENTAL

Operating Environment

Temperature

: 0 ℃ to 40 ℃ (32 °F to 104 °F)*1 : 0 ℃ to 35 ℃ (32 °F to 95 °F)*2

Humidity

: 20% to 80% (No condensation)

Altitude

: 0 to 2800 m (0 to 9186 ft)

Storage Environment

Temperature

: -20 ℃ to 60 ℃ (-4 °F to 140 °F)

Humidity

: 20% to 80% (No condensation)
