Panasonic TH-49SQ1W 49" 4K IPS / Edge LED LCD Display 3840 x 2160 Black
Panasonic TH-49SQ1W 49" 4K IPS / Edge LED LCD Display 3840 x 2160 Black
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
Screen Size (Diagonal) |
49-inch (1232.0 mm / 48.5inch) |
Panel type / Backlight |
IPS / Edge LED |
Aspect ratio |
16:9 |
Effective Display Area (W x H) |
42.27" / 23.77" (1073.8 mm / 604.0 mm) |
Resolution (H x V) |
3840 x 2160 |
Brightness (typ) |
500 cd/m2 |
Contrast Ratio (typ) |
1100:1 |
Dynamic Contrast Ratio |
50000:1 |
Max. Display Colors |
Approx. 1.07 Billion |
Response Time (typ) |
8.0 ms (G to G) |
Viewing Angle (Horizontal / Vertical) |
178°/ 178° (CR≧10) |
Panel Life Time*1 (typ) |
Approx. 50000 hours |
Panel Surface Treatment |
Anti glare type (Haze 28%) |
*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

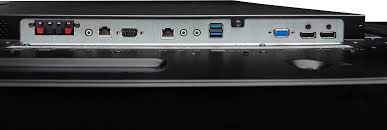

CONNECTION TERMINAL
HDMI IN |
HDMI Type A Connector x 2 (Compatible with HDCP 2.2) |
AUDIO: Linear PCM (Sampling frequency:48 kHz/44.1 kHz/32 kHz) |
|
Display Port Input |
Display Port x 1 (Compatible with HDCP 2.2) |
AUDIO: Linear PCM (Sampling frequency:48 kHz/44.1 kHz/32 kHz) |
|
Display Port Output |
Display Port x 1 (Compatible with HDCP 1.4)* |
||
DVI-D IN |
DVI-D 24-pin x 1 Compliance with DVI Revision 1.0 Compatible with HDCP 1.1 |
||
PC IN |
Mini D-Sub 15-pin (DDC2B) x 1 Y/G PB/CB/B PR/CR/R HD/VD |
: with sync 1.0 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω) : HD/VD TTL (high impedance) |
|
SERIAL IN |
D-sub 9-pin x 1, RS-232C Compatible |
|
|
IR IN / IR OUT |
Stereo Mini Jack (M3) x 1 / x 1 |
|
|
AUDIO IN |
Stereo Mini Jack (M3) x 2 0.5 V [rms] |
||
AUDIO OUT |
Stereo Mini Jack (M3) x 1 0.5 V [rms] Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load) |
||
LAN |
RJ45 x 1 compatible with PJLinkTM RJ45 10BASE-T/100BASE-TX |
||
DIGITAL LINK / LAN |
RJ45 x 1 compatible with PJLinkTM 100BASE-TX, compatible with Long reach mode (HDCP 2.2) |
||
USB |
USB Connector (Type A) x 2, DC 5 V/2A, DC 5 V/1A (USB 3.0 is supported) |
||
SLOT |
Intel® SDM specification Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A |
||
AUDIO
Built in Speaker |
20 W [10 W +10 W] |
External Speaker Out |
30 W [15 W +15 W] 10%THD |
Dimension (W x H x D) including handles not including handles |
1105 mm x 637 mm x 74 mm (W 43.48" x H 25.08" x D 2.91") |
1105 mm x 637 mm x 66 mm (W 43.48" x H 25.08" x D 2.58") |
|
Weight |
21 kg / 46.3 lbs |
Bezel Color |
Black |
Bezel Width |
T/B: 14.2 mm, L/R: 12.9 mm (T/B: 0.56", L/R: 0.51") |
Carton Dimensions (W x H x D) |
1248 mm x 800 mm x 185 mm (W 49.2" x H 31.5" x D 7.3") |
Gross Weight |
27 kg / 59.6 lbs |
Cabinet Color / Material |
Front, Back : Metal Side : Plastic |
Pitch for Wall-Hanging |
VESA Compliant W 400 x H 400 mm (Installed by: M6 screws / Screw hole depth 11 mm) |
INSTALLATION
Orientation |
Landscape / Portrait |
Tilting Angle |
Landscape : 0 - 45 degrees forward / backward Portrait : 0 - 45 degrees forward / backward |
*Please contact your sales representative with regard to the tilt angle before installation.
*When installing the Display vertically, be sure that the Power Indicator comes to the upper side
ENVIRONMENTAL
Operating Environment |
Temperature |
: 0℃ to 40℃ (32°F to 104°F)*1 : 0℃ to 35℃ (32°F to 95°F)*2 |
Humidity |
: 20% to 80% (No condensation) |
|
Altitude |
: 0 to 2800 m (0 to 9186 ft) |
|
Storage Environment |
Temperature |
: -20℃ to 60℃ (-4°F to 140°F) |
Humidity |
: 20% to 80% (No condensation) |
