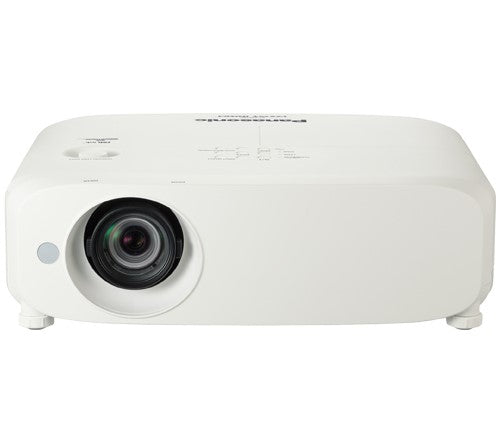

Panasonic PT-VZ580 5000 Lumens WUXGA LCD Projector

Panasonic PT-VZ580 5000 Lumens WUXGA LCD Projector

Regular price ₱145,000.00 PHP
Regular price Sale price ₱145,000.00 PHP
Sale Sold out
Shipping calculated at checkout.

Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

Power supply AC 120 V, 50/60 Hz (North America), AC 110 V, 60 Hz (Taiwan), AC 100−240 V, 50/60 Hz (other countries)
Power consumption 400 W [North America], 410 W [other countries]
Standby power consumption
Standby Mode (ECO) *1 0.3 W [North America, Taiwan], 0.5 W [other countries]
Standby Mode (Normal) 8 W
LCD panel
Panel size 0.64 inches (1.63 cm) (16:10 aspect ratio)
Display method Transparent LCD panel (× 3, R/G/B)
Pixels 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels
Lens 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus F 1.60–2.12, f 15.30–24.64 mm
Lamp 280 W UHM lamp × 1
Screen size (diagonal) 30−300 inches
Brightness *2 5,000 lm (input signal: PC, lamp power: Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF)
Contrast *2 16,000:1 (all white/all black) (input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF)
Resolution 1920 x 1200 pixels
Supported RGB signal XGA–WUXGA
Supported video signal NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i
Optical axis shift (from center of screen)
Vertical 0 ‒ +44 % (manual)
U/D ratio 17:1 (when on top end)
Keystone correction range Vertical: maximum ±25° (auto/manual, input: WUXGA),
Horizontal: maximum ±30° (manual, input: WUXGA)
Installation Front ceiling / Front desk / Rear ceiling / Rear desk
Built-in speaker 4.0 cm (1 1/16″ ) round shape × 1, output power: 10 W (monaural)
Operation noise*2 37 dB (lamp power: Normal), 35 dB (lamp power: ECO1), 29 dB (lamp power: ECO2)
Cabinet materials Molded plastic
Dimensions (W x H x D) 389 × 125*4 × 332 mm (15 5/16″ × 4 29/32″ *4 × 13 1/16″ )
Weight*3 Approximately 4.8 kg (10.6 lbs)
Operating environment Operating temperature: 0−40 °C (32−104 °F)*5 (altitude: less than 1,200 m [3,937 ft]),
0−30 °C (32−86 °F) (altitude: 1,200−2,700 m [3,937−8,858 ft] ), Operating humidity: 20−80 % (no condensation)
Supplied accessories Wireless remote control unit × 1, Power cord with power cord holder × 1 (× 2 for UK and Asia),
Software CD-ROM × 1 (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software), Batteries (AAA type × 2), RGB cable × 1, Lens cap × 1

Built-in wireless LAN -
