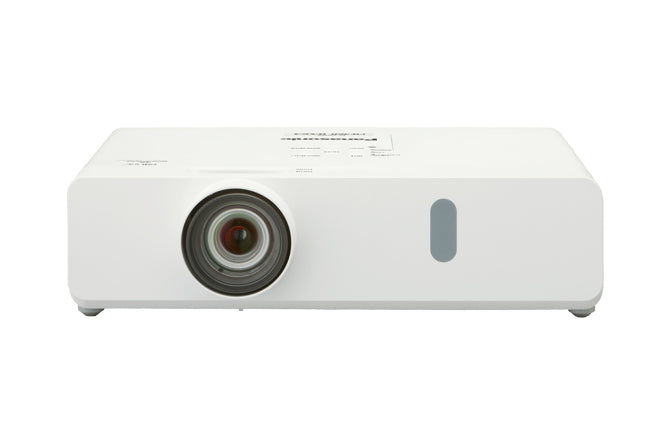

Panasonic PT-VX430 4500 Lumens XGA LCD Projector
Panasonic PT-VX430 4500 Lumens XGA LCD Projector
Regular price
₱64,000.00 PHP
Regular price
Sale price
₱64,000.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
| LCD panel | ||
| Panel size | 16.0 mm (0.63 in) (4:3 aspect ratio) | |
| Display method | Transparent LCD panel (x 3, R/G/B) | |
| Pixels | 786,432 (1024 x 768) pixels | |
| Lens | Manual zoom (1.6x) Manual focus, F 1.60–1.90, f 15.31–24.64 mm | |
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 4:3 aspect ratio | |
| Resolution | 1024 x 768 pixels | |
| (Input signals that exceed this resolution will be converted to 1024 x 768 pixels) | ||
| Brightness*1 |
4,500 lm (input signal: PC, lamp power: NORMAL, |
|
|
picture mode: Dynamic, Iris: Off, |
||
| Daylight View: Off, Auto Power Save: Off) | ||
| Lamp | 240 W x 1 lamp | |
| Lamp replacement cycle | NORMAL: 5,000 hours / ECO: 7,000 hours | |
| Center-to-corner uniformity*1 | 85% | |
| Contrast*1 | 20,000:1 (Full On/Off) | |
| (input signal: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: On, Daylight View: Off, Auto Power Save: Off) | ||
| Optical axis shift | 9:1 (fixed) | |
| Keystone correction range | Vertical: ±35° (±30° when using AUTO) Horizontal: ±35° | |
| Installation | Ceiling/floor, front/rear | |
| Terminals | ||
| HDMI 1/2 IN | HDMI 19-pin x 2 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) | |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB, YPBPR, YCBCR, Y/C) | |
| COMPUTER 2 IN/1 OUT | D-sub HD 15-pin (female) x 1 (RGB, YPBPR, YCBCR), (input/output selectable using on-screen menu) | |
| VIDEO IN | Pin jack x 1 (Composite VIDEO) | |
| AUDIO IN 1 | M3 Stereo Mini Jack x 1 (L-R x 1) | |
| AUDIO IN 2 | M3 Stereo Mini Jack x 1 (L-R x 1) | |
| AUDIO IN 3 | Pin jack x 2 (L, R x 1) | |
| VARIABLE AUDIO OUT | M3 Stereo Mini Jack x 1 (L-R x 1) for output | |
| LAN | RJ-45 x 1 (for network connection, compatible with PJLink™ [Class 1], 10BASE-T/100BASE-TX) | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| USB A | USB-Type A (for Memory Viewer / Wireless Module [Optional: ET-WML100]) x 1 | |
| USB B | USB-Type B (for USB Display) x 1 | |
| Power supply | AC 100–240 V, 50 Hz/60 Hz | |
| Power consumption | 320 W (0.5 W when Standby mode set to ECO*2, | |
| 1.0 W when Standby mode set to Network, | ||
| 8.0 W when Standby mode set to NORMAL) | ||
| Built-in speaker | 4.0 cm (1 9/16˝) round shape x 1, output power: 10 W (monaural) | |
| Operating noise*1 | 37 dB (lamp power: NORMAL), 29 dB (lamp power: ECO) | |
| Cabinet materials | Molded plastic | |
| Dimensions (W x H x D) | 352 x 98*3 x 279*4 mm (13 27/32˝ x 3 27/32˝*3 x 10 31/32˝*4) | |
| Weight*5 | Approx. 3.3 kg (7.28 lbs) | |
| Operating environment | Operating temperature: 0–40 °C [32–104 °F] (less than 1,400 m [4,593 ft] above sea level, High Altitude Mode: OFF); | |
| 0–30 °C [32–86 °F] (1,400 m [4,593 ft] to 2,000 m [6,562 ft], High Altitude Mode: 1); | ||
| 0–30 °C [32–86 °F] (2,000 m [6,562 ft] to 2,700 m [8,858 ft], High Altitude Mode: 2) | ||
| Operating humidity: 20–80 % (no condensation) | ||
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light for Windows®, | |
| Wireless Projector Apps for iOS / Android™ | ||
