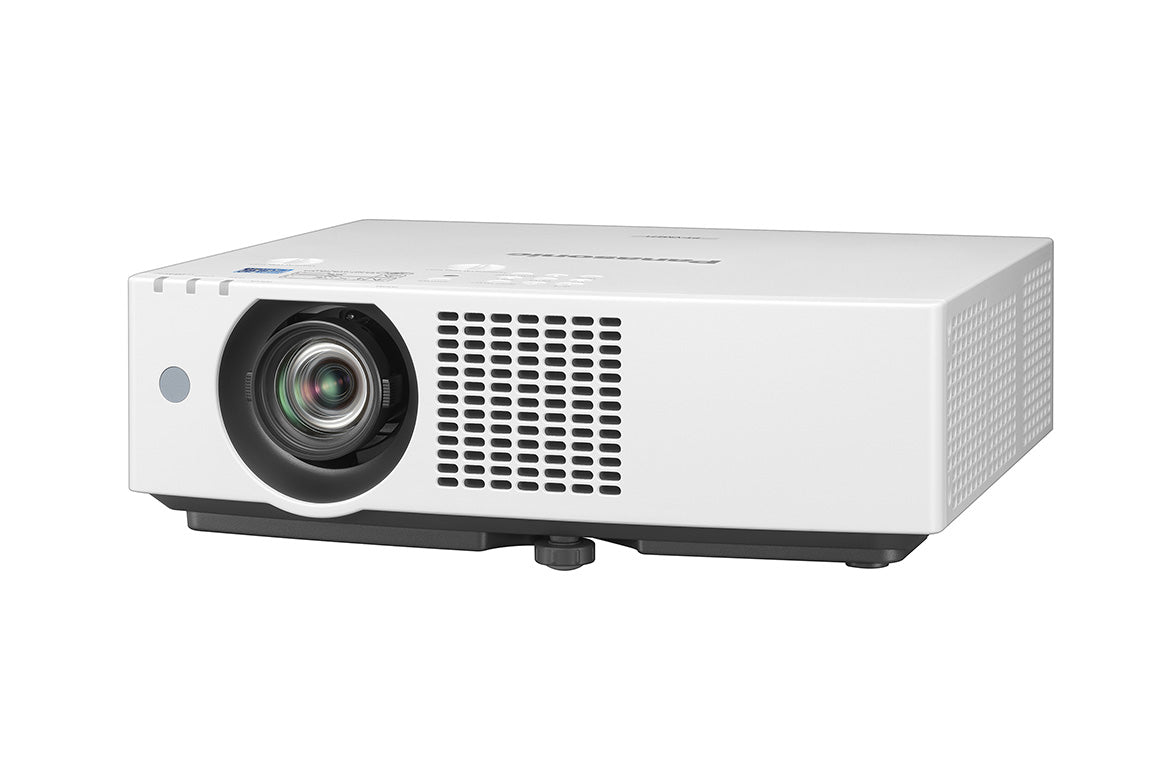

Panasonic PT-VMZ71 7000 Lumenes WUXGA LCD Laser Projector
Watch on youtube : (1) "PT-VMZ71 series" 7,000lm bright and compact LCD projector for classroom and meeting room - YouTube
| Projector type | LCD projectors | |
|---|---|---|
| LCD panel | ||
| Size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) | |
| Display system | Transparent LCD panel (x 3, R/G/B) | |
| Drive method | Active matrix | |
| Pixels | 2,304,000 (1920 x 1200) pixels | |
| Light source | Laser diodes | |
| Light output1, 2 | 7,000 lm | |
| Time until light output declines to 50 %3 |
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) | |
| Resolution | WUXGA (1920 x 1200 pixels) | |
| Contrast ratio1 | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
|
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 16:10 aspect ratio | |
| Center-to-corner zone ratio1 | 85 % | |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm | |
| Digital Zoom Extender4 | Throw Ratio 1.09–2.21:15 (Corresponding value. When used together with optical zoom.) | |
| Lens shift (from center of screen) |
Vertical +44 %, Horizontal ±20 % | |
| Keystone correction range | Vertical: ±25 °, Horizontal: ±35 ° | |
| Installation | Ceiling/floor, front/rear, free 360-degree installation | |
| Terminals | ||
| HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p6 signal input), CEC supported7 | |
| COMPUTER 1/2 IN | D-sub 15-pin (female) x 2 (RGB/YPBPR/YCBCR) | |
| AUDIO 1/2 IN | M3 stereo mini-jack x 2 | |
| VARIABLE AUDIO OUT | M3 stereo mini-jack x 1 | |
| SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) | |
| LAN/DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p6 signal input) |
|
| LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] | |
| USB (VIEWER/WIRELESS/ DC OUT) |
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A8) |
|
| Protocol versions | IPv4, IPv69 | |
| Power supply | AC 100 V–240 V, 50/60 Hz | |
| Power consumption10 | ||
| Maximum power consumption | 420 W (4.5–1.9 A) (455 VA) (Power consumption is 410 W at 200–240 V) |
|
| On-mode power consumption (Light Power) |
|
|
| Built-in speaker | 10 W monaural | |
| Cabinet materials | Molded plastic | |
| Filter11 | Included (Estimated maintenance time: approx. 20,000 hours) | |
| Operation noise1 | 38 dB (NORMAL/ECO), 28 dB (QUIET) | |
| Dimensions (W x H x D) |
399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) 399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position) |
|
| Weight with supplied lens12 | Approx. 7.0 kg (15.43 lbs) | |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)13, 14, Operating humidity: 20–80 % (no condensation) | |
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®15, Wireless Projector App for iOS/Android™16 | |
