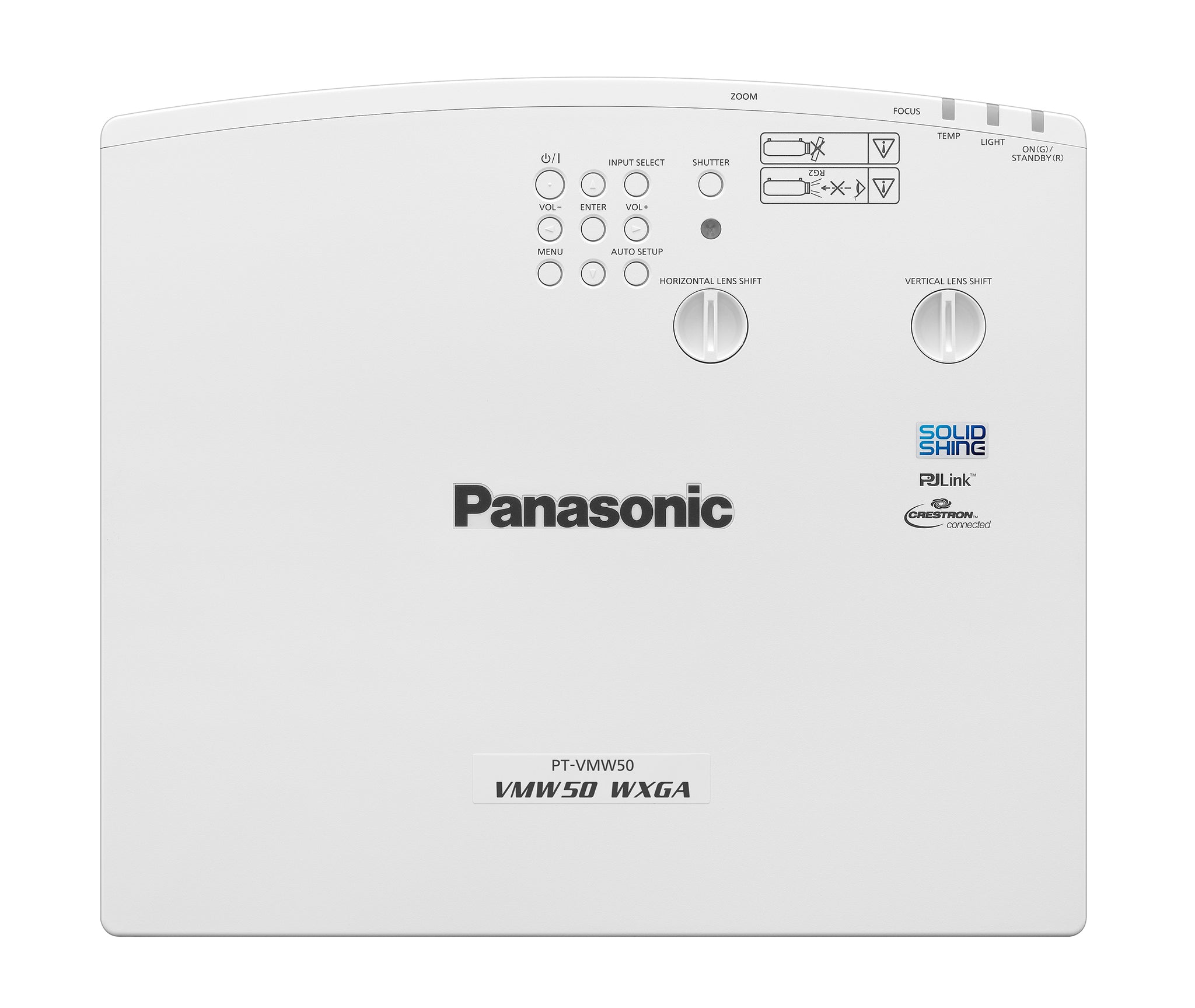

Panasonic PT-VMW50 Lumens WXGA 20000 Hrs LCD Laser Projector
Panasonic PT-VMW50 Lumens WXGA 20000 Hrs LCD Laser Projector
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
|
Projector type |
LCD projector |
|
|
LCD panel |
|
|
|
Panel size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
|
|
Display method |
Transparent LCD panel (x 3, R/G/B) |
|
|
Drive method |
Active matrix method |
|
|
Pixels |
1,024,000 (1280x800) x 3, total of 3,072,000 pixels |
|
|
Light source |
Laser diodes |
|
|
Light output |
5000 lm |
|
|
Time until light output declines to 50 %*2 |
20,000 hours (NORMAL) |
|
|
Resolution |
1280x800 |
|
|
Contrast ratio*1 |
3,000,000:1 (All white/all black) |
|
|
Screen size (diagonal) |
0.76–7.62 m (30–300 in), 16:10 aspect ratio |
|
|
Center-to-corner zone ratio*1 |
85 % |
|
|
Lens |
1.6 Manual zoom (Throw ratio: 1.09-1.77:1) Manual focus lens, F =1.60-2.12, f = 15.30-24.64 mm |
|
| Lens Shift | ||
| Vertical(from center of screen) | +44 %,0% (Manual) | |
| Horizontal(from center of screen) | +20 %,-20% (Manual) | |
|
Keystone correction range |
Vertical, Horizontal: ±35 ° |
|
|
Installation |
Horizontal/Vertical, free 360-degree installation |
|
|
Terminals |
|
|
|
HDMI 1 IN/HDMI 2 IN |
HDMI 19-pin x 2 (Compatible with HDCP, Deep Color 4K/30p signal input), Audio Signal: Linear PCM (Sampling Frequency: 48 kHz/44.1 kHz/32 kHz) |
|
|
COMPUTER 1 IN |
D-sub 15-pin (female) x 1 [RGB/YPBPR/YC] |
|
|
COMPUTER 2 IN/1 OUT |
D-sub 15-pin (female) x 1 [RGB/YPBPR] |
|
|
VIDEO IN |
Pin jack x 1 |
|
|
AUDIO 1/2 IN |
M3 Stereo mini-jack x 2 |
|
|
AUDIO 3 IN |
Pin jack (L,R) x1 |
|
|
VARIABLE AUDIO OUT |
M3 (L,R) x 1 (Variable) |
|
|
LAN |
RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible |
|
|
SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
|
|
USB A |
USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A]) |
|
|
Power supply |
AC 100–240 V, 50/60 Hz |
|
|
Power consumption |
360 W |
|
|
Cabinet materials |
Molded plastic |
|
|
Built-in speaker |
10 W monaural |
|
|
Operation noise*1 |
Normal: 37 dB, Quiet: 27 dB |
|
|
Dimensions (W x H x D) |
399 mm x 115 mm x 348 mm (15 22/32˝ x 4 17/32˝ x 13 11/16˝ ) 399 mm x 133 mm x 348 mm (15 22/32˝ x 5 1/4˝ x 13 11/16˝ ) |
|
|
Weight |
Approx. 7.2 kg (15.87 lbs) |
|
|
Operating environment |
Operating temperature: 0–45 °C (32–113 °F) Operating humidity: 20–80 % (No condensation) |
|
|
Applicable software |
Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*7, Wireless Projector for iOS/Android |
|
