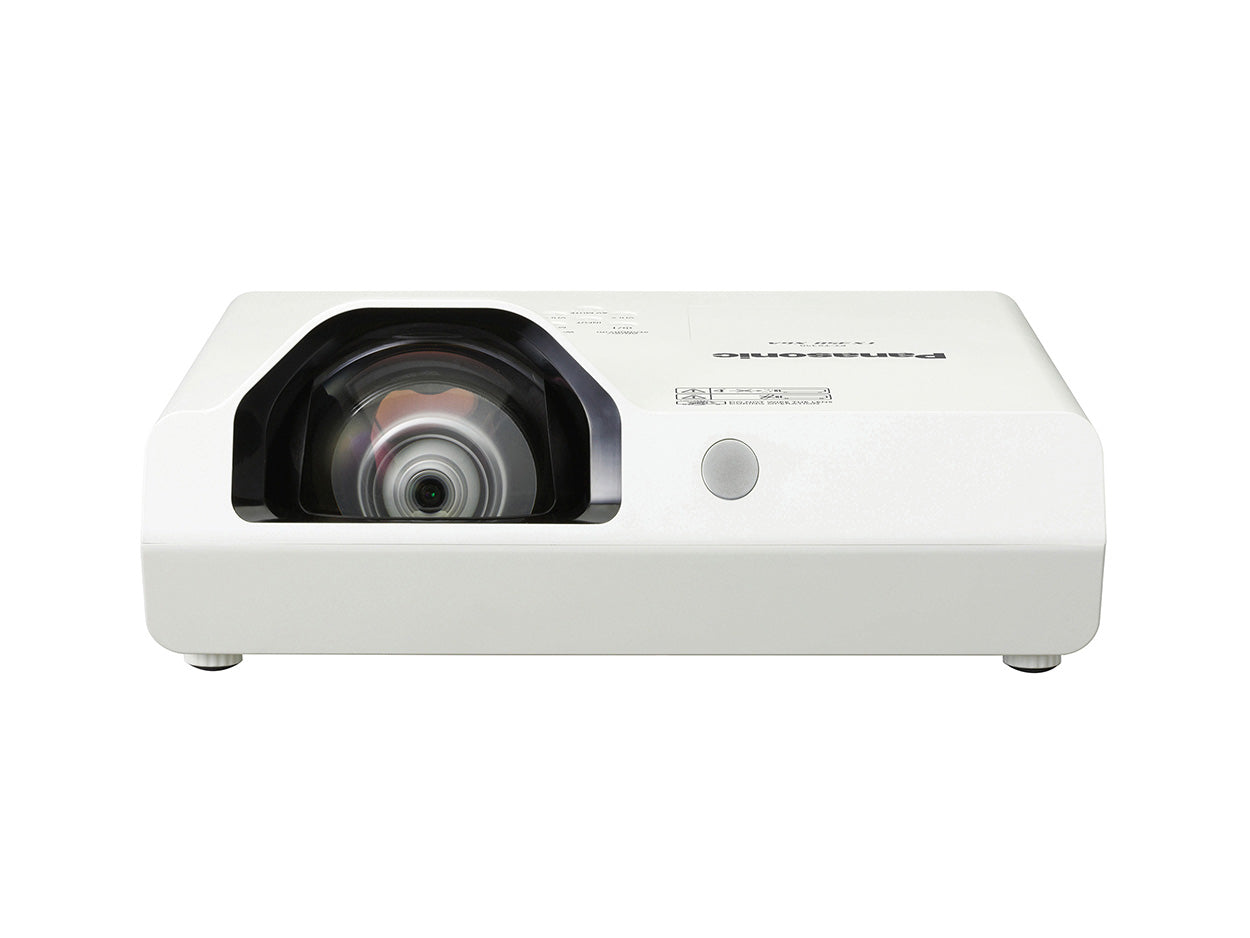

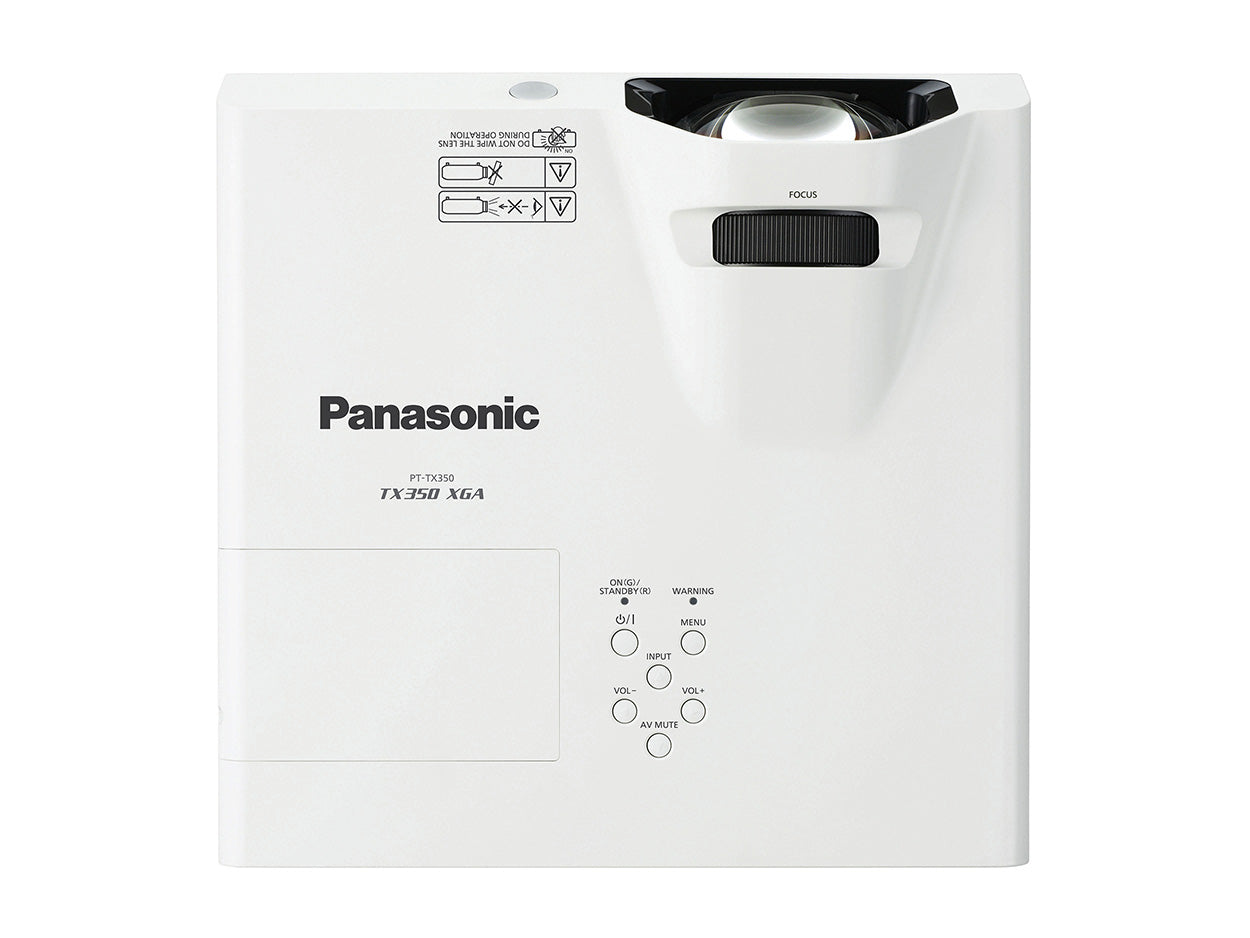

PANASONIC PT-TX350 3LCD 3200lm XGA Short Throw Projector
PANASONIC PT-TX350 3LCD 3200lm XGA Short Throw Projector
Regular price
₱53,500.00 PHP
Regular price
Sale price
₱53,500.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
| Projector type | LCD projector |
|---|---|
| LCD panel | |
| Panel size | 16.0 mm (0.63 in) diagonal (4:3 aspect ratio) |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Drive method | Active matrix method |
| Number of pixels | 786,432 (1024 x 768 pixels) x 3 |
| Light source | 230 W x 1 lamp |
| Light output*1 | 3,200 lm |
| Lamp replacement cycle*2 | Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h |
| Filter replacement cycle | Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h |
| Resolution | 1024 x 768 pixels |
| Contrast ratio*1 | 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal) |
| Screen size (diagonal) | 1.27–2.54 m (50–100 in), 4:3 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % |
| Lens | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm, throw ratio: 0.46:1 (Projection distance: 0.75 m [2.46 ft] for 80-inch image) |
| Keystone correction range | Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual) |
| Installation | Ceiling/desk, front/rear |
| Terminals | |
| HDMI 1 IN/HDMI 2 IN | HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC] |
| COMPUTER 2 IN/1 OUT | D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching) |
| VIDEO IN | Pin jack x 1 |
| AUDIO IN 1 | M3 (L,R) x 1 |
| AUDIO IN 2 | Pin jack x 2 (L,R) |
| AUDIO OUT | M3 (L,R) x 1 (Variable) |
| LAN | RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compatible) |
| USB | USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A]) |
| Mini USB | — |
| Power supply | AC 100–240 V, 50/60 Hz |
| Power consumption | 300 W |
| Cabinet materials | Molded plastic |
| Built-in speaker | 10 W monaural |
| Operation noise*1 | Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB |
| Dimensions (W x H x D) | 335 x 134.1*4 x 329 mm (13 3/16˝ x 5 9/32˝*4 x 12 15/16˝ ) |
| Weight*5 | Approx. 3.9 kg (8.6 lbs) |
| Operating environment | Operating temperature*6: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation) |
| Applicable software | Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*7, Wireless Projector for iOS/Android™*8 |
