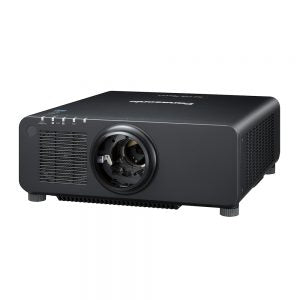

Panasonic PT-RZ690LB 1920x1200 6000 Lumens WUXGA 20000 Hrs 1-Chip Laser Projector w/o Lens

Panasonic PT-RZ690LB 1920x1200 6000 Lumens WUXGA 20000 Hrs 1-Chip Laser Projector w/o Lens

Regular price ₱502,000.00 PHP
Regular price Sale price ₱502,000.00 PHP
Sale Sold out
Shipping calculated at checkout.

Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

Projector type

1-Chip DLP™ Projectors

Power supply

AC 100–240 V, 50/60 Hz

Power consumption

565 W (5.9-2.4 A)

Brightness*1 6,000 lm

DLP™ chip


Panel size

17.0 mm (0.67 in) diagonal (16:10 aspect ratio)

Display method

DLP™ chip x 1, DLP™ projection system

Pixels

2,304,000 (1920 x 1200 pixels)

Lens

Optional powered zoom/focus lenses

Light source

Laser diodes

Resolution

WUXGA (1920 x 1200 pixels)

CENTER-TO-CORNER ZONE RATIO*1 90 %

CONTRAST Ratio*1

10,000:1 (Full On/Full Off, Dynamic Contrast [3])

Screen size (diagonal)

1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with ET-DLE055, 2.54-8.89 m (100-350 in) with ET-DLE035, 2.54-10.16 m (100-400 in) with ET-DLE020, 16:10 aspect ratio

Lens Shift



Vertical(From the origin point of the lens mounter) +50 %, -16 %(powered) +40 %, -16 % with ET-DLE060
 Horizontal(From the origin point of the lens mounter) +30 %, -10 % (powered) +10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085
Keystone correction range Vertical: ±40 °, Horizontal: ±15 °
Installation Ceiling/floor, front/rear, free 360-degree installation
Operating noise*1 35 dB [Normal]
Time until light output declines to 50%*3 20,000 hours
Cabinet Materials Molded plastic
Dimensions (W x H x D)  498 x 200*7 x 538 mm (19-19/32 x 7-7/8*7 x 21-3/16 in)
Operating Environment Operating temperature: 0 °C- 45 °C (32 °F -113 °F)*7, operating humidity: 20 %-80 % (no condensation)
Applicable software/application Logo Transfer Software (for Windows) Multi Monitoring & Control Software (for Windows) Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit) (for Windows) Smart Projector Control (for iOS/Android™)

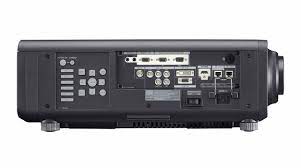

Terminals
SDI IN BNC x 1
HDMI IN HDMI 19-pin x 1
DVI-D IN DVI-D 24pin x 1
RGB1 IN RGB x 1 (BNC x 5)
RGB2 IN D-sub 15-pin (female) x 1
SERIAL/MULTI PROJECTOR SYNC IN D-sub 9-pin (female) x 1
SERIAL/MULTI PROJECTOR SYNC OUT D-sub 9-pin (male) x 1
REMOTE 1 IN/Out M3 x 1
Remote 2 In D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color,4K/60p*5 *6 signal input)
