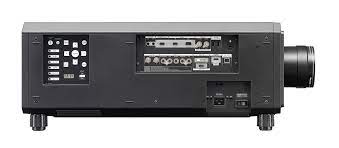

Panasonic PT-RS20KE 20000 Lumens SXGA 20000 Hrs Laser Projector without lens

Panasonic PT-RS20KE 20000 Lumens SXGA 20000 Hrs Laser Projector without lens

₱3,080,000.00 PHP
₱3,080,000.00 PHP
Sale Sold out
Shipping calculated at checkout.

Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

Projector type

Laser projector

Power supply

AC 200 V–240 V, 7.7 A, 50/60 Hz
(Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.6 A].)

Power consumption

1,510 W (0.3 W with Standby Mode set to ECO*1, 4 W with Standby Mode set to NORMAL)

DLP™ chip


Panel size

24.1 mm (0.95 in)
diagonal (4:3 aspect ratio)

Display method

DLP™ chip x 3, DLP™ projection system

Pixels

4,410,000 (1400 x 1050 x 3) pixels

Refresh rate

120 Hz*2

Lens

Optional (no lens included with this model)

Light source

Laser Diode (Laser class: Class 1)(Class 3R for US models), Light source life: 20,000 hours (NORMAL Mode, brightness decreases to approx. 50 %) / 24,000 hours (ECO Mode, brightness decreases to approx. 50 %)

Screen size (diagonal)

1.78–25.4 m (70–1,000 in)
with 4:3 aspect ratio
1.78–15.24 m (70–600 in)
with the ET-D75LE8, 4:3 aspect ratio
3.05–15.24 m (120–600 in)
with the ET-D75LE95, 4:3 aspect ratio

Brightness

21,000 lm (Center)*3 / 20,000 lm*4

Center-to-corner uniformity

90 %

Contrast

20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)

Resolution

1400 x 1050 pixels

RGB

fH: 15−100 kHz, fV: 24−120 Hz, dot clock: 162 MHz or less
Video/YC fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60),
fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
Optical axis shift*5
(from center of screen)
Vertical ±50 % (±40 % with ET-D75LE6, +67 – +71 % with ET-D75LE95) (powered)

Horizontal

±30 % (±20 % with ET-D75LE6, ±8 % with ET-D75LE95) (powered)

Keystone correction range

Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6),
Horizontal: ±15°

Keystone correction range with optional Upgrade Kit ET-UK20

Vertical: ±45° (± 40° with ET-D75LE10/20,
±22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±40° (±15° with ET-D75LE50/6),
Up to a total of ±55° during simultaneous horizontal and vertical correction

Installation

Horizontal/vertical, free 360-degree installation

Cabinet materials

Molded plastic

Dimensions (W x H x D)

598 × 270 × 725 mm (23 17/32˝ x 10 5/8˝ x 28 17/32˝) (not including protruding parts)

Operation noise*4

46 dB

Operating environment

Operating temperature: 0–45 °C (32–113 °F)*8,
operating humidity: 10–80 % (no condensation)

Applicable software

Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,
Geometry Manager Pro Software (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Upgrade Kit), Smart Projector Control
