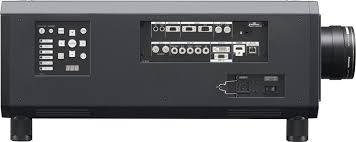

Panasonic PT-RZ12K 12000 Lumens WUXGA 20000 Hrs 3-Chip Laser Projector

Panasonic PT-RZ12K 12000 Lumens WUXGA 20000 Hrs 3-Chip Laser Projector

Regular price ₱2,665,000.00 PHP
Regular price Sale price ₱2,665,000.00 PHP
Sale Sold out
Shipping calculated at checkout.

Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

Projector type

3-Chip DLP™ projector

Power supply

100–240 V AC, 50/60 Hz

Power consumption

1,200 W (1,280 VA) (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal);
Average power consumption: 800 W (Normal Mode), 680 W (Eco Mode), 620 W (Long Life 1 Mode), 590 W (Long Life 2 Mode), 550 W (Long Life 3 Mode)

DLP™ chip


Panel size

24.4 mm (0.96˝) diagonal (16:10 aspect ratio)

Display method

DLP™ chip x 3, DLP™ projection system

Pixels

2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels

Lens

Optional powered zoom and fixed-focus lenses

Light source

Laser diode (Class 1), Light source life*4:
20,000 hours (Normal Mode) / 24,000 hours (Eco Mode)

Screen size (diagonal)

1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝)
with the ET-D75LE8, 3.05-15.24 m (120–600˝)
with the ET-D75LE90, 16:10 aspect ratio

Brightness*5

12,000 lm

Contrast*5

20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)

Resolution

1920 x 1200 pixels*6

Optical axis shift*7
(from center of screen)

Vertical ±55 % (±44 % with the ET-D75LE6, +73 – +78 % with the ET-D75LE90) (powered)

Horizontal

±20 % (±15 % with the ET-D75LE6, ±6 % with the ET-D75LE90) (powered)

Keystone correction range

Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90)

Keystone correction range with optional Upgrade Kit ET-UK20*9

Vertical: ±45° (±40° with ET-D75LE10/ET-D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE50/ET-D75LE6, 0° with ET-D75LE90)

Installation

Ceiling/floor, front /rear, free 360-degree installation

Cabinet materials

Molded plastic

Dimensions (W x H x D)

578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included), 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝)
(Including legs at shortest position and protruding parts)

Operation noise*1

43 dB

Operating environment

Operating temperature: 0–50 °C (32–122 °F)*11, operating humidity: 10-–80 % (no condensation)

Applicable software

Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

 Terminal
