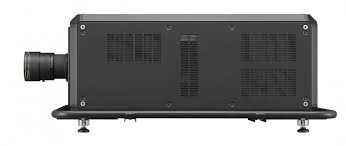

Panasonic PT-RQ50KE 4K 51000 Lumens SSI 20000 Hrs 3-Chip Laser Projector
Panasonic PT-RQ50KE 4K 51000 Lumens SSI 20000 Hrs 3-Chip Laser Projector
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
|
Projector type |
3-Chip DLP™ projector |
|
|
Power supply |
AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz |
|
|
Power consumption |
4,100 W (AC 100–120 V: 1,100 W, Standby Mode: 6 W) |
|
|
DLP™ chip |
|
|
|
Panel size |
35.1 mm (1.38 in) diagonal (17:9 aspect ratio) |
|
|
Display method |
DLP™ chip x 3, DLP™ projection system |
|
|
Pixels |
8,847,360 (4096 x 2160 pixels) x 3 |
|
|
Lens |
New optional lenses for PT-RQ50K (no lens included with this model) |
|
|
Light source |
Laser diodes (Blue LD, Red LD) |
|
|
Light output |
50,000 lm*1 / 51,000 lm (Center)*2 |
|
|
Screen size (diagonal) |
2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio |
|
|
Brightness |
50,000 Lumens (ISO) 51,000 Lumens (Center) |
|
|
Center-to-corner uniformity |
90 % |
|
|
Contrast ratio*1 |
20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
|
| Time until light output declines to 50 %*3 | 20,000 hours (Normal) | |
|
Resolution |
Native 4K (4096 x 2160 pixels) |
|
| Lens shift | ||
| Vertical | ±45 % (±25 % with ET-D3QT600, ±30 % with ET-D3QT700/ET-D3QT800, ±40 % with ET-D3QW300) (powered) | |
|
Horizontal |
±16 % (±8 % with ET-D3QT600, ±10 % with ET-D3QT700/ET-D3QT800, ±14 % with ET-D3QW300) (powered) | |
|
Keystone correction range |
Vertical: ±40 ° (±28 ° with ET-D3QW300), Horizontal: ±40 ° (±15 ° with ET-D3QW300) |
|
|
Installation |
Horizontal/vertical, free 360-degree installation |
|
|
Cabinet materials |
Fabricated metal and molded plastic |
|
|
Dimensions (W x H x D) |
720 x 445 x 1,070 mm (28 11/32˝ x 17 17/32˝ x 42 1/8˝ ) (excluding handle, adjuster feet, and other protruding parts |
|
|
Operation noise*1 |
52 dB |
|
|
Operating environment |
Operating temperature: 0–45 °C (32–113 °F)*5*6*7, operating humidity: 10–80 % (no condensation) |
|
|
Applicable software |
Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
|
|
Terminal |
|
|
|
MULTI PROJECTOR SYNC IN |
BNC x 1 |
|
|
MULTI PROJECTOR SYNC OUT |
BNC x 1 |
|
|
SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
|
|
SERIAL OUT |
D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
|
|
REMOTE 1 IN |
M3 stereo mini-jack x 1 for wired remote control |
|
|
REMOTE 1 OUT |
M3 stereo mini-jack x 1 for link control |
|
|
REMOTE 2 IN |
D-sub 9-pin (female) x 1 for external control (parallel) |
|
|
DIGITAL LINK |
RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible |
|
|
LAN |
RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
|
|
USB |
USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick |
|
|
DC OUT |
USB Type A x 2 (for power supply, DC 5 V total of 2 A) |
|
|
Expansion slot 1 |
Interface Board for 12G-SDI (ET-MDN12G10) supplied |
|
|
Expansion Slot 2 |
Optional interface boards, SLOT NX compatible |
|
