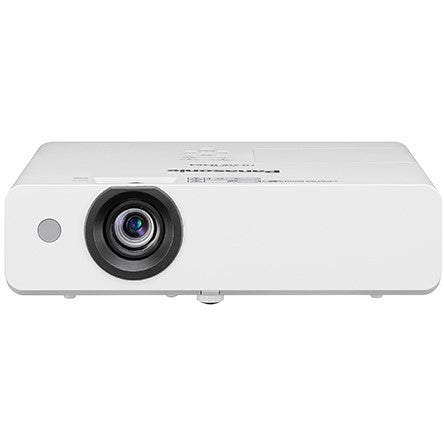

Panasonic PT-LW376 3600 ANSI Lumens WXGA HDMI Projector
Panasonic PT-LW376 3600 ANSI Lumens WXGA HDMI Projector
Panasonic - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
|
Projector type |
LCD projector |
|
|
LCD panel |
|
|
|
Panel size |
15.0 mm (0.59 in) diagonal (16:10 aspect ratio) |
|
|
Display method |
Transparent LCD panel (x 3, R/G/B) |
|
|
Drive method |
Active matrix method |
|
|
Number of pixels |
1,024,000 (1280 x 800 pixels) x 3 |
|
|
Light source |
230 W x 1 lamp |
|
|
Light output*1 |
3,600 lm |
|
|
Lamp replacement cycle*2 |
Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h |
|
|
Filter replacement cycle |
Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h |
|
|
Resolution |
1280 x 800 pixels |
|
|
Contrast ratio*1 |
20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal) |
|
|
Screen size (diagonal) |
0.76–7.62 m (30–300 in), 16:10 aspect ratio |
|
|
Center-to-corner zone ratio*1 |
85 % |
|
|
Lens |
Manual zoom (1.2x), manual focus lens, F = 1.6–1.76, |
|
|
Keystone correction range |
Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual) |
|
|
Installation |
Ceiling/desk, front/rear |
|
|

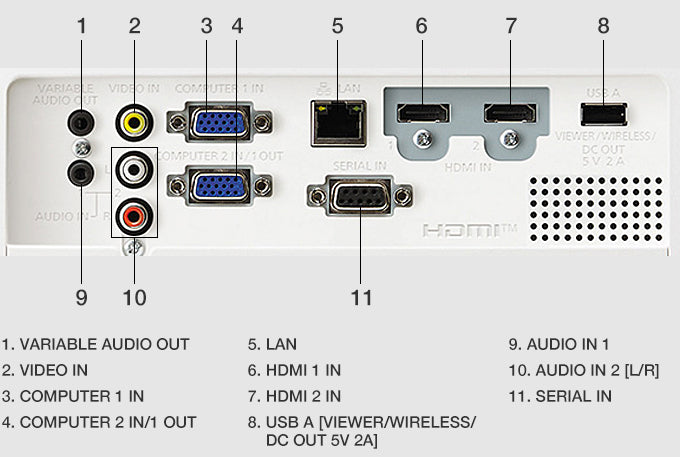

Terminals |
|
|
|
HDMI 1 IN/HDMI 2 IN |
HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM |
|
|
COMPUTER 1 IN |
D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC] |
|
|
COMPUTER 2 IN/1 OUT |
D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching) |
|
|
VIDEO IN |
Pin jack x 1 |
|
|
AUDIO IN 1 |
M3 (L,R) x 1 |
|
|
AUDIO IN 2 |
Pin jack x 2 (L,R) |
|
|
AUDIO OUT |
M3 (L,R) x 1 (Variable) |
|
|
LAN |
RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible |
|
|
SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compatible) |
|
|
USB A |
USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A]) |
|
|
USB B |
— |
|
|
Power supply |
AC 100–240 V, 50/60 Hz |
|
|
Power consumption |
300 W |
|
|
Cabinet materials |
Molded plastic |
|
|
Built-in speaker |
10 W monaural |
|
|
Operation noise*1 |
Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB |
|
|
Dimensions (W x H x D) |
335 x 96*4 x 252 mm (13 3/16˝ x 3 25/32˝*4 x 9 29/32˝ ) |
|
|
Weight*5 |
Approx. 2.9 kg (6.4 lbs) |
|
|
Operating environment |
Operating temperature*6: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft); |
|
|
Applicable software |
Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*7, Wireless Projector for iOS/Android™*8 |
|
