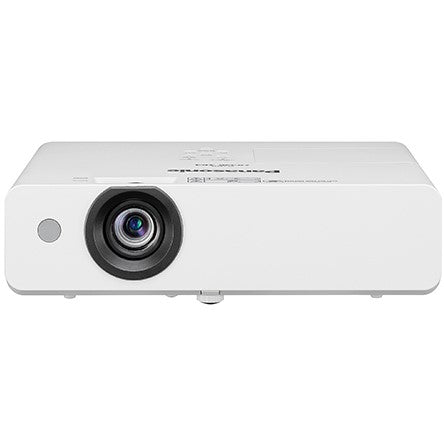

Panasonic PT-LB356 3300 ANSI Lumens XGA HDMI Projector

  • ₱41,500.00
    Unit price per
  • Discounted ₱2,800
Shipping calculated at checkout.


Projector type

LCD projector

LCD panel



Panel size

16.0 mm (0.63 in) diagonal (4:3 aspect ratio)

Display method

Transparent LCD panel (x 3, R/G/B)

Drive method

Active matrix method

Number of pixels

786,432 (1024 x 768 pixels) x 3

Light source

230 W x 1 lamp

Light output

3,300 lm

Lamp replacement cycle*2

Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h

Filter replacement cycle

Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h

Resolution

1024 x 768 pixels

Contrast ratio*1

20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal)

Screen size (diagonal)

0.76–7.62 m (30–300 in), 4:3 aspect ratio

Center-to-corner zone ratio*1

85 %

Lens

Manual zoom (1.2x), manual focus lens, F = 1.6–1.76,
f = 19.16–23.02 mm, throw ratio: 1.48–1.78:1

Keystone correction range

Vertical: ±35 ° (Auto, Manual), Horizontal: ±35 ° (Manual)

Installation

Ceiling/desk, front/rear

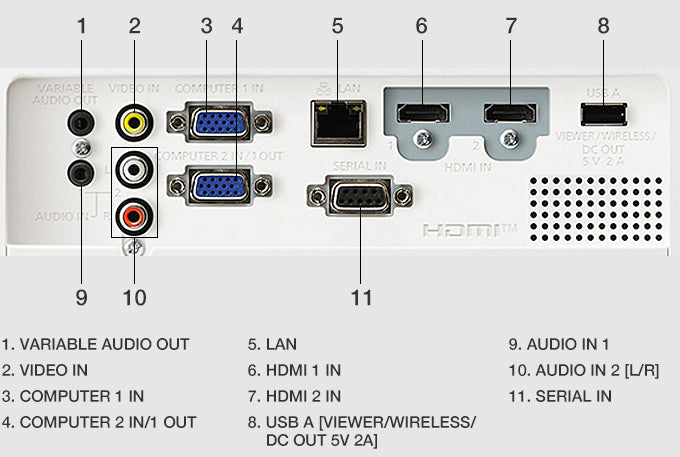

Terminals



HDMI 1 IN/HDMI 2 IN

HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM

(Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

HDMI IN

COMPUTER 1 IN

D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC]

COMPUTER 2 IN/1 OUT

D-sub HD 15-pin (female) x 1 [RGB/YPBPR]
(Input/output switching)

MONITOR OUT

VIDEO IN

Pin jack x 1

AUDIO IN 1

M3 (L,R) x 1

AUDIO IN 2

Pin jack x 2 (L,R)

AUDIO OUT

M3 (L,R) x 1 (Variable)

LAN

RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible

SERIAL IN

D-sub 9-pin (female) x 1 for external control (RS-232C compatible)

USB A

USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A])

USB B

Power supply

AC 100–240 V, 50/60 Hz

Power consumption

300 W

Cabinet materials

Molded plastic

Built-in speaker

10 W monaural

Operation noise*1

Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB

Dimensions (W x H x D)

335 x 96*4 x 252 mm (13 3/16˝ x 3 25/32˝*4 x 9 29/32˝ )

Weight

Approx. 2.9 kg (6.4 lbs)

Operating environment

Operating temperature*6: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation)

Applicable software

Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*7, Wireless Projector for iOS/Android
