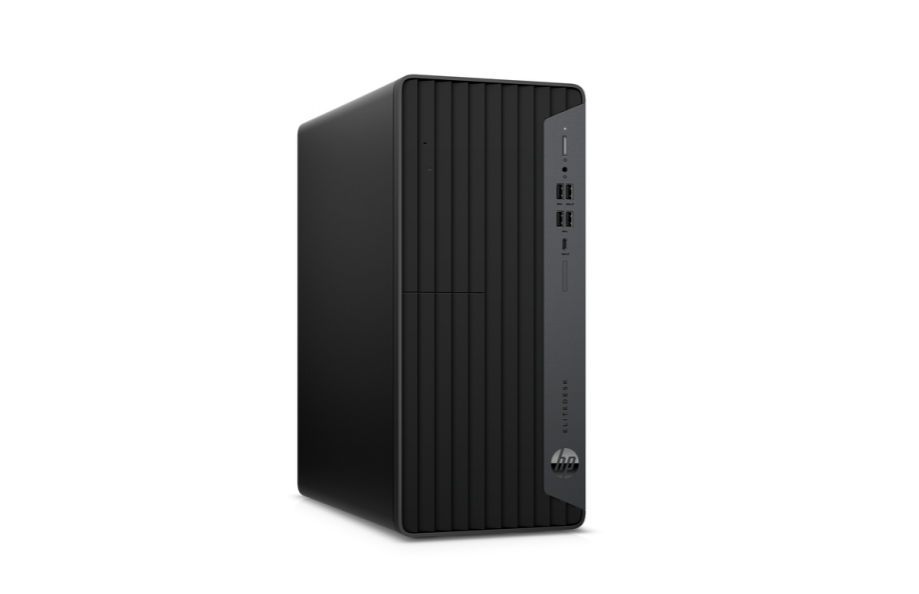

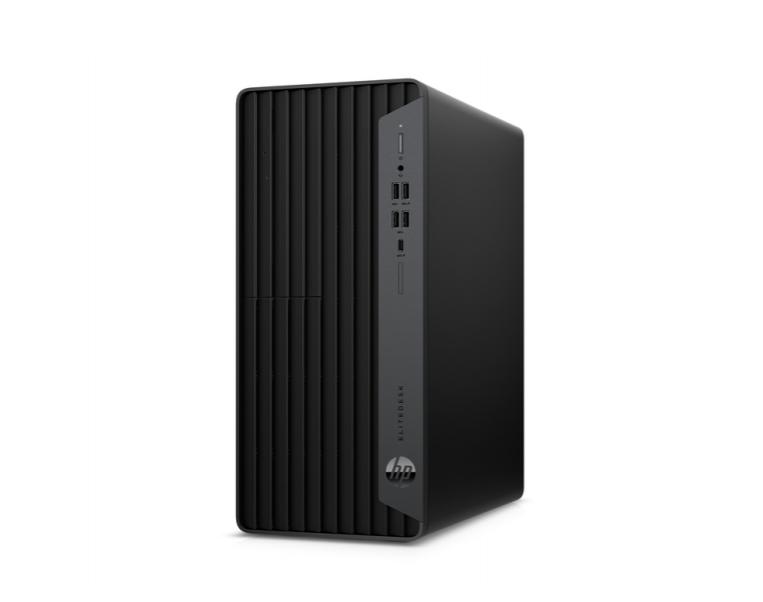

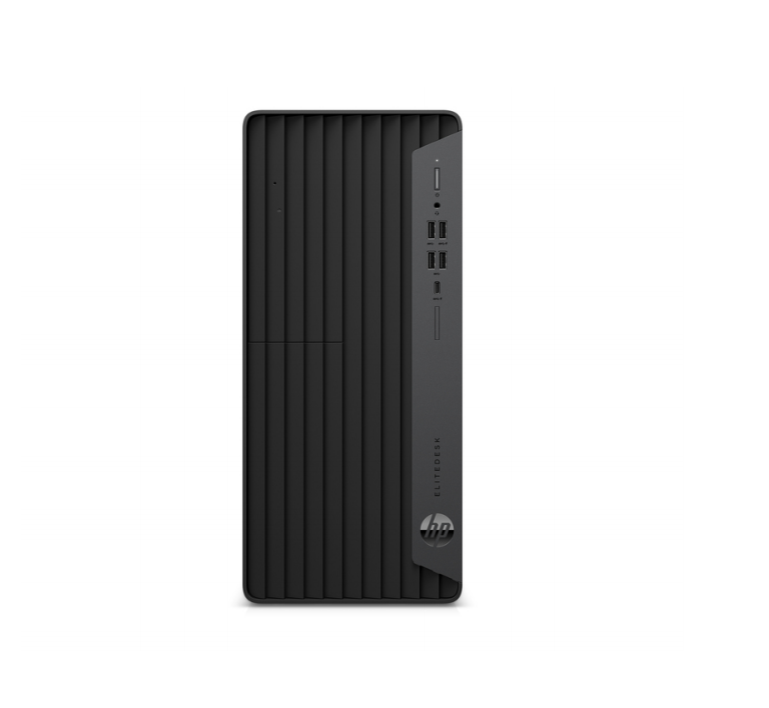

HP Elitedesk 800 G6 TWR Intel Core i7 10th Gen upto 128GB RAM 2TB HDD 512GB SSD Windows 10 Pro 64

Available Operating Systems

Windows 10 Pro 64 – HP recommends Windows 10 Pro for business

Windows 10 Pro 64 (National Academic only)

Windows 10 Home 64

Windows 10 Home Single Language 64

FreeDOS

---

Processor family

10th Generation Intel® Core™ i3 processor; 10th Generation Intel® Core™ i5 processor; 10th Generation Intel® Core™ i7 processor; 10th Generation Intel® Core™ i9 processor; Intel® Pentium® processor

---

Available Processors

Intel® Core™ i3-10100 with Intel® UHD Graphics 630 (3.6 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores); Intel® Core™ i3-10300 with Intel® UHD Graphics 630 (3.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores); Intel® Core™ i5-10500 with Intel® UHD Graphics 630 (3.1 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores), supports Intel® vPro® Technology; Intel® Core™ i5-10600 with Intel® UHD Graphics 630 (3.3 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores), supports Intel® vPro® Technology; Intel® Core™ i5-10600K with Intel® UHD Graphics 630 (4.1 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores), supports Intel® vPro® Technology; Intel® Core™ i7- 10700 with Intel® UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 16 MB L3 cache, 8 cores), supports Intel® vPro® Technology; Intel® Core™ i7-10700K with Intel® UHD Graphics 630 (3.8 GHz base frequency, up to 5.1 GHz with Intel® Turbo Boost Technology, 16 MB L3 cache, 8 cores), supports Intel® vPro® Technology; Intel® Core™ i9-10900 with Intel® UHD Graphics 630 (2.8 GHz base frequency, up to 5.2 GHz with Intel® Turbo Boost Technology, 20 MB L3 cache, 10 cores), supports Intel® vPro® Technology; Intel® Core™ i9-10900K with Intel® UHD Graphics 630 (3.7 GHz base frequency, up to 5.3 GHz with Intel® Turbo Boost Technology, 20 MB L3 cache, 10 cores), supports Intel® vPro® Technology; Intel® Pentium® Gold G6500 with Intel® UHD Graphics 630 (4.1 GHz base frequency, 4 MB L3 cache, 2 cores)

---

Chipset

Intel® Q470 (vPro®)

---

Form factor

Tower

---

Maximum memory

128 GB DDR4-3200 SDRAM

Transfer rates up to 2933 MT/s

---

Memory slots

4 DIMM

---

Internal storage

500 GB up to 2 TB 7200 rpm SATA

up to 2 TB 5400 rpm SATA

up to 500 GB SATA SED Opal 2 HDD

up to 500 GB 7200 rpm SATA FIPS SED

256 GB up to 512 GB PCIe® NVMe™ M.2 SSD

128 GB up to 2 TB PCIe® NVMe™ TLC M.2 SSD

256 GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD

256 GB up to 512 GB Intel® Optane™ Memory H10 with Solid State Storage

16 GB NVMe™ Intel® Optane™ Memory for storage acceleration

---

Optical drive

HP 9.5 mm Slim DVD-Writer; HP 9.5 mm Slim DVD-ROM

---

Available Graphics

Integrated: Intel® UHD Graphics 610; Intel® UHD Graphics 630

Discrete: AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated); NVIDIA® GeForce® RTX 2060 SUPER™ (6 GB GDDR5 dedicated); AMD Radeon™ RX 550X Graphics (4 GB GDDR5 dedicated)

---

Audio

Conexant CX20632 codec, universal audio jack with CTIA and OMTP headset support

---

Ports and Connectors

Front: 2 SuperSpeed USB Type-A 10Gbps signaling rate; 2 SuperSpeed USB Type-A 5Gbps signaling rate

Rear: 1 audio-out; 1 power connector; 1 RJ-45; 2 SuperSpeed USB Type-A 10Gbps signaling rate; 2 SuperSpeed USB Type-A 5Gbps signaling rate; 2 USB Type-A 480Mbps signaling rate; 2 DisplayPort™ 1.4; 1 SuperSpeed USB Type-C® 10Gbps (15W output, DisplayPort™ 1.2)

Optional Ports: Flex IO port – choose one of the following options: DisplayPort™ 1.4, HDMI 2.0, VGA, serial, 2 SuperSpeed USB Type-A 10Gbps signaling rate, SuperSpeed USB TypeC® 10Gbps signaling rate (15W output, DisplayPort™ 1.2), Thunderbolt™ PCIe card with USB-C; Add-on card: 1 serial and PS/2 ports combination; 1 5-in-1 SD media card reader; Add-on port: 1 seria

---

Input devices

HP Wired Desktop 320K Keyboard; HP PS/2 Business Slim Keyboard; HP Wireless Business Slim Keyboard and mouse combo; HP USB Business Slim SmartCard CCID Keyboard; HP USB 1000 dpi Laser Mouse; HP USB Optical Mouse; HP USB Fingerprint Mouse; HP PS/2 Mouse; HP Wired Desktop 320M Mouse

---

Communications

LAN: Integrated Intel® I219LM GbE LOM; Intel® I210-T1 PCIe® GbE ; WLAN: Intel® Wi-Fi 6 AX201 (2x2) Wi-Fi® and Bluetooth® M.2 combo card, non-vPro™; Intel® Wi-Fi 6 AX201 (2x2) Wi-Fi® and Bluetooth® M.2 combo card, vPro™

---

Drive Bays

1 slim ODD; One 5.25" ODD; One 2.5" HDD; Two 3.5" HDD

---

Environmental

Operating temperature: 10 to 35°C;

Operating humidity: 10 to 90% RH;

---

Software

HP Noise Cancellation Software; HP Support Assistant; Buy Office (sold separately); HP JumpStarts; HP Privacy Settings; HP Desktop Support Utilities

---

Security management

Power-on password (via BIOS); SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Serial enable/disable (via BIOS); HP Secure Erase; HP Sure Click; HP Sure Sense; HP DriveLock and Automatic DriveLock; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10. (Common Criteria EAL4+ Certified); HP Client Manager Gen 6; HP Sure Recover Gen3; HP Sure Run Gen3; HP Sure Start Gen6; HP BIOsphere Gen6

---

Management features

HP BIOS Config Utility (download); HP Client Catalog (download); HP System Software Manager (download); HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 4; HP Driver Packs; HP Image Assistant Gen 5 (download)

---

Power

260 W internal power adapter, up to 92% efficiency, active PFC; 550 W internal power adapter, up to 92% efficiency, active PFC

---

Dimensions

37 x 30.8 x 16.8 cm

---

Weight

9.86 kg (Exact weight depends on configuration.)

---

Energy efficiency compliance

ENERGY STAR® certified; EPEAT® 2019 registered where applicable

---

Environmental specifications

Low halogen

---
