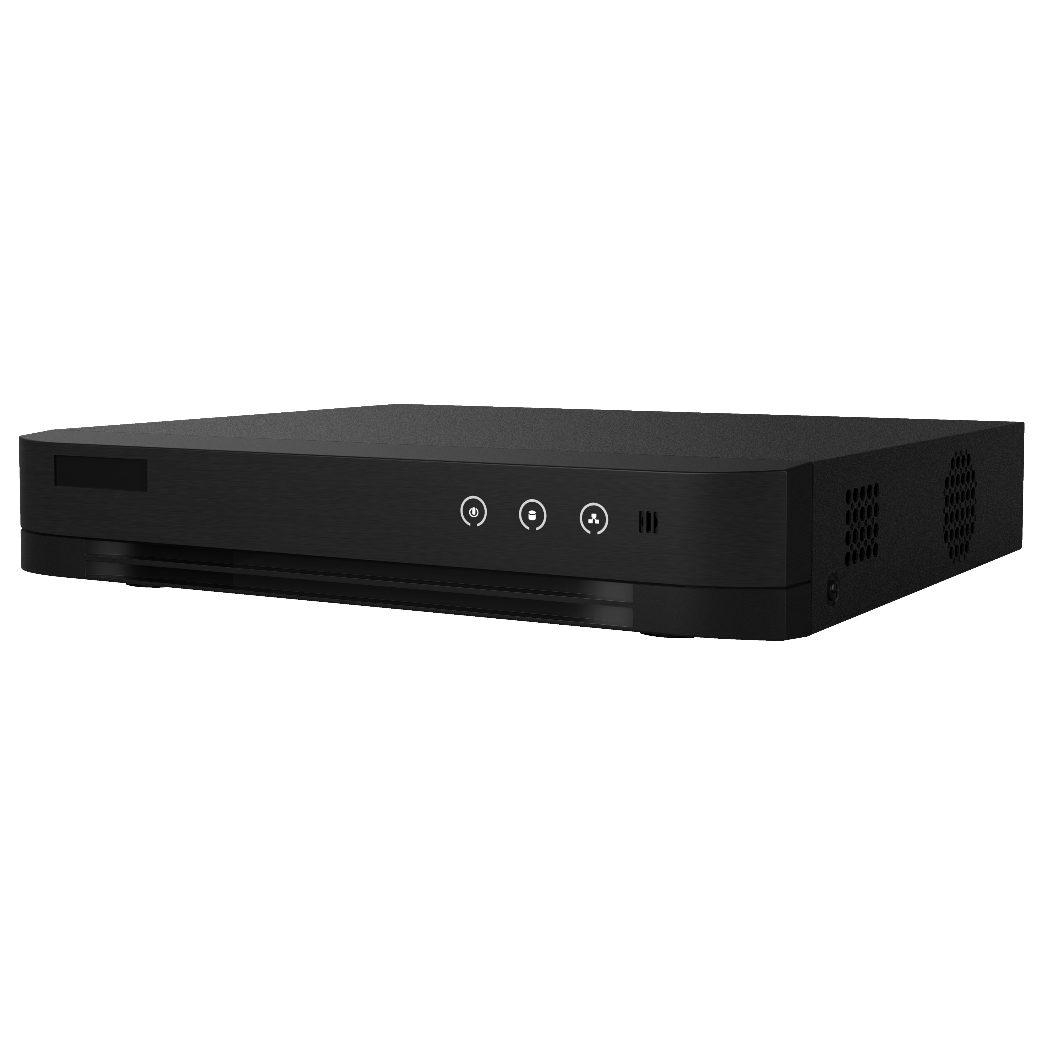

HIKVISION DS-7204HQHI-K1/E(S) 4-ch 1080P 1U H.265 DVR

4-ch 1080p 1U H.265 DVR

• 4 channels and 1 HDD 260 case DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected.

• Recording
• Encoding Resolution

  When 1080p lite mode is not enabled:

  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF



• Video Bit Rate32 Kbps to 6 Mbps
• Frame Rate

  Main stream:

  When 1080p Lite mode is not enabled:

  For 4 MP stream access:

  4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access:

  1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)



• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

• Video And Audio
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Synchronous Playback4-ch
• IP Video Input

  1-ch (up to 5-ch)



  Enhanced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras

• HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS OutputN/A
• HDMI/VGA Output

  HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output

  VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Network
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections32
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary Interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceN/A
• USB Interface2 × USB 2.0
• Alarm In/OutN/A
• SATA1 SATA interface

• General
• Consumption(Without HDD)≤ 5 W
• Working Humidity10% to 90%
• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
• Weights (Without HDD)≤ 1.6 kg (3.5 lb)
