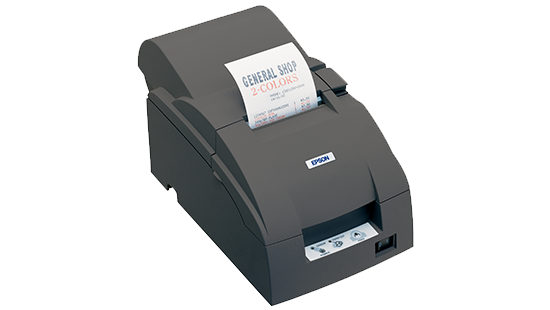

EPSON TM-U220PB (C31C517675) PS180, Parallel I/F, EDG IMPACT DOT MATRIX PRINTERS Auto Cutter

Print type

Print method: 9-pin serial impact dot matrix

Technology: Serial Impact Dot Matrix

Fonts & Styles

Print Speed: 4.70 lps (40 columns, 16.00 cpi)

Column capacity receipt: Paper width 76 mm, 33 / 40

Character size: 1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H)

Character set: 95 Alphanumeric, 48 International, 128 x 12 Graphic

Characters per inch: 13.3 cpi / 16 cpi

Colour Printing: Two colours

Paper

Paper Types: Receipt

Copy capability receipt: one copies plus one original

Paper size roll paper:

76.00 ± 0.50 (W) mm x dia 83.00 mm,
69.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm

Interfaces

Interfaces: Drawer kick-out, Bidirectional parallel

Power

Power Supply: AC adapter, C

Operating Voltage: 24 V

General

Product dimensions: 160‎ x 248 x 139 mm (Width x Depth x Height)

Product weight: 2.5 kg

Color: Epson Dark Grey

Installation: horizontally, vertically with wall hanging bracket

Interface connectors: D.K.D. function (2 drivers)

Noise Level: Operation: 64 dB (A)

Supported Humidity: Operation 10% - 90%, Storage 10% - 90%

Supported Temperature: Storage -10° C - 50° C

Reliability

Reliability: 18,000,000 MCBF (Lines), 180,000 MTBF (Hours)

Auto Cutter Life: 800,000 Cuts

Printer Life: 7,500,000 lines

Standards Compliance

EMC Standards: CE marking

Safety standards: TÜV

Other Features

Changeable interface: Yes

Cutter: Partial Cut

Sensors: Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor

What's in the box

AC adapter, C, Main unit, Ribbon, Roll paper, User manual
