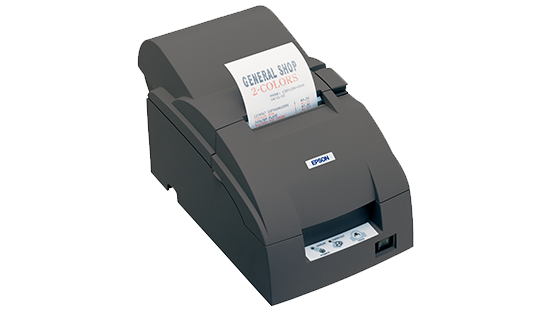

EPSON TM-U220A (C31C513665 ) PS180, Serial IF, ECW IMPACT DOT MATRIX PRINTERS

Print Font:

Font:Font A: 9 x 9
Font B: 7 x 9 (default)

Characters Per Inch:17.8 cpi / 16 cpi or 14.5 cpi / 13.3 cpi

Character Size (W x H):1.2 mm × 3.1 mm or 1.6 mm × 3.1 mm

Character Set:95 Alphanumeric, 48 International, Extended graphics: 128 x 12 pages

Paper:

Roll Paper:76.0 ± 0.5 (W) × dia. 83.0
69.5 ± 0.5 (W) × dia. 83.0
57.5 ± 0.5 (W) × dia. 83.0

Overall Dimensions (D x W x H):

Overall Dimensions (D x W x H):160 × 286 × 157.5 mm

Mass:

Mass:Approximately 2.7 kg (5.94 lb)

Standard Accessories:

Standard Accessories:Dedicated ribbon cassette (ERC-38(B/R))
Roll paper
User’s manual
AC adapter

Dot Density:

Dot Density:180 dpi x 180 dpi

Device:

Two Colour Printing:YesAutocutter:Yes

Take Up Device:Yes

Wall Hanging Install:No

Interface:

Interface:RS-232C, Bidirectional parallel, Dealer Option: USB, 10 Base-T I/F

Reliability:

MTBF:180,000 hours

MCBF:18 million lines

Printer Mechanism Life:7.5 million lines

Auto Cutter Life:800,000 cuts (Type A and Type B only)

Printer Type:

Print Method:9-pin serial impact dot matrix

Print Speed :4.7 lps (at 40 columns, 16 cpi), 6.0 lps (at 30 columns, 16 cpi)

Power:

Power Consumption:Operating: Approx. 38 W (Mean)
Standby: Approx. 2.2 W (Mean)

Power Supply:AC adapter

Supply Voltage:DC +24 V ± 7%

Receive Data Buffer:

Receive Data Buffer:4 KB or 40 bytes
