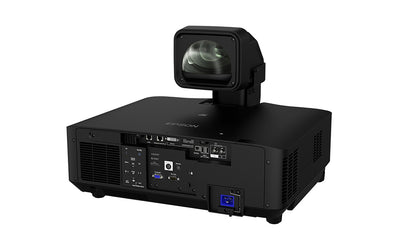

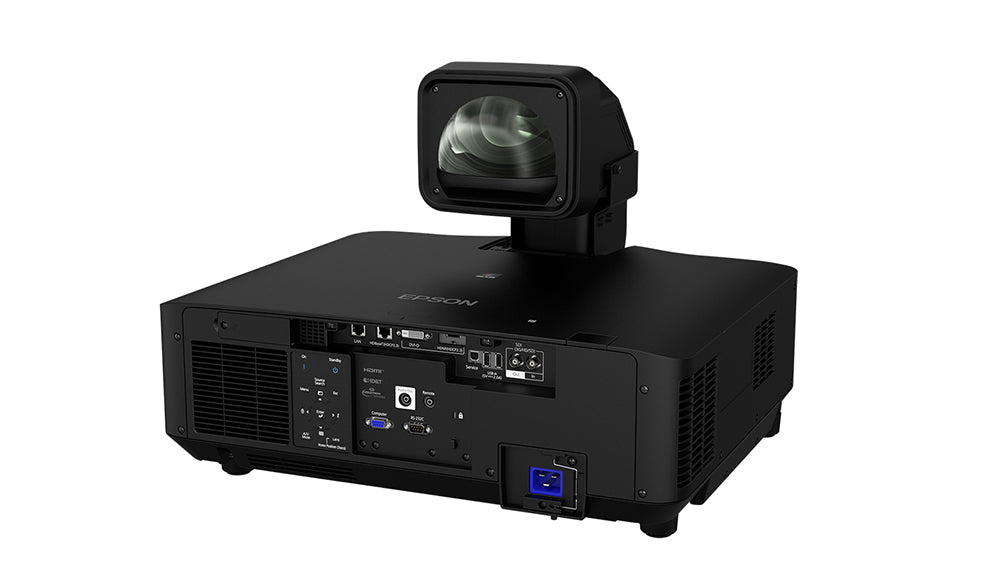

Epson EB-PU2220B 20,000 Lumen 3LCD Large Venue Laser Projector with 4K Enhancement (V11HA66840)

Name: Epson EB-PU2220B 20,000 Lumen 3LCD Large Venue Laser Projector with 4K Enhancement (V11HA66840)
Brand: Epson
SKU: V11HA66840
Price: 2541000.00 PHP
Availability: InStock

₱2,541,000.00 PHP

Sale Sold out

Shipping calculated at checkout.

Quantity

Epson - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

The world’s smallest and lightest 20,000-lumen projector¹

Experience the power and flexibility of the EB-PU2220B 20,000-lumen² large venue laser projector, the world's smallest and lightest 20,000-lumen projector¹. Featuring a sleek, black cabinet, this premium laser projector is optimised for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra bright, 20,000-lumen images² and uses a 20,000-hour virtually maintenance-free laser light source³. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality⁴, and the optional attachable camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.

- World's smallest and lightest 20,000-lumen projector¹
- 20,000 lumens of equal white and color brightness²
- WUXGA with 4K Enhancement⁵
- 20,000-hour virtually maintenance-free laser light source³

The world's smallest and lightest 20,000-lumen projector¹
Produces incredibly bright images from a light and compact body.

Incredible Color
Epson 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness². The EB-PU2220B is also equipped with the new and more efficient 4-in-1 laser light source technology.

WUXGA with 4K Enhancement⁵
Accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image.

Engineered for reliability
Hermetically sealed IP5X certified optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation.

Epson Projector Config Tool for Easy Set Up
Using NFC wireless communications technology to change projector settings and check equipment information, the Epson Projector Config Tool is an app that allows you to configure network and projection settings in advance, even when the projector is switched off. Allowing management across your fleet of projectors, this tool helps to reduce time and effort required, increasing efficiency.

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Connectivity:

Network:Wired LAN: RJ45 x 1
Wireless: Optional (ELPAP11)Analog Input:D-Sub 15Pin: 1 (Blue)Digital Input:DVI-D: 1 (HDCP 1.4)
HDMI: 1 (HDCP 2.3)
BNC (SD/HD/3G-SDI): 1
HDBaseT (RX): 1 (HDCP 2.3)Audio Output:Stereo Mini Jack: 1Control I/O:RS-232C: 1 (D-Sub 9pin)
Remote: 1 (Stereo Mini)Digital Output:SDI (SD/HD/3G-SDI): BNC x 1Others:USB Type A: 2 (For ELPEC01, Firmware Update, Copy OSD settings or 5V/2A power supply, Content Playback, Wireless LAN)
USB Type B: 1 (For service)

Projection Lens:

Type:Power Zoom / Power FocusFocal Length:36.0 - 57.40 mmZoom Ratio:1 - 1.6F-number:1.8 – 2.3Lens Shift:Vertical: ±60% (Powered)
Horizontal: ±18% (Powered)Throw Ratio Range:1.57 – 2.56 (Wide – Tele)Lens Exchange:Yes

Contrast Ratio:

Contrast Ratio:Over 5,000,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode :Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps³ / IEEE 802.11g (2.4GHz): 54 Mbps³ / IEEE 802.11n (2.4GHz): 72.2 Mbps³ / IEEE 802.11a (5GHz): 54 Mbps³ / IEEE 802.11n (5GHz): 150.0 Mbps³
Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps³ / IEEE 802.11n (2.4GHz): 72.2 Mbps³ / IEEE 802.11a (5GHz): 54 Mbps³ / IEEE 802.11n (5GHz): 150.0 Mbps³Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)

Screen Size (Projected Distance):

Zoom : Wide:60” – 1,000” [1.99 – 34.43 m]Zoom : Tele:60” – 1,000” [3.26 - 55.63 m]

Geometric Correction:

Vertical/Horizontal Keystone:±45° / ±30° ( Zoom: Tele) with Middle Throw Zoom LensCurve Surface:YesCorner Wall:YesPoint Correction:YesQuick Corner:YesGeometry Correction Memory:Yes

Operating Temperature:

Single Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 50 °C <32 - 122 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>Multi-projection Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:0 - 3,048 m (0 - 10,000 ft) (over 1,500m / 4,921ft with high altitude mode)

Start-Up Period:

Start-Up Period:Less than 8 seconds (Epson Logo); Warm-up Period: 20 secondsQuick Start-Up:Less than 7 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Direct Power On/Off:

Direct Power On/Off:Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):492 x 586 x 185 mm

Weight:

Weight:Approx. 24.4kg

Fan Noise:

Normal / Quiet:45dB / 37dB

**Brightness^*1:**

White Light Output (Normal/Eco):20,000 lm / 14,000 lmColour Light Output:20,000 lmLight Output (Center):21,100 lm

Specifications of Main Parts:

LCD:1.0” (C2 Fine)Light Source:Type: Laser Diode
Life: 20,000 hours (Normal) / 30,000 hours (Extended)Native Resolution:WUXGA (Support 4K Enhancement)Refresh Rate:192 – 240 Hz
