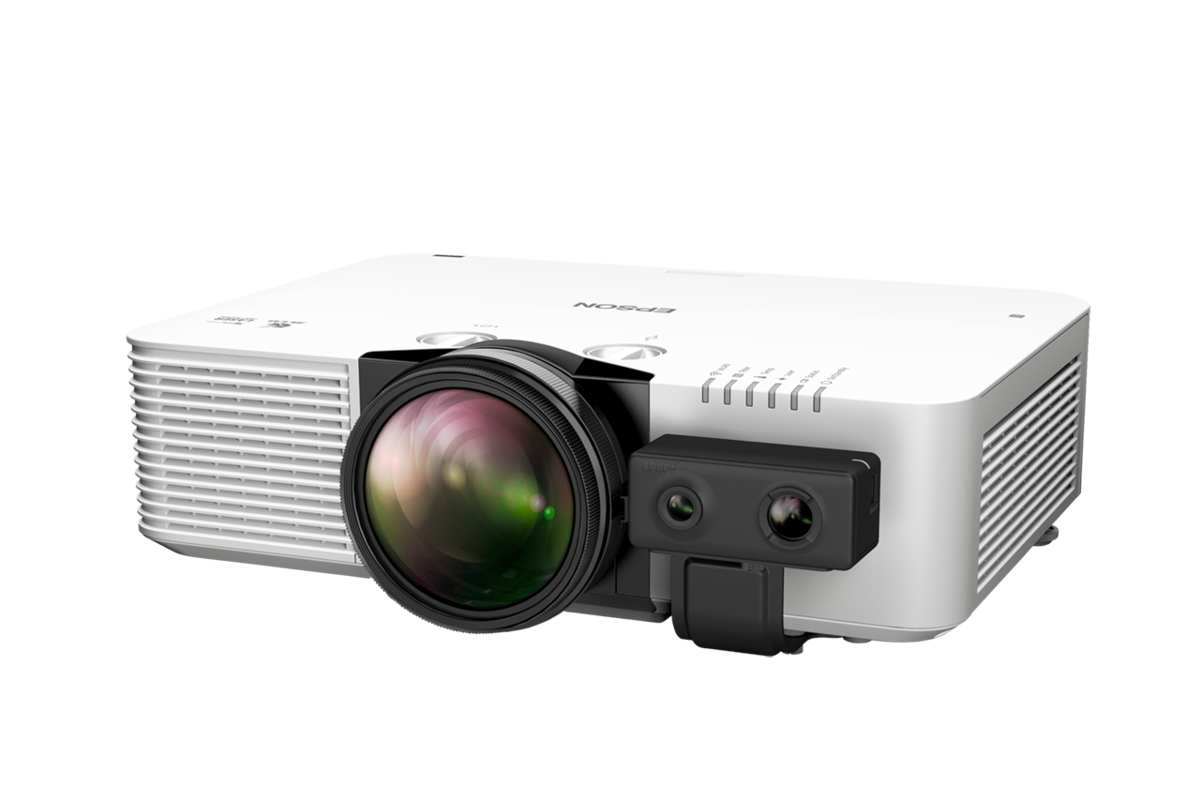

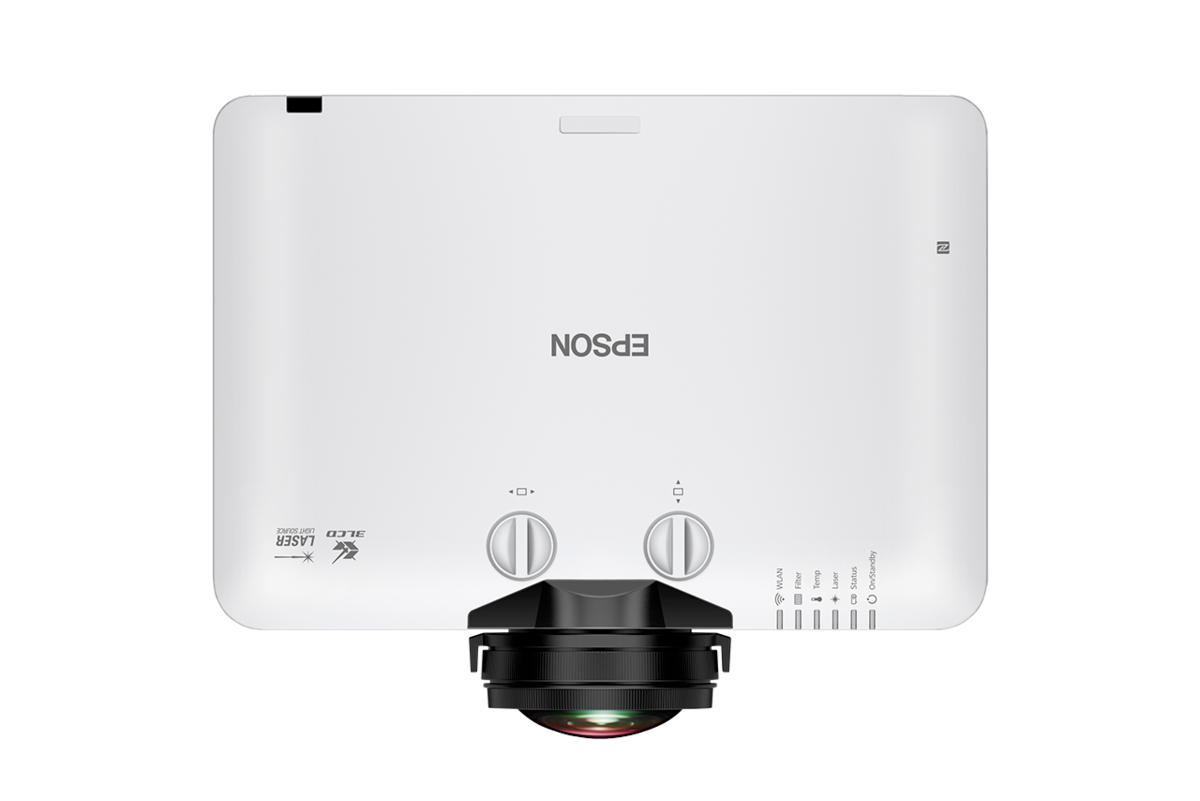

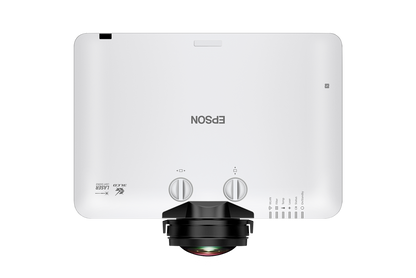

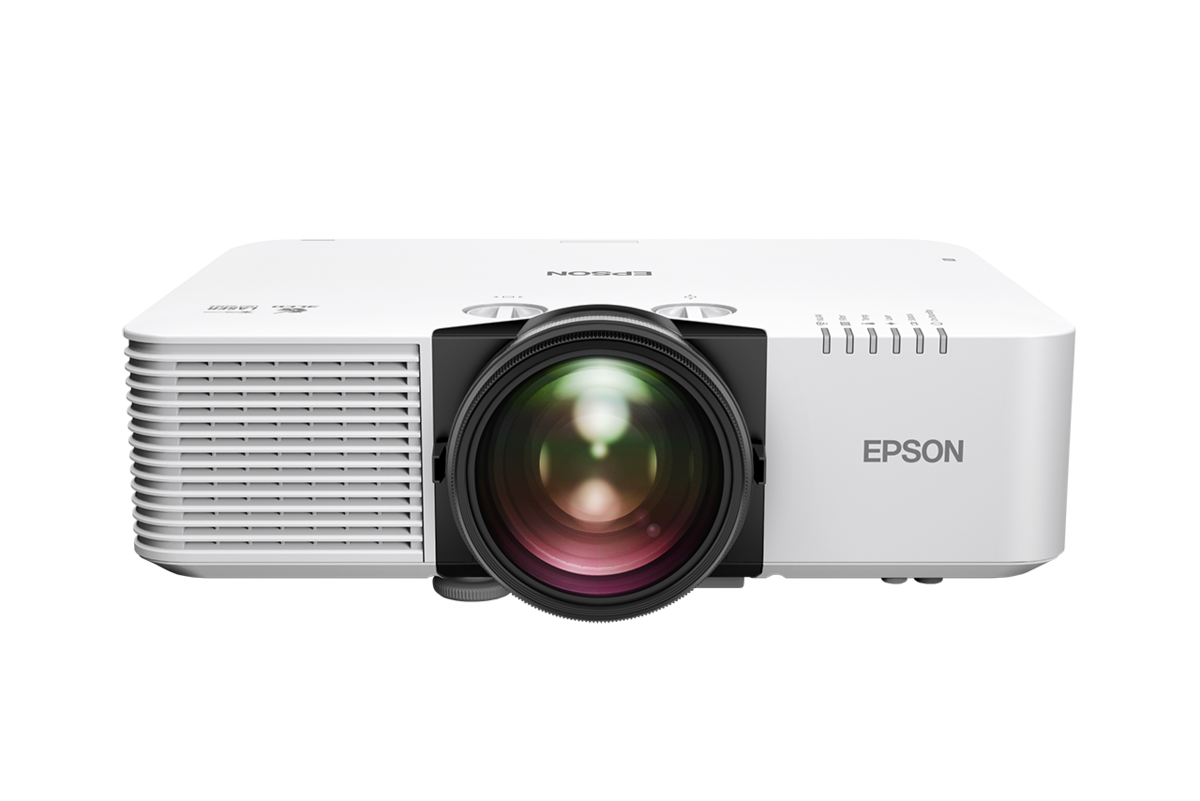

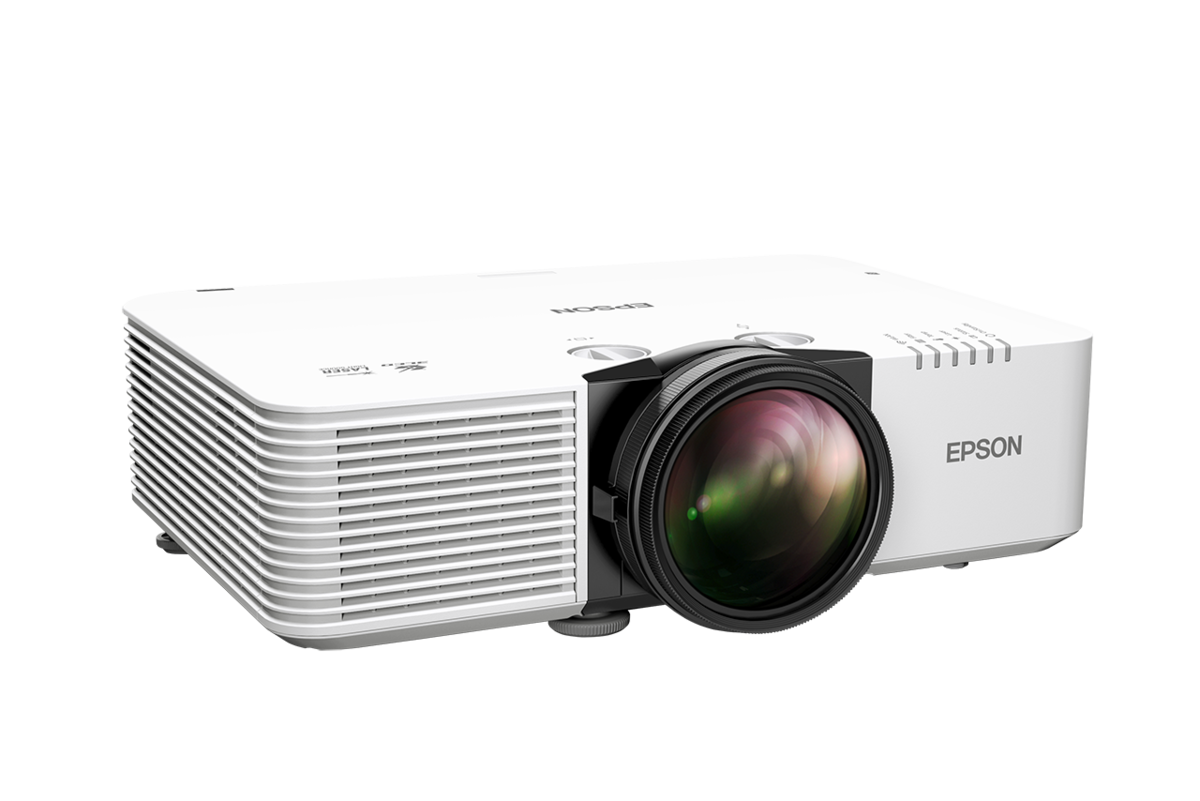

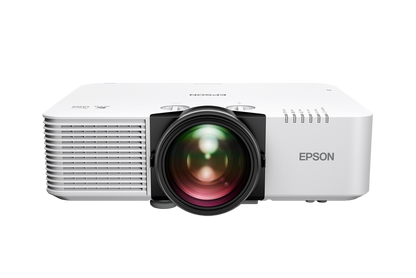

Epson EB-L690U WUXGA 3LCD Laser Projector (V11HB29080)

Epson EB-L690U WUXGA 3LCD Laser Projector (V11HB29080)

₱250,000.00 PHP
₱250,000.00 PHP
Sale Out of Stock
Shipping calculated at checkout.

Epson Brand - This product is Order Basis. For more details please email at sales@elnstore.com or Viber/iMessage/WhatsApp +63916 329 7178

Experience an incredibly bright and compact projector with pro-level features.



The Epson EB-L690U adds incredible brightness and pro features to the compact and versatile Epson business projector family. Featuring an impressive 6,500 lumens of color and white brightness1, it is ideal for classrooms and lecture halls, conference rooms, hybrid workspaces and more. This powerful projector produces exceptionally vibrant, high-resolution images up to 500'' in 16:10, plus is capable of projecting in a variety of other aspect ratios, including ultra wide 16:6 and 21:9.

Designed with convenience in mind, the EB-L690U features an up to 30,000-hour virtually maintenance-free laser light source2 and air filter in Extended Mode. And for simple, seamless installation, this versatile solution offers a variety of powerful features, such as optical zoom, wide lens shift, geometric correction tools and more. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection and Miracast. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

  • 6,500 lumens color/white brightness 1
  • WUXGA resolution for clear, detailed images
  • Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
  • Lightweight, compact design allows for easy installation
  • Up to 30,000-hour laser light source2 and air filter
  • AirPlay 2 supported



Ultra bright, true-to-life images

3-chip 3LCD technology and 6,500 lumens of equal color and white brightness 1

WUXGA resolution

Provides 1920 x 1200 resolution for vibrant, high-definition images

Large, versatile display options

Easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation

Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance

Up to 30,000-hour laser light source 2and air filter in Extended Mode

Wireless networking and content sharing

Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness*1:

White Light Output (Normal/Eco):6,500 lm / 4,550 lmColour Light Output:6,500 lmLight Output (Center)*3:7,100 lm

Connectivity:

USB:USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01 or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback,ELPEC01 or 5V/0.9A Power Supply
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network:Wired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: Built-inDigital Input:HDMI : 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)Audio Output:Stereo Mini: 1Control I/O:RS-232C: 1 (D-Sub 9pin)Digital Output:HDMI Out: 1 (HDCP2.3, supports only HDMI1 input)

Contrast Ratio:

Contrast Ratio:Over 5,000,000:1

Screen Size (Projected Distance):

Screen Size:Standard Size:
80" diagonal 2.33m - 3.78m
Zoom: Wide: 50” – 500” [1.44 – 14.76 m]
Zoom: Tele: 50” – 500” [2.35 - 23.84m]

Geometric Correction:

Vertical/Horizontal Keystone:±30° / ±30°Projection Orientation:360º Free

Operating Temperature:

Single Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
20% - 80% Humidity, No CondensationMulti-projection Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:12 seconds (Epson Logo); Warm-up Period: 30 secondsQuick Start-Up:Less than 8 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Internal Speaker(s):

Sound Output:10 W Monaural

Direct Power On/Off:

Direct Power On/Off:Yes

Weight:

Weight:Approx. 8.2kg

Air Filter:

Type:Electrostatic FilterMaintenance Cycle*2:20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):32dB / 25dB

Specifications Projector:

Size - projected distance:100” diagonal (wide: 9.3’ – tele: 19.8’)Contrast Ratio:Absolute Black (Full White 1500 lm / Full Black 0 lm)Projection Method:Front / rear / ceiling mountProjection System:3LCD Reflective, 3-chip technology Poly-silicon TFT active matrixPixel Number:2,073,600 dots (1920 × 1080) × 3Color Brightness - Color Light Output:1500 lumens *1Projected Output:HD, 2D, 3D, 1080pWhite Brightness - White Light Output:1500 lumens *1Aspect Ratio:Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom ModesDriving Method:Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPSNative Resolution:Native 1080p (1920 × 1080)Laser Type:Laser Diode 41.9 mW (Output)Light Source Life:Up to 20,000 hours (ECO Mode)*2

Power:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 HzPower Consumption (220-240V area):LD On (Normal / Extended):
399W / 295W
Standby (Normal / Eco): 2.4 W / 0.4 W

Colour Mode:

Colour Mode:Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H):440 x 304 x 122 mm

Miracast:

Certification:Wi-Fi CERTIFIED Miracast R2Supported Codec:H.264 (AVC)

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Mode :Infrastructure, Simple AP (Wi-Fi Direct)Supported Speed :IEEE 802.11a/b/g/n/ac/axSecurity Tyре:Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, EAP-TLS
Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

AirPlay 2:

Supported Codec:H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4
