Epson EB-770Fi Full HD 1080P 3LCD Laser Projector

Epson EB-770Fi Full HD 1080P 3LCD Laser Projector

₱127,375.00 PHP
₱127,375.00 PHP
Sale Sold out
Shipping calculated at checkout.

Epson - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

The large, easy-to-read display for captivating interactive lessons.



Offering a large full HD interactive display up to 100", the EB-770Fi provides up to 75 percent more interactive space than a 75" flat panel—while providing a low cost per square inch. With 4,100 lumens of color and white brightness1 and proprietary 3-chip 3LCD technology, the EB-770Fi delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions, from nearly anywhere in the classroom.
Flexible and convenient, it supports standard 16:9 as well as ultra wide 21:9 and 16:6 displays with split screen2 to simultaneously display content from a PC or document camera beside an interactive whiteboard canvas. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever3.

  • 4,100 lumens of colour and white brightness1
  • Full HD 1080p resolution for exceptional image quality
  • Ultra wide 21:9 and 16:6 display with split screen2 support
  • Large interactive display up to 100" (16:9), 110" (16:6 and 21:9)
  • Multi-user capability for easy collaboration

Product Brochure click here

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system

Brightness:

White Light Output (Normal / Extended):4,100lm / 2,800lmColour Light Output:4,100lmContrast Ratio:Over 5,000,000 : 1

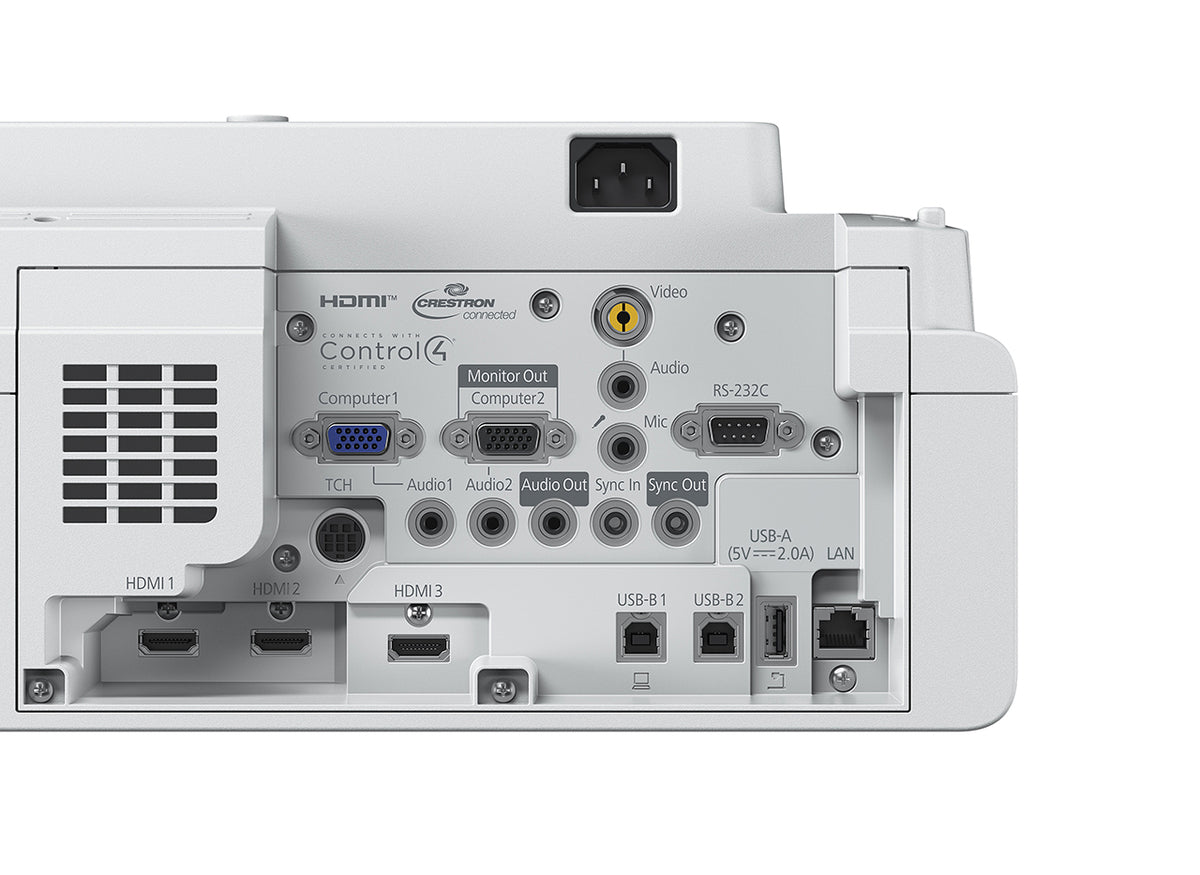

Connectivity:

Analog Input:Computer In: 2
Composite: 1Digital Input:HDMI In: 3 (HDCP 2.3)Analog Output:Computer Out: 1 (Share with Computer2)Audio Input:Audio In: 3 (Stereo Mini)Audio Output:Audio Out: 1 (Stereo Mini)Mic I/O:Mic In: 1 (Stereo Mini)Control I/O:RS232C: 1 (D-sub 9pin)
Interactive Sync: 1 (Stereo Mini)
Finger Touch Unit Control: 1 (Mini DIN 8pin)

USB I/O
Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
Type B: 2 (For FW Update, Copy OSD Settings, USB Display)Network I/O:Wired LAN: 1 (RJ45)
Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:

Vertical/Horizontal Keystone:±3° / ±3°Quick Corner:Yes (Auto / Manual)

Operating Temperature:

Operating Temperature:0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period:Less than 10 seconds (Epson Logo)Quick Start-Up:Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Internal Speaker(s):

Sound Output:16W Mono

Weight:

Weight:Weight: Approx. 6kg

Air Filter:

Type:Electrostatic FilterMaintenance Cycle (Normal / Extended) :12,000 hours / 20,000 hours

Fan Noise:

Fan Noise (Normal / Eco):37dB / 27dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):395 x 356 x 133

Image:

Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Speed for Each mode :Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps4, IEEE 802.11g (2.4GHz): 54Mbps4 IEEE 802.11n (2.4GHz): 72.2Mbps4,
IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps4, IEEE 802.11n (2.4GHz): 72.2Mbps4,
IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4Supported Mode :Infrastructure, Access Point (Wi-Fi Direct)
Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:

Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

Lamp (Normal / Extended):263W / 199WStandby:(Network On / Off): 2.0W / 0.5W

Direct Power On / Off:

Direct Power On / Off:Yes

Specifications of Main Parts:

LCD:Size: 0.62” (C2Fine)
Resolution: Full HDLight Source:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens:Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.25 – 0.35Screen Size (projected distance):Standard: 77” screen 43.3cm
Zoom (Wide):
49” to 123” (32.5 – 89.3 cm) @ 4:3
56” to 140” (32.5 – 89.3 cm) @ 16:6
60” to 150” (32.5 – 89.3 cm) @ 16:9
55” to 139” (32.5 – 89.3cm) @ 16:10
57” to 142” (39.4 – 85.3cm) @21:9
Zoom (Wide): (With Interactive function)
59.9” to 100” (32.5 – 57.7 cm) @ 16:9
55.4” to 100” (32.5 – 71.8 cm) @ 16:10
48.9” to 100” (32.5 – 62.8 cm) @ 4:3
55.7” to 110” (32.5 – 69.2 cm) @ 16:6
56.8” to 110” (32.5 – 67.8cm ) @21:9
