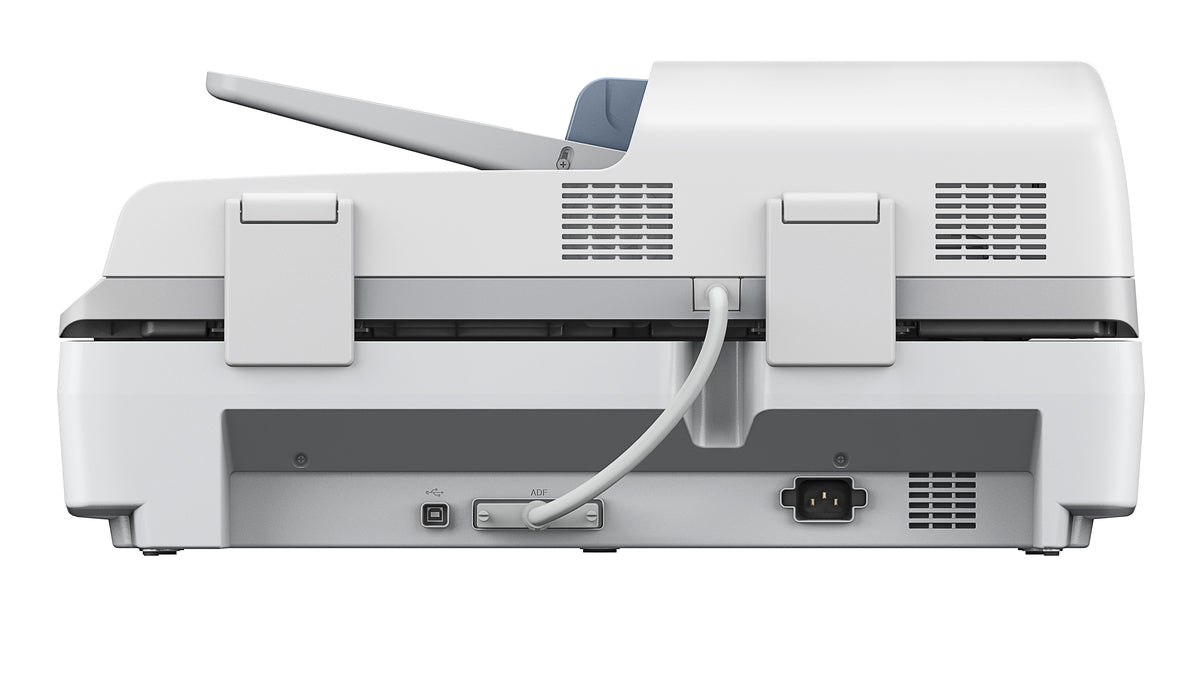

Epson WorkForce DS-60000 (B11B204241) A3 Flatbed Document Scanner with Duplex ADF

Scan Function:

Scanner Type:

A3 flatbed colour image scanner

Sensor Type:

4-line colour CCD

Light Source:

White LED

Optical Resolution:

600 x 600 dpi

Output Resolution:

50 dpi - 4,800 dpi (1 dpi increments), 7,200 dpi and 9,600 dpi

Scanner Bit Depth (Colour):

48-bit input, 24-bit output

Scanner Bit Depth (Grayscale):

16-bit input, 8-bit output

Scanner Bit Depth (Black & White):

16-bit input, 1-bit output

Max Document Size:

297 x 420mm

Output File Formats:

JPEG, TIFF, Multi-TIFF, PDF, BMP
Document Capture Pro (Win): JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX

Scan Speed:

Flatbed (Black / Colour):

300 dpi: 4.0 sec / 4.0 sec
600 dpi: 10 sec / 10 sec

ADF Monochrome (Simplex / Duplex):

200 dpi: 40 ppm / 80 ipm
600 dpi: 20 ppm / 40 ipm

ADF Colour (Simplex / Duplex):

200 dpi: 40 ppm / 80 ipm
300 dpi: 40 ppm / 80 ipm
600 dpi: 7.5 ppm / 15 ipm

ADF Specifications:

Scanner Type:

A3 sheet-fed, one-pass duplex scanner

Optical Sensor:

4-line colour CCD

Light Source:

White LED

Optical Resolution:

600 x 600 dpi

Output Resolution:

50 dpi - 1,200 dpi (1 dpi imcrements)

Min Document Size:

68 x 120 mm

Max Document Size:

297 x 2,540 mm

Support Paper Thickness:

35 - 128 gsm

ADF Capacity:

200 sheets

Automatic Duplex Scanning:

Yes

Daily Duty Cycle:

up to 5,000 sheets / day

Multi-feed Detection:

Ultrasonic Sensor

Connectivity:

Standard:

USB 2.0

Network:

Ethernet (with optional Network Interface Panel)

Supported OS and Applications:

Supported OS:

Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / 2008 / 2012 / 2016 / 2019
Mac OS X 10.6.8 or later

Bundled Applications:

Epson Scan 2, ISIS Driver (Web Download), Document Capture Pro (Win), Epson OCR Component, Epson PDF Extensions

Dimensions and Weight:

Dimensions (W x D x H):

640 x 552 x 289 mm

Weight:

26.9kg

Options:

Options:

Network Interface Panel - B12B808411

Roller Assembly Kit:

B12B813501
