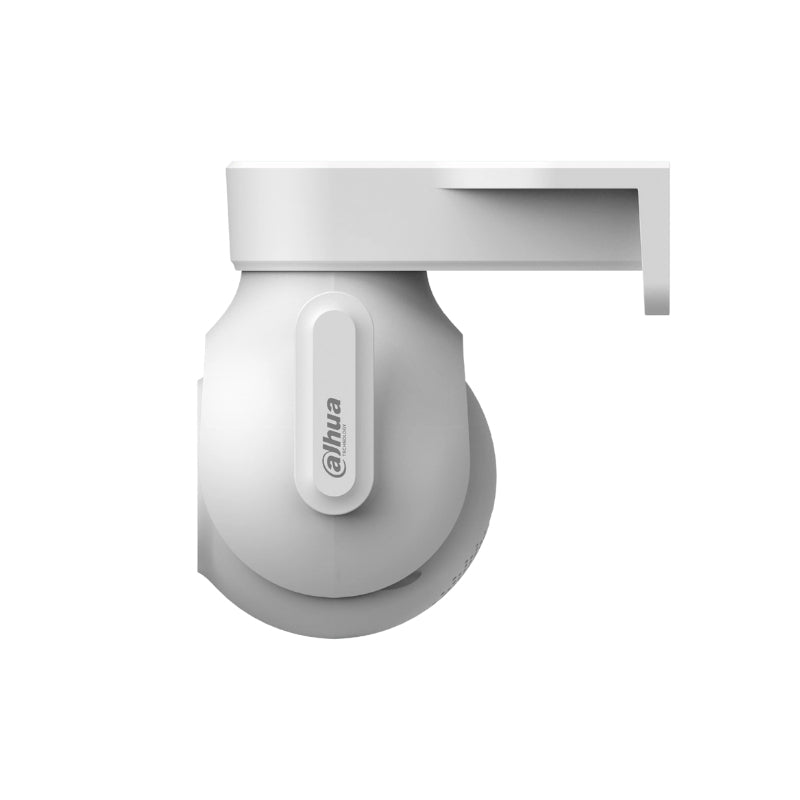

Dahua Picoo B1 DH-P3B-PV 3MP Outdoor Fixed focal Wi-Fi Pan & Tilt Network Camera

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 30 m (98.43 ft) (IR);
Up to 30 m (98.43 ft) (Warm Light)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–355°;
Tilt: 0°–90°

Lens

Max. Aperture

F1.6

Field of View

H: 87°; V: 44°; D: 105°

Intelligence

Vehicle Detection

Yes

Human Detection

Yes

Video

Video Compression

H.265

Video Frame Rate

Mainstream: 2304 × 1296@ (1-25/30 fps)
sub stream: 640 × 360@ (1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

3M (2304 × 1296); nHD (640 × 360)

Video Bit Rate

H.265: 80 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Smart Illumination

Yes

Image Rotation

0°/180°

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE

Power

Power Supply

12 VDC

Power Consumptionc=

Basic: 1.56 W;
Max.: 4.56 W (H.265+warm light on)

Environment

Operating Temperature

–20 °C to +50 °C (–4 °F to +122 °F)

Operating Humidity

≤95%

Stracture

Casing Material

Plastic

Product Dimensions

116 mm × 138 mm × 139 mm (4.57" × 5.43" × 5.47") (L × W × H)

Net Weight

425 g (0.94 lb)
