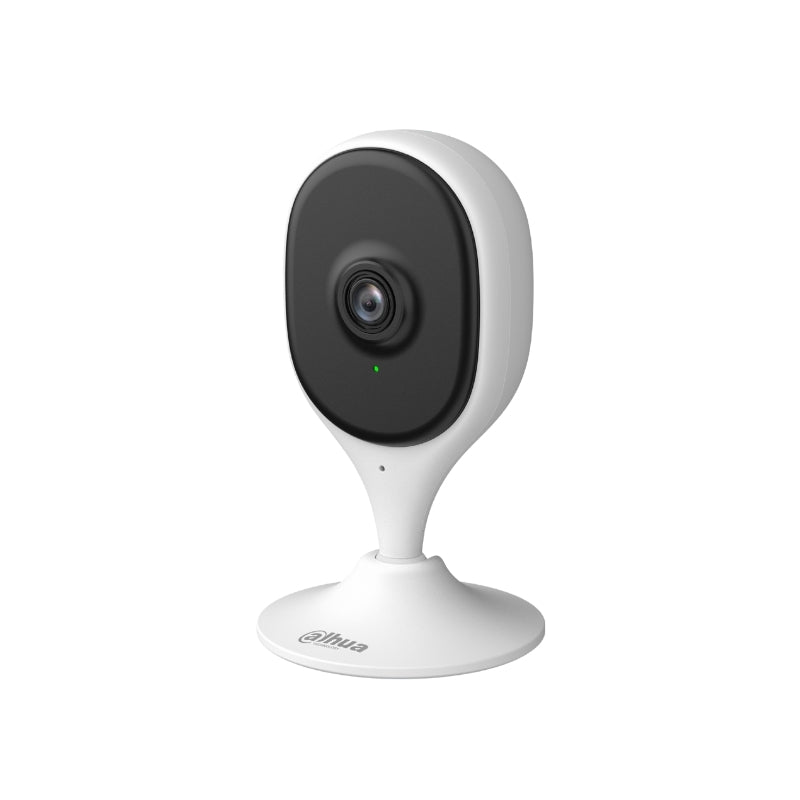

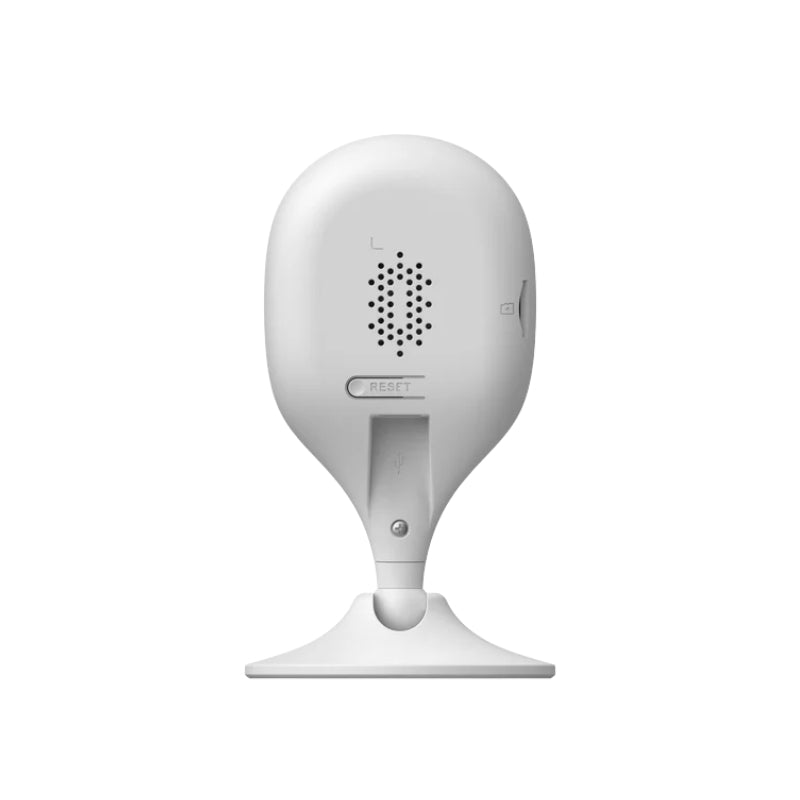

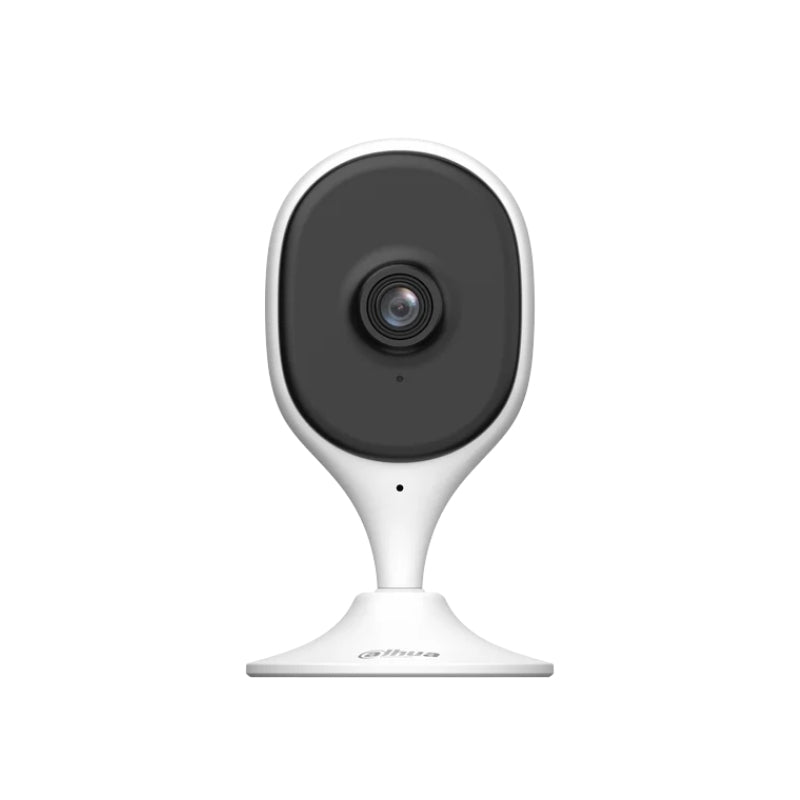

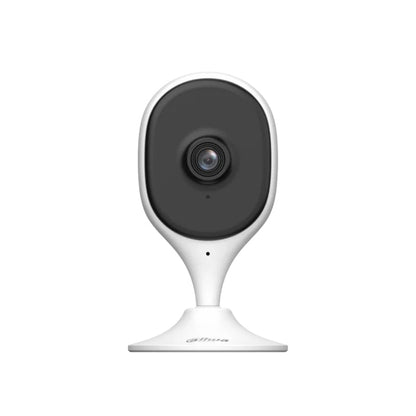

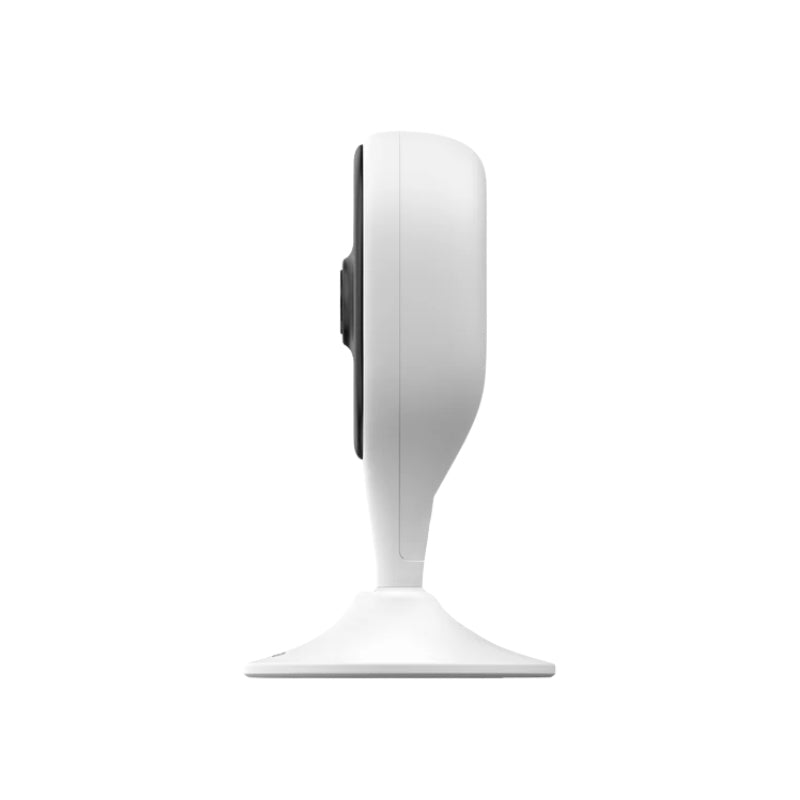

Dahua Cube A1 DH-C5A 5MP Indoor Fixed focal Wi-Fi Cube Network Camera

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 10 m (32.81 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Angle Adjustment

Pan: 0° to 360°;
Tilt: -10° to 70°

Lens

Max. Aperture

F2.0

Field of View

H: 90°; V: 49°; D: 106°

Intelligence

Human Detection

Yes

Video

Video Compression

H.265

Video Frame Rate

Mainstream: 2880 × 1620@ (1-25/30 fps)
sub stream: 640 × 360@ (1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

5M (2880 × 1620); nHD (640 × 360)

Video Bit Rate

H.265: 80 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Network

Wi-Fi

IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE

Power

Power Supply

5 VDC, 1 A

Power Consumption

Basic: 1.65 W;
Max.: 2.75 W (H.265+ IR intensity)

Environment

Operating Temperature

–10 °C to +45 °C (14 °F to +113 °F)

Operating Humidity

≤95%

Structure

Casing Material

Plastic

Product Dimensions

Φ68 mm × 31.9 mm × 119.2 mm (2.68" × 1.26" × 4.69")

Net Weight

95 g (0.21 lb)
