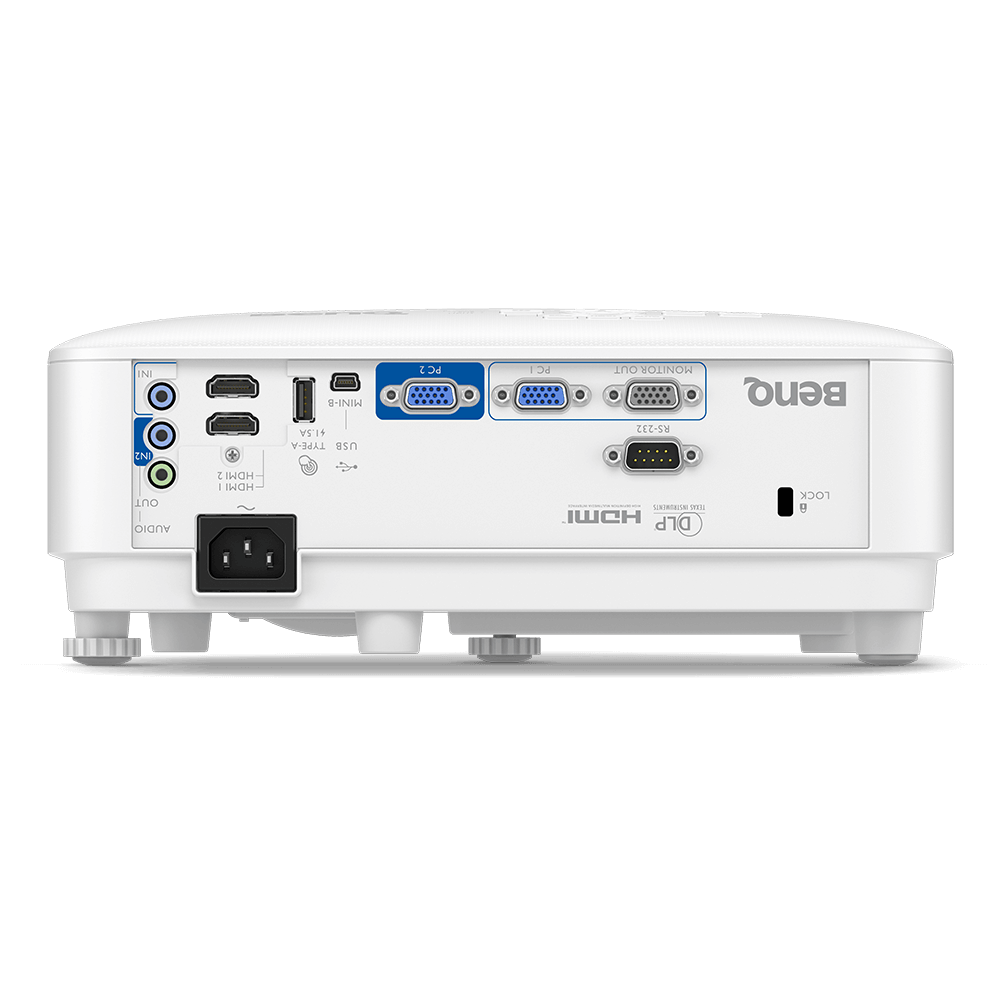

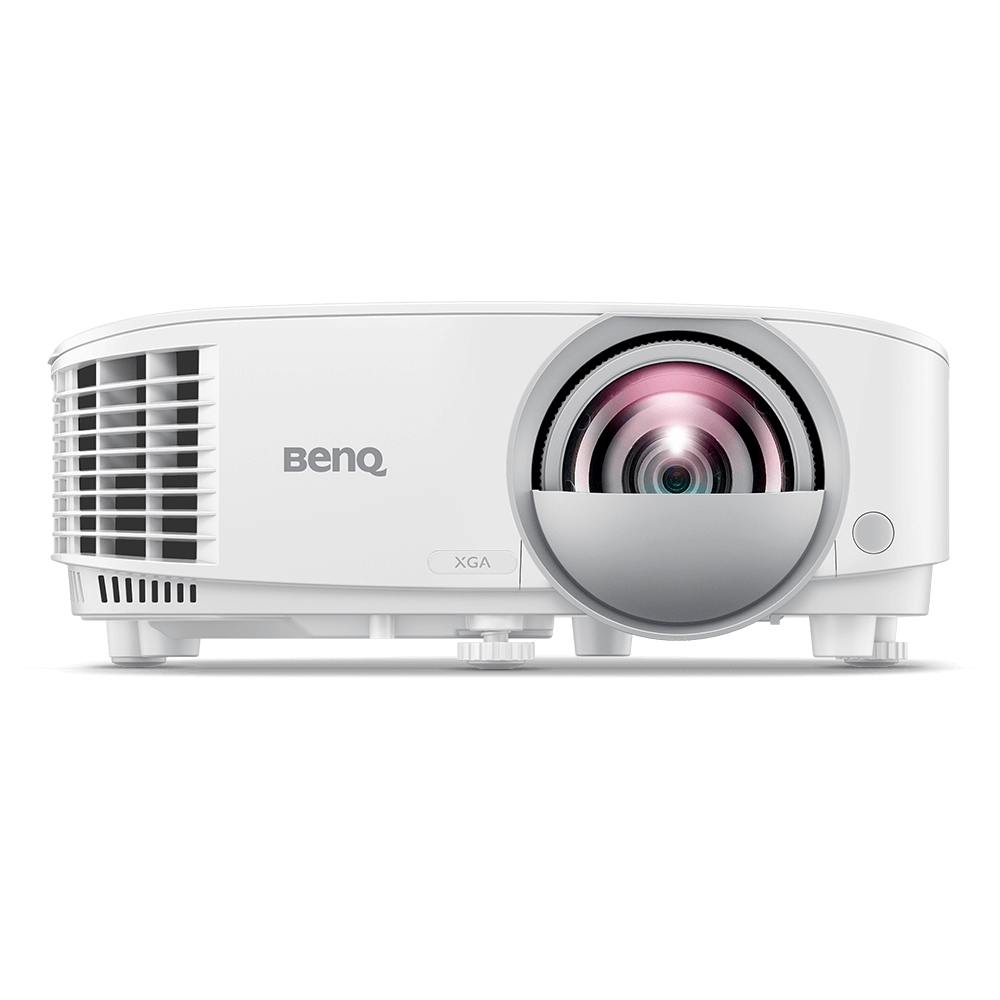

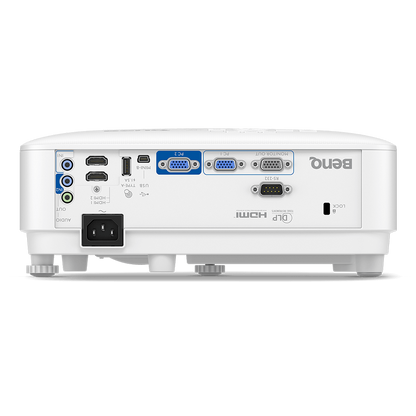

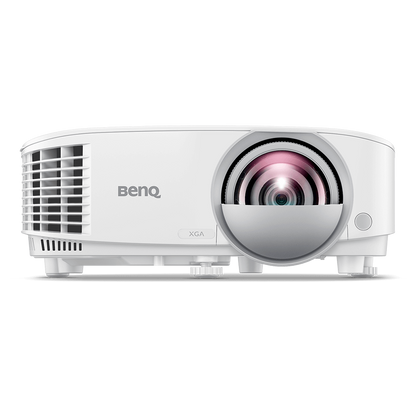

BenQ MX808STHInteractive Classroom Projector with Short Throw, XGA

BenQ MX808STHInteractive Classroom Projector with Short Throw, XGA

₱47,376.00 PHP
₱47,376.00 PHP
Sale Out of Stock
Shipping calculated at checkout.

BenQ Brand - This product is Order Basis. For more details please email at sales@elnstore.com or Viber/iMessage/WhatsApp +63916 329 7178
All Specifications

Display

Brightness (ANSI lumens)
3600
Resolution
XGA (1024x768)
Native Aspect Ratio
4:3
Contrast Ratio (FOFO)
20,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 6000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs

Optical

Throw Ratio
0.61
Zoom Ratio
Fixed
Lens
F/# = 2.6,f = 6.9 mm
Projection Offset (Full-Height)
115%
Keystone Adjustment
1D, Vertical ± 40 degrees


Picture Modes
3D, Bright, Cinema, Presentation, sRGB, User 1, User 2

Compatibility

Input Lag
33.4 ms (1080P 60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz

I/O Interface

PC in (D-sub 15pin)
(x2)
Monitor out (D-sub 15pin)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B
(x1), USB Type Mini B-1(service/Page up&down)
RS232 in (DB-9pin)
(x1)

Audio

Speaker
(x1), 10W
Audio in (3.5mm Mini Jack)
(x2)
Audio out (3.5mm Mini Jack)
(x1)

Environment

Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
260
Acoustic Noise (Typ./Eco.)(dB)
34/29

Accessories

Remote Control w/ Battery
RCE013
Power Cord (by region)
x1 (1.8M)
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Anti-dust Filter
All SKU, (Optional)
Wall Mount
(Optional), WM06G3

Dimension & Weight

Dimensions (WxHxD) (mm)
296 x120 x239
Net Weight (kg)
2.6

Projection System

Projection System
DLP

General Specifications

Audio
34/29 dBA (Normal/Economic mode)

Optical

Throw Ratio
0.61
Zoom Ratio
Fixed
Projection Offset
115%+-2.5% (Full-Height)
Clear Image Size (Diagonal)
60"~120"
Keystone Adjustment
1D, Vertical +/- 30 degrees
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

Display

Projection System
DLP
Brightness
3600AL
Contrast Ratio*
20000:1
Display Color
1.07 Billion Colors
Aspect Ratio
Native 4:3 (5 aspect ratio selectable)
Native Resolution
XGA(1024X768)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB-Reduced Blanking

Audio

Built-in Speaker
10Wx 1

Connectivity

HDMI
x2
PC (D-sub 15pin)
x 2
Monitor out (D-sub 15pin,Female)
x 1
Audio in(mini jack)
x2
Audio out (mini jack)
x 1
RS232 In (D-sub 9pin, male)
x 1
USB TypeA-2 (5V,1.5A)
x1 (power only 5V/1.5A)
USB Type mini B
x1 (Download & page/down)

Compatibility

HDTV Compatibility
480i, 480p, 576i, 567p, 720p, 1080i, 1080p

Dimension and Weight

Product Dimensions (WxHxD)
296 (W)*239(D)*120(H) mm
Product Weight
2.6 Kg (5.7 lbs)

Accessories

Standard
Remote Control w/ Battery
Power Cord (by region)
Quick Start Guide
Warranty Card (by region)
RCE013, RCE013J (for J sku)
Optional
PointWrite PW03
FingerTouch PT20
Spare Lamp Kit 5J.JMG05.001
Wall Mount WM06G3
Dust Filter 5J.JGV14.001

OSD

On Screen Display Language
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages) ‎

InstaShow Button

Power Supply
AC 100 to 240 V, 50/60 Hz
Power Consumption
260W(typical), Standby<0.5W
