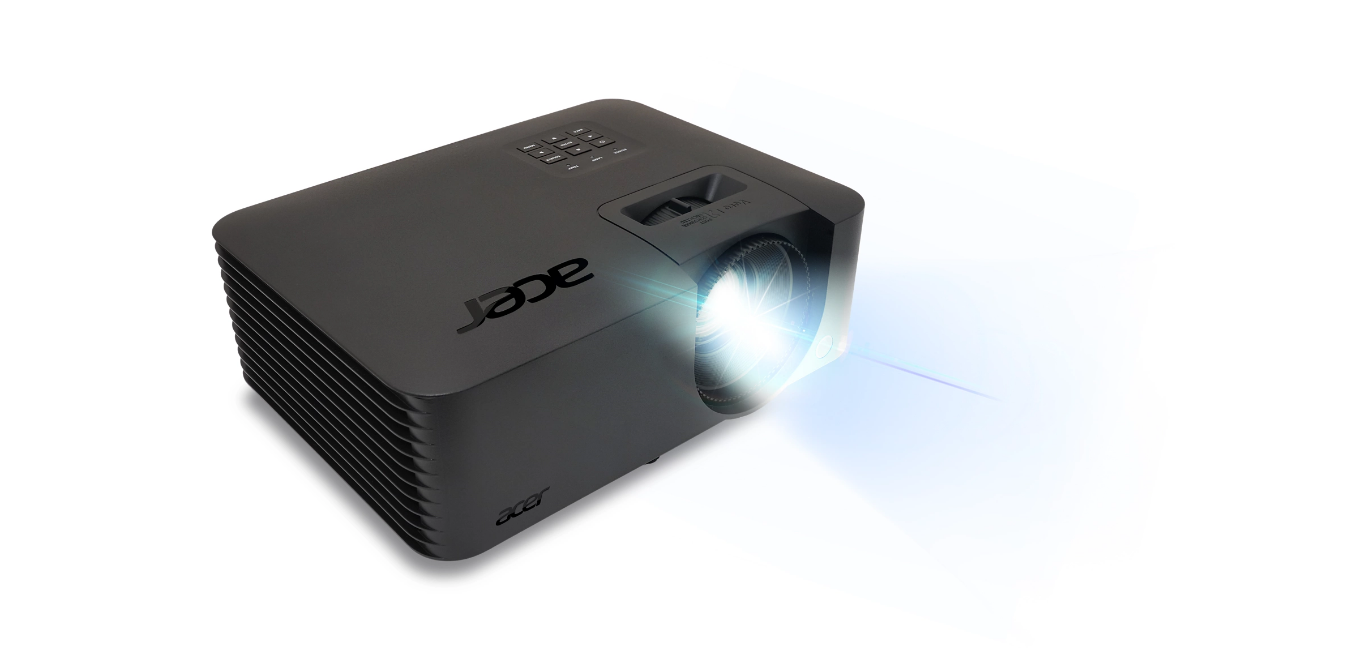

Acer XL2320 (MR.JW911.007) 3,500 ANSI Lumens WXGA LampType: Laser Diode LampLife: 20,000 Hours HDMI 1.4b 145W Watts
| Brightness | 3,500 ANSI Lumens (Standard), 2480 ANSI Lumens (ECO) (Compliant with ISO 21118 standard) |
| 2,800 ANSI Lumens (ECO), (Compliant with ISO 21118 standard) | |
| Native Resolution | WXGA (1,280 x 800) |
| Max Supported Resolution | WUXGA (1,920 x 1,200) |
| Aspect Ratio | 16:10 (Native),'4:3/16:9 (Supported) |
| Contrast Ratio | 2,000,000:1 |
| Optical Zoom Ratio | 1.1X |
| Throw Ratio | 1.54~1.72 (60"@2m) |
| Projection Lens | F = 2.41 ~ 2.53 f = 21.85mm ~ 24.01mm Manual Zoom & Focus |
| Projection Screen Size | 30" ~ 300" (76.2cm ~ 762cm) |
| Projection Distance | 1m ~ 10m (3.3' ~ 32.8') |
| Lens Shift | N/A |
| Keystone Correction | +/-40° (Vertical, Manual & Auto), |
| Audio | 15W Speaker x 1 |
| Lamp Type | Laser Diode |
| Lamp Life | 20,000 Hours (Standard), 30,000 Hours (ECO) |
| Noise Level | 27 dBA (ECO) |
| Weight | 2.9kg (6.4 lbs) |
| Dimensions | 286 x 216 x 115.5 mm (w/ feet) (11.3" x 8.5" x 4.5") |
| Input Interface | HDMI 1.4b (Video, Audio, HDCP) x 2 |
| PC Audio (Stereo mini jack) x 1 DC Out (5V/1.5A, USB Type A) x 1 |
|
| DC Out (5V/1.5A, USB Type A) x 1 | |
| Output Interface | PC Audio (Stereo mini jack) x 1 DC Out (5V/1.5A, USB Type A) x 1 |
| DC Out (5V/1.5A, USB Type A) x 1 | |
| Control Interface | RS232 (D-sub) x 1 |
| Network Interface | N/A |
| Standard Accessories | AC power cord |
| AC to DC power adapter | |
| Remote control | |
| Battery for remote control | |
| Lens cap | |
| Quick start guide | |
| Optional Accessories | HDMI cable |
| 3D glasses | |
| WirelessCAST (via USB Power) | |
| WirelessMirror | |
| Carrying case | |
| Multimedia Playback | N/A |
| Supported Multimedia Formats | N/A |
| Ethernet Network Capability (LAN) | N/A |
| Wireless Capability | Yes (By optional WirelessCAST, WirelessHD-Kit, WirelessMirror) |
| Battery | N/A |
| Battery Life | N/A |
| Projection System | DLP® |
| Display Panel | 0.65" DarkChipTM 3 DMD |
| Displayable Colors | 1.07 Billion Colors |
| Projection Mode | Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability | Yes |
| Remote Control | IR card type remote control |
| Digital Zoom | 2X |
| Power Supply | AC input 100~240V, 50/60 Hz |
| Power Consumption | 145W Watts (Standard), 105 Watts (ECO), <0.5 Watts (Standby) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 80%RH (Max.) |
| Safety Model No. | DWX2202 |
| Projector Gross Weight (KG) | TBA |
| Projector Box Dimensions (L x W x H in cm) | TBA |
| Warranty | 2-2-0 |
