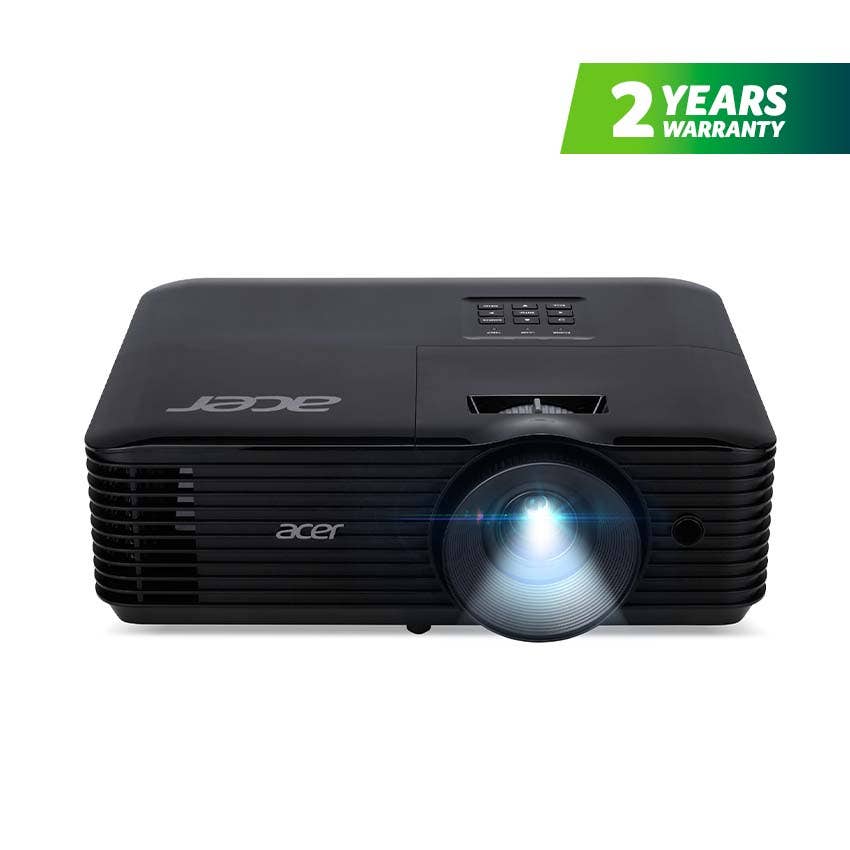

Acer X1328Wi WXGA (1280 x 800) DLP Projector Wireless
Acer X1328Wi WXGA (1280 x 800) DLP Projector Wireless
Acer - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.
Couldn't load pickup availability
Whether you use it in the office or at home you’ll get crisp, cinema-level projection. Make clear presentations or gather your friends to play games or watch sports with up to 5000 lumens of brightness, wireless projection, Football Mode, HDMI 3D and a lifetime of reliable 24/7 operation.
Native Resolution
- 1280 x 800
Maximum Resolution
- 1920 x 1200
Standard Mode Brightness
- 5000 lm
Compatible Aspect Ratio
- 4:3
- 16:9
Native Aspect Ratio
- 16:10
Contrast Ratio
- 20,000:1
Digital Zoom
- 2x
Vertical Keystone Correction
- -40°/+40°
Maximum Vertical Sync
- 120 Hz
Minimum Vertical Sync
- 24 Hz
Maximum Horizontal Sync
- 100 kHz
Minimum Horizontal Sync
- 15 kHz
Colour Supported
- 1.07 Billion Colors (30-bit)
Uniformity
- 80%
Graphic Mode
- WXGA
Standard Mode Brightness Disclaimer
- Compliant with ISO 21118 standard
Projection Lens
Lens Type
- Manual Zoom
- Manual Focus
Minimum Focal Length
- 21.85 mm
Maximum Focal Length
- 24 mm
Minimum Diagonal Image Size
- 685.80 mm
Maximum Diagonal Image Size
- 7.62 m (300")
Minimum Projection Distance
- 1 m
Maximum Projection Distance
- 10 m
Optical Zoom
- 1.1x
Lamp
Number of Lamps
- 1
Lamp Power
- 220 W
Interfaces/Ports
USB
- Yes
Number of Composite Video Ports
- 1
Composite Video
- Yes
Number of VGA Inputs
- 1
VGA In
- Yes
Number Of Audio Inputs
- 1
Number Of Audio Outputs
- 1
Audio Line In
- Yes
Audio Line Out
- Yes
RS-232 (D-sub)
- 1
VGA In
- x1, D-sub
Video
- x1, RCA
Audio In
- x1, 3.5mm mini jack
Audio Out
- x1, 3.5mm mini jack
S/PDIF
Speaker
- x1, 3 W Speaker
- x1, 3 W Speaker
Technical Information
Projection System
- DLP
Projection Method
- Front
- Rear
- Ceiling
- Rear Ceiling
Video Compatibility
- NTSC
- PAL
- SECAM
- HDTV
- EDTV
- SDTV
Computer Compatibility
- Windows PC
- Mac PC
- Google Chrome PC
Offset
- 124%
Noise Level (Economy Mode)
- 27 dB
Audio
Number of Speakers
- 1
Speaker Output Power
- 3 W
Speaker Output Mode
- Mono
Network & Communication
Wireless Capability
- EZCast
- Miracast Wi-Fi
Display/Image
Projection System
- DLP™
Light Source
- 220 W
Native Resolution
- 1280 x 800
Maximum Resolution
- 1920 x 1200
Brightness
- 5000 ANSI Lumens (Standard), (Compliant with ISO 21118 standard)
Aspect Ratio
- 16:10 (Native), 4:3 (Supported), 16:9 (Supported)
Contrast Ratio
- 20,000:1
Image Size
- 27" (68.6 cm) ~ 7.62 m (300")
Zoom Ratio
- 1.1x
Digital Zoom
- 2x
Lens
- f = 21.85 mm~24 mm, Manual Zoom, Manual Focus
Projection Mode
- Front, Rear, Ceiling, Rear Ceiling
Display Colour
- 1.07 Billion Colors (30-bit)
- 1.07 Billion Colors (30-bit)
Vertical Sync Rate
- 24 ~ 120 Hz
Horizontal Sync Rate
- 15 to 100 kHz
Control & Network
RS232
- x1, D-sub
Wireless Projection
- EZCast, Miracast Wi-Fi
General
Noise Level
- 27 dB
Security
- Kensington Lock
- Security Bar
Power Description
Input Voltage
- 120 V AC
- 230 V AC
Operating Power Consumption
- 265 W
Standby Power Consumption
- 500 mW
Physical Characteristics
Installation
- Ceiling Mount
Security
- Kensington Lock
- Security Bar
Weight (Approximate)
- 2.75 kg
Form Factor
- Ceiling Mountable
Height
- 113.7 mm
Width
- 313 mm
Depth
- 240 mm
Miscellaneous
Optional Accessories
- Carrying Case (MC.JPV11.005)
- Lamp (MC.JR711.008)
Standard Accessories
- AC Power Cord
- Battery for remote control
- Lens Cap
- Quick Start Guide
- Remote Control
- Security Card
- VGA Cable
- Carrying Case
