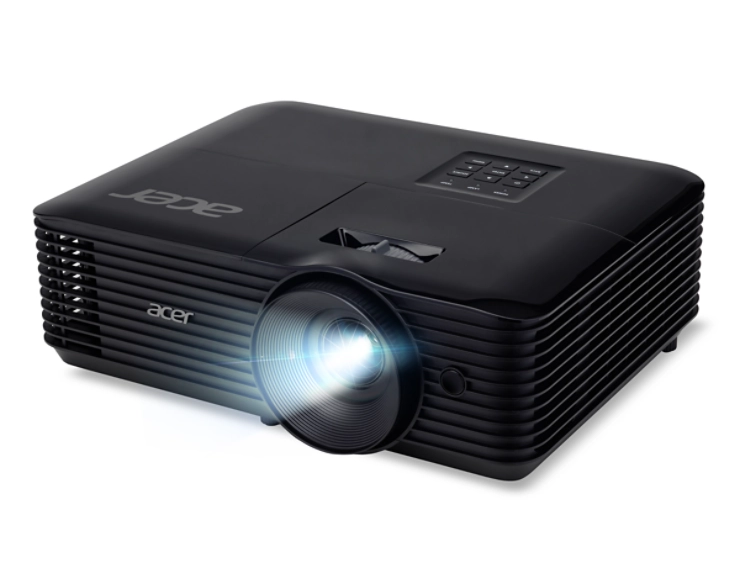

Acer X1326AWH (MR.JR911.007) 4,000 ANSI Lumens WXGA WUXGA Lamp Life: 6,000 Hours Contrast Ratio:20,000:1 3W Speaker HDMI AV In-Out USB
| Brightness | 4,000 ANSI Lumens (Standard) |
| 3,200 ANSI Lumens (ECO) | |
| Native Resolution | WXGA (1,280 x 800) |
| Max Supported Resolution | WUXGA (1,920 x 1,200) |
| Aspect Ratio | 16:10 (Native), 16:9; 4:3 (Supported) |
| Contrast Ratio | 20,000:1 |
| Optical Zoom Ratio | 1.1X |
| Throw Ratio | 1.54 ~ 1.72 (60"@2m) |
| Projection Lens | F= 2.41~2.53, f = 21.85~24.00mm, Manual Zoom & Focus |
| Projection Screen Size | 27" ~ 300" (75cm ~ 762cm) |
| Projection Distance | 1.0m ~ 10.0m (3.3' ~ 32.7') |
| Lens Shift | N/A |
| Keystone Correction | +/-40° (Vertical, Manual & Auto) |
| Audio | 3W Speaker x 1 |
| Lamp Type | Philips 220W |
| Lamp Life | 6,000 Hours (Standard), 10,000 Hours (ECO), 15,000 Hours (ExtremeEco)* * ) Lamp Life of ExtremeEco mode is based on an industrial standard of educational usage cycle, which consists of 45 minutes of Full, ECO and/or Dynamic modes, 75 minutes of ExtremeEco (lowest lamp power) mode and 15 minutes of Power Off mode |
| Noise Level | 32 dBA (Standard), 24 dBA (ECO) |
| Weight | 2.8 Kg (6.17 lbs) |
| Dimensions | 313 x 240 x 113.7mm (12.3" x 9.4" x 4.5") |
| Input Interface | Analog RGB/Component Video (D-sub) x 1 |
| HDMI1.4a (Video, Audio, HDCP) x 1 | |
| PC Audio (Stereo mini jack) x 1 | |
| Composite Video (RCA) x 1 | |
| Output Interface | PC Audio (Stereo mini jack) x 1 |
| DC Out (5V/1A, USB Type A) x 1 | |
| Analog RGB (D-sub) x 1 | |
| RS232 (D-sub) x 1 | |
| Control Interface | USB (Type A) x 1, share output port |
| N/A | |
| Network Interface | AC power cord |
| Standard Accessories | VGA cable |
| Remote control | |
| Battery for remote control | |
| Lens cap | |
| Carrying case (Optional by P/N) | |
| Quick start guide | |
| Security card | |
| Optional Accessories | 3D glasses |
| Dust filter | |
| WirelessCAST | |
| WirelessMirror | |
| Multimedia Playback | N/A |
| Supported Multimedia Formats | N/A |
| Ethernet Network Capability (LAN) | N/A |
| Wireless Capability | Yes (By optional WirelessCAST, WirelessMirror) |
| Battery | N/A |
| Battery Life | N/A |
| Projection System | DLP® |
| Display Panel | 0.65" DarkChip™ 3 DMD |
| Displayable Colors | 1.07 Billion Colors |
| Projection Mode | Front, Rear, Front-Ceiling, Rear-Ceiling |
| Ceiling Mounting Capability | Yes |
| Remote Control | IR remote control |
| Digital Zoom | 2X |
| Power Supply | AC input 100~240V, 50/60 Hz |
| Power Consumption | 275Watts (Standard), 205 Watts (ECO), <0.5 Watts (Standby) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 80%RH (Max.) |
| Safety Model No. | DNX1843 |
| Projector Gross Weight (KG) | 3.8 KG |
| Projector Box Dimensions (L x W x H in cm) | 40 x 16.8 x 34 |
| Warranty | 2-2-0 |
