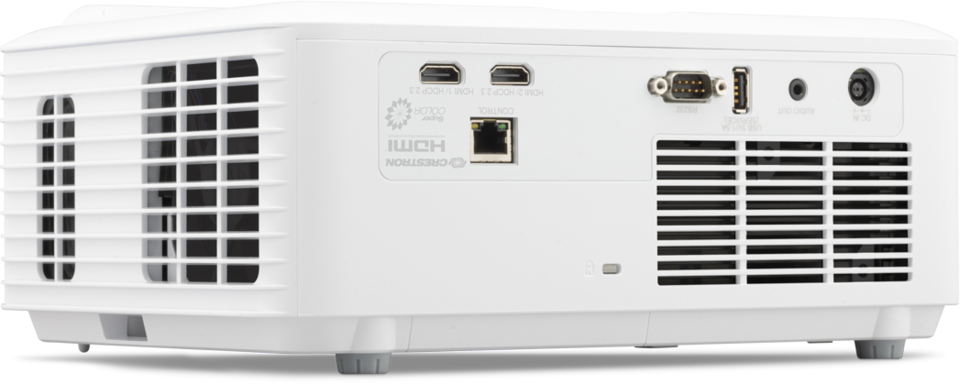

ViewSonic LSD500-4K 5,000 ANSI Lumens 4K Laser Installation Projector

• True 4K HDR delivers exceptional image clarity and detail
• 5,000 ANSI Lumens offering bright images in any environment
• 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Centralized LAN control for efficient management
• Installation flexibility: 1.6x optical zoom, H/V keystone, 360° projection, and portrait mode

OVERVIEW

Introducing the LSD500-4K from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring 5,000 ANSI Lumens of brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning 4K UHD visuals on screens up to 300 inches. Perfect for commercial and educational institutions, the LSD500-4K’s ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. Comprehensive LAN control ensures seamless integration into corporate networks. Its 1.6x optical zoom allows for a flexible setup to suit various installation needs, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Employing advanced 3rd generation laser phosphor technology, the LSD500-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for businesses and large venues.

Product link: ViewSonic LSD500-4K 5,000 ANSI Lumens 4K Laser Installation Projector - ViewSonic Global

• Specification
  Projection System: 0.65" 4K UHD
  Native Resolution: 3840x2160
  Brightness: 5000 (ANSI Lumens)
  Brightness (Center Lumens): 5500
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.5-3.26, f=20.91-32.62mm
  Projection Offset: 128% +/- 10%
  Throw Ratio: 1.4-2.24
  Optical Zoom: 1.6X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.93-14.88m
  (100"@3.10m)
  Keystone: H:+/-30° , V:+/-30°
  Audible Noise (Normal): 32dB
  Audible Noise (Eco): 27dB
  Input Lag: 4.2ms
  Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-150KHz
  Vertical Scan Rate: 24-240Hz

• Input
  HDMI: 2
  (HDMI 2.0, HDCP 2.3)

• Output
  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/1.5A)


• Control
  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)

• Others
  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 11.79A
  Power Consumption: Normal: 165W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 3.10kg (6.83 lbs)
  Gross Weight: 4.80KG (10.58 lbs)
  Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm (11.3x8.5x5.1 in)
  Packing Dimensions: 400x280x155mm (15.7x11x6.1 in)
  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

• Standard Accessory
  Power Cord: 1
  Remote Control: 1
  QSG: Yes
  Warranty Card: Yes (CN Only)

• Optional Accessory
  Wall/Ceiling Mount: PJ-WMK-007
  Carry Bag: PJ-CASE-008
