Prolink PVS10001AD 10KVA Servo Motor Controlled AVR with Digital Display
Prolink PVS10001AD 10KVA Servo Motor Controlled AVR with Digital Display
Prolink Brand - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days, Island Plus 2 days. Availability of stock is subject to change without prior notice.
受取状況を読み込めませんでした
AVR Servo Motor Controlled with Digital Display - 1KVA to 10KVA
PVS series voltage stabilizer consists of voltage regulator, sampling control circuit and servo motor to provide more stabilized output to the connected loads.
Servo motor controlled design
Stepless voltage correction
Fast response time
Capacity
PVS1001AD: 1000VA/800W
PVS2001AD: 2000VA/1600W
PVS3001AD: 3000VA/2400W
PVS5001AD: 5000VA/4000W
PVS7501AD: 7500VA/5600W
PVS10001AD: 10000VA/8000W
Input nominal voltage
230 VAC
Input voltage range
130 - 270VAC
Input frequency range
50/ 60Hz
Output frequency
1000VA: 110 or 230VAC single phase ± 1-3%
2000VA, 3000VA, 5000VA, 7500VA, 10000VA:
220 or 230VAC single phase ± 1-3%
Efficiency
>90%
Full protection
Over-voltage, under-voltage, over-heat and over-current protection
Response time
< 1 second (against 10% input voltage variation)

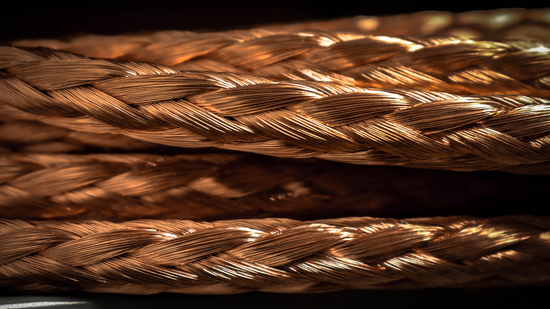

High quality winding
Superior electrical and thermal conductivity yield high energy performance and efficiency.
Selectable output voltage
Select between 220VAC and 230VAC output voltage to be compatible with more load types.
Servo Motor controlled design
Provides stable output to load
Advanced Protection
Provide under-voltage, over-voltage, over-heat, and over-current protection. In addition, it suppresses surges and spikes for your
Suitable for household usage
Stabilize household appliances such as fridge and home medical equipment from voltage fluctuations.
