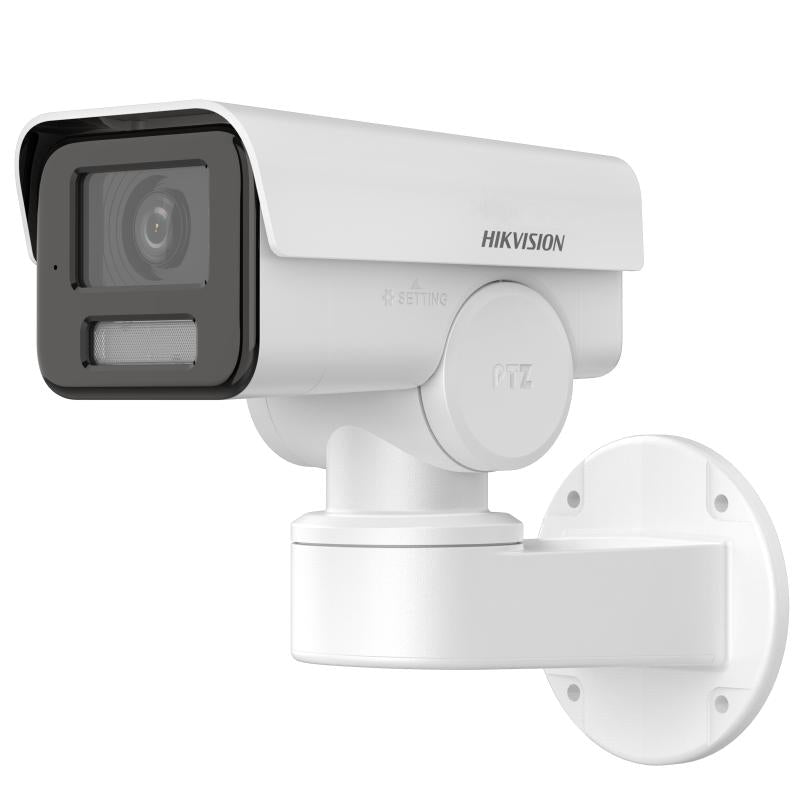

HIKVISION DS-2CD1P47G2-L 4MP ColorVu Fixed Bullet PT Network Camera

HIKVISION DS-2CD1P47G2-L 4MP ColorVu Fixed Bullet PT Network Camera

通常価格 ₱5,470.00 PHP
通常価格 セール価格 ₱5,470.00 PHP
セール 売り切れ
配送料はチェックアウト時に計算されます。

HIKVISION - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days. Availability of stock subject to change without prior notice.

  • High quality imaging with 4 MP resolution
  • 24/7 colorful imaging
  • Pan and tilt ability that enables the camera to capture larger and interested areas
  • Water and dust resistant (IP66)
  • Efficient H.265+ compression technology
  • Support Human and Vehicle Detection
  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & Night24/7 color imaging
  • Angle AdjustmentPan: -100° to 100°,tilt: -20° to 45°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113°

    4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89°



  • Lens MountM12
  • Iris TypeFixed
  • ApertureMax. F1.0
  • DORI
  • DORI

    2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m

    4 mm: D: 82 m, O: 32 m, R: 16 m, I: 8 m

  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz:

    20 fps (2560 × 1440)

    25 fps (1920 × 1080, 1280 × 720)

    60 Hz:

    20 fps (2560 × 1440)

    24 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Type-U: Mono sound
  • Environment Noise Filtering-U: Yes
  • Audio Sampling Rate-U: 8 kHz/16 kHz
  • Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • User/Host

    Up to 32 users

    3 levels: Administrator, Operator and User

  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse
  • Privacy Mask4 regions of privacy mask
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Built-in Microphone-U: Yes
  • Reset Key



    -F: Yes

  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
  • General
  • Power

    12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W

  • MaterialFront cover: metal, body: plastic, bracket: plastic
  • Dimension197.1 mm × 105 mm × 225.4 mm (7.8" × 4.1" × 8.9")
  • Package Dimension300 mm × 266 mm × 172 mm (11.8" × 10.4" × 6.8")
  • WeightApprox. 900 g (2.0 lb.)
  • With Package WeightApprox. 1520 g (3.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-banding, heartbeat, password protection, password reset via email
  • Approval
  • EMC



    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP66: IEC 60529-2013
