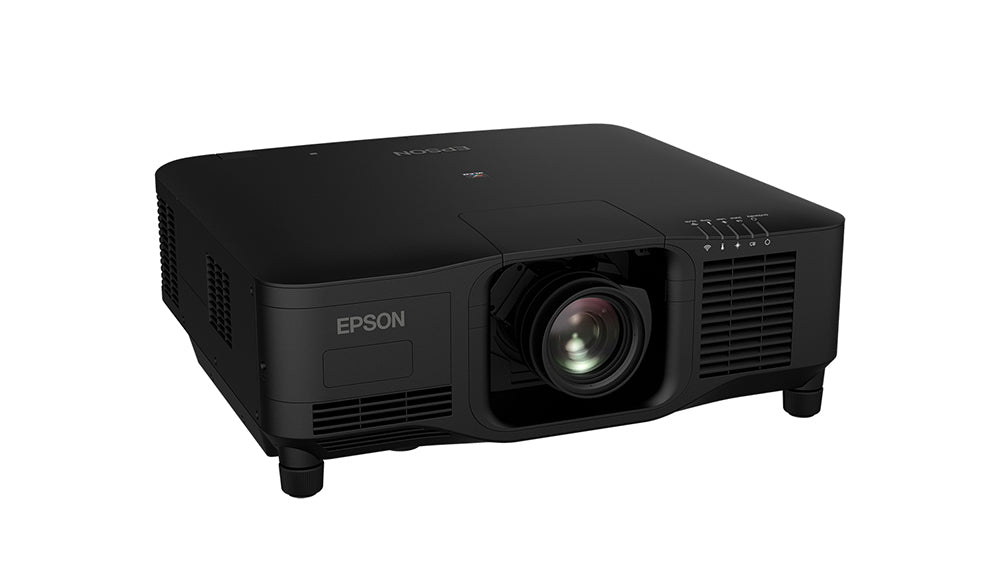

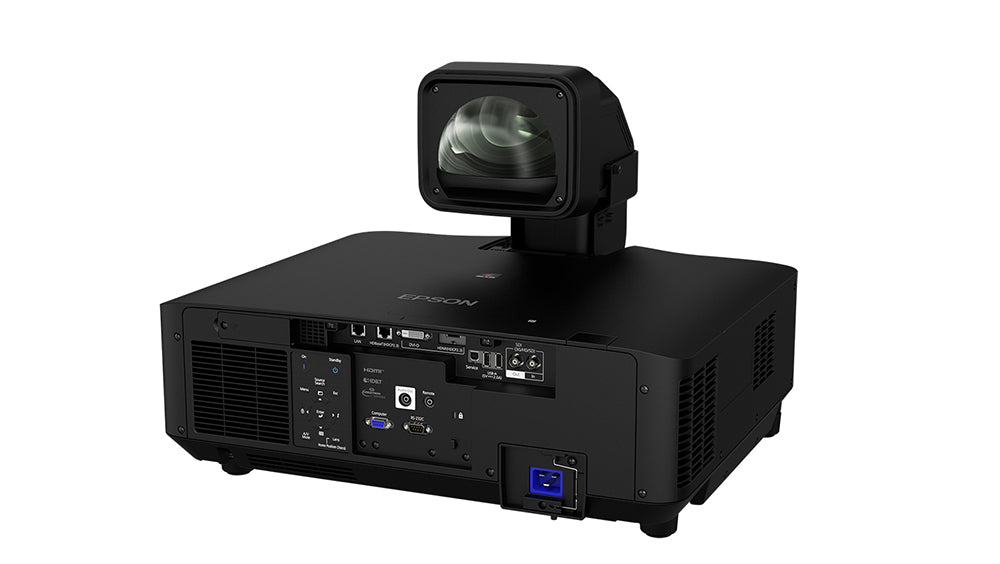

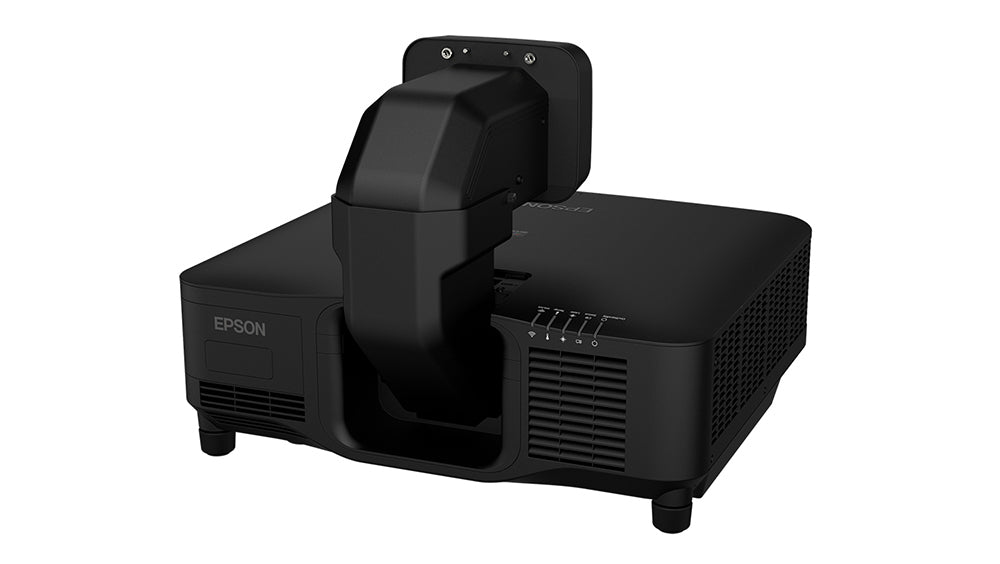

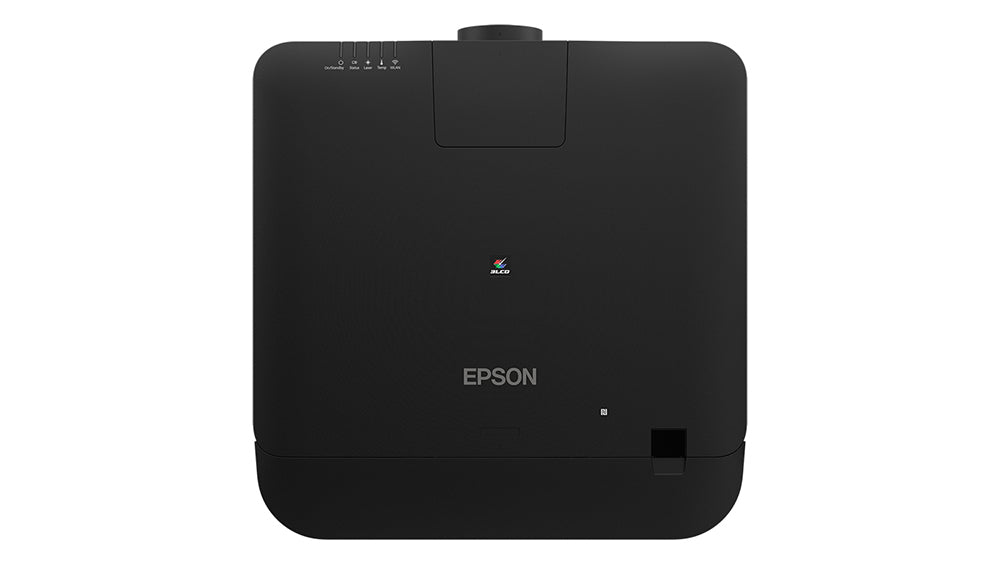

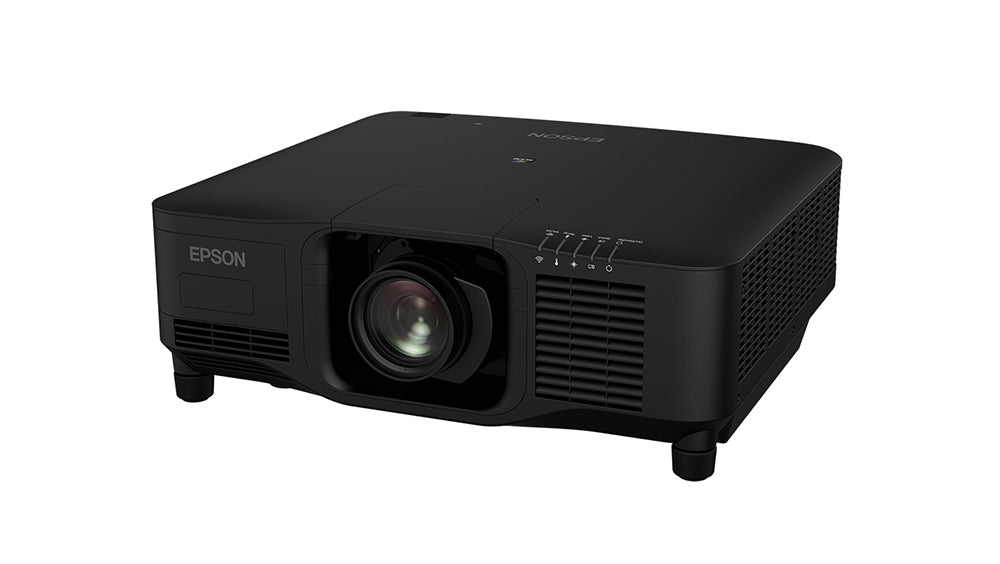

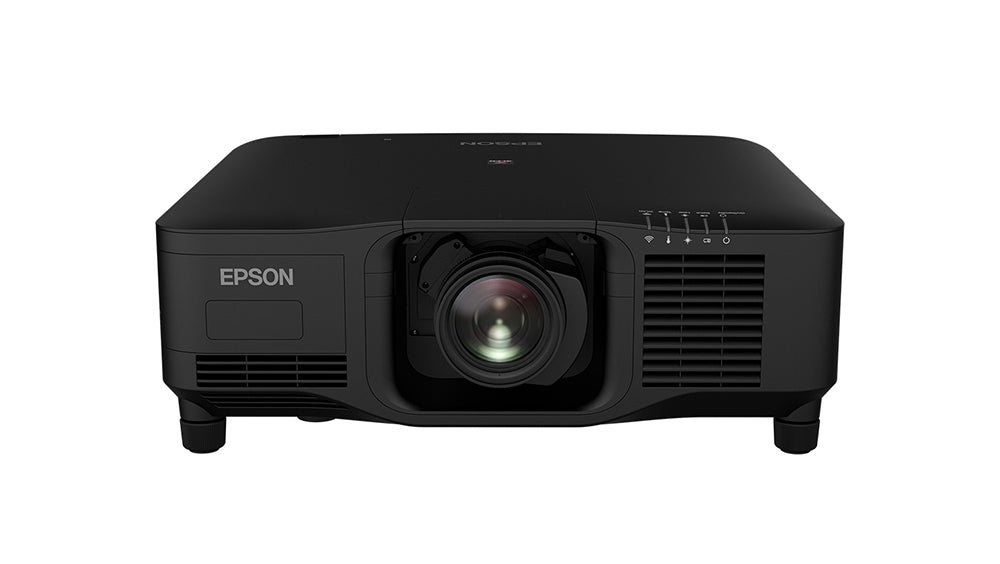

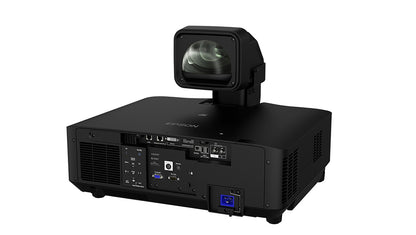

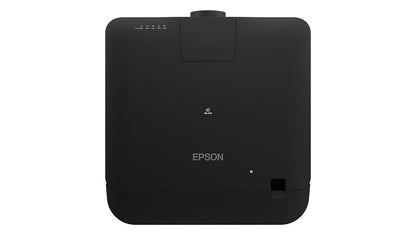

Epson EB-PU2213B 13,000-Lumens 3LCD Large Venue Laser Projector with 4K Enhancement (V11HA68840)

Experience the power and flexibility of the EB-PU2213B 13,000-lumen² large venue laser projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2213B uses a 20,000-hour virtually maintenance-free laser light source³. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality⁴, and the optional attachable camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.

• • 13,000 lumens of equal white and color brightness²
  • WUXGA with 4K Enhancement¹
  • 20,000-hour virtually maintenance-free laser light source³
  • 9 optional powered lenses (sold separately)



  ncredible Color
  Epson 3-chip 3LCD technology produces 13,000 lumens of equal white and color brightness². The EB-PU2213B is also equipped with the new and more efficient 4-in-1 laser light source technology.



  WUXGA with 4K Enhancement¹
  Accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image.



  Engineered for reliability
  Hermetically sealed IP5X certified optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation.



  Epson Projector Config Tool for Easy Set Up
  Using NFC wireless communications technology to change projector settings and check equipment information, the Epson Projector Config Tool is an app that allows you to configure network and projection settings in advance, even when the projector is switched off. Allowing management across your fleet of projectors, this tool helps to reduce time and effort required, increasing efficiency.



  Projection Technology:

  ---

  Projection Technology:RGB liquid crystal shutter projection system (3LCD)

  Connectivity:

  ---

  Network:Wired LAN: RJ45 x 1
  Wireless: Optional (ELPAP11)Analog Input:D-Sub 15Pin: 1 (Blue)Digital Input:DVI-D: 1 (HDCP 1.4)
  HDMI: 1 (HDCP 2.3)
  BNC (SD/HD/3G-SDI): 1
  HDBaseT (RX): 1 (HDCP 2.3)Audio Output:Stereo Mini Jack: 1Control I/O:RS-232C: 1 (D-Sub 9pin)
  Remote: 1 (Stereo Mini)Digital Output:SDI (SD/HD/3G-SDI): BNC x 1Others:USB Type A: 2 (For ELPEC01, Firmware Update, Copy OSD settings or 5V/2A power supply, Content Playback, Wireless LAN)
  USB Type B: 1 (For service)

  Projection Lens:

  ---

  Type:Power Zoom / Power FocusFocal Length:36.0 - 57.40 mmZoom Ratio:1 - 1.6F-number:1.8 – 2.3Lens Shift:Vertical: ±60% (Powered)
  Horizontal: ±18% (Powered)Throw Ratio Range:1.57 – 2.56 (Wide – Tele)Lens Exchange:Yes

  Contrast Ratio:

  ---

  Contrast Ratio:Over 5,000,000:1

  Wireless Specifications (Wireless LAN: Built-in):

  ---

  Supported Speed for Each Mode :Infrastructure:
  IEEE 802.11b (2.4GHz): 11 Mbps³ / IEEE 802.11g (2.4GHz): 54 Mbps³ / IEEE 802.11n (2.4GHz): 72.2 Mbps³ / IEEE 802.11a (5GHz): 54 Mbps³ / IEEE 802.11n (5GHz): 150.0 Mbps³
  Access Point (Wi-Fi Direct):
  IEEE 802.11g (2.4GHz): 54 Mbps³ / IEEE 802.11n (2.4GHz): 72.2 Mbps³ / IEEE 802.11a (5GHz): 54 Mbps³ / IEEE 802.11n (5GHz): 150.0 Mbps³Wireless LAN Security:Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
  Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
  Access Point (Wi-Fi Direct): WPA2-PSK(AES)

  Screen Size (Projected Distance):

  ---

  Zoom : Wide:60” – 1,000” [1.99 – 34.43 m]Zoom : Tele:60” – 1,000” [3.26 - 55.63 m]

  Geometric Correction:

  ---

  Vertical/Horizontal Keystone:±45° / ±30° ( Zoom: Tele) with Middle Throw Zoom LensCurve Surface:YesCorner Wall:YesPoint Correction:YesQuick Corner:YesGeometry Correction Memory:Yes

  Operating Temperature:

  ---

  Single Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 50 °C <32 - 122 °F>
  High Altitude (Over 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>Multi-projection Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
  High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
  20% - 80% Humidity, No Condensation

  Operating Altitude:

  ---

  Operating Altitude:0 - 3,048 m (0 - 10,000 ft) (over 1,500m / 4,921ft with high altitude mode)

  Start-Up Period:

  ---

  Start-Up Period:Less than 8 seconds (Epson Logo); Warm-up Period: 20 secondsQuick Start-Up:Less than 7 seconds (Display)

  Cool Down Period:

  ---

  Cool Down Period:Instant Off

  Direct Power On/Off:

  ---

  Direct Power On/Off:Yes

  Dimension Excluding Feet (W x H x D):

  ---

  Dimension Excluding Feet (W x H x D):492 x 586 x 185 mm

  Weight:

  ---

  Weight:Approx. 23.7kg

  Fan Noise:

  ---

  Normal / Quiet:34dB / 29dB

  Brightness^*1:

  ---

  White Light Output (Normal/Eco):13,000 lm / 9,100 lmColour Light Output:13,000 lmLight Output (Center):13,700 lm

  Specifications of Main Parts:

  ---

  LCD:1.0” (C2 Fine)Light Source:Type: Laser Diode
  Life: 20,000 hours (Normal) / 30,000 hours (Extended)Native Resolution:WUXGA (Support 4K Enhancement)Refresh Rate:192 – 240 Hz

  Power Supply Voltage:

  ---

  Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

  Power Consumption (220 - 240V):

  ---

  Laser Diode ON (Normal / Extended):864W / 633WStand By:Network / Energy Saving: 2.0 W / 0.4 W
