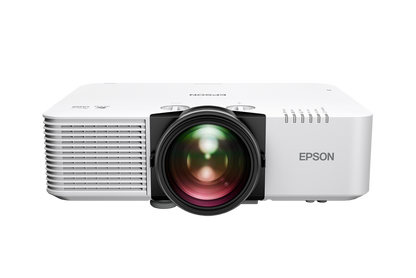

Epson EB-L690SE Short Throw 3LCD 6000 lumens Laser Projector with 4K Enhancement

Epson EB-L690SE Short Throw 3LCD 6000 lumens Laser Projector with 4K Enhancement

₱361,430.00 PHP
₱361,430.00 PHP
セール 売り切れ
配送料はチェックアウト時に計算されます。

Epson Brand - Delivery lead time Luzon 3-5 working days, VIS/MIN 5-7 working days, Island Plus 2 days. Availability of stock is subject to change without prior notice.

This incredibly compact projector delivers larger-than-life images with a short 0.5 – 0.7 throw ratio.



Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the EB-L690SE features a short 0.5 – 0.7 throw ratio and a large display up to 500". With wide vertical and horizontal lens shifts and 1.4x optical zoom, this flexible projector is ideal for a variety of applications, such as floor and rear projection, golf simulation, museum exhibitions and more. Deliver vivid images in rooms with high-ambient light with 6,000 lumens of equal color and white brightness1. Plus, enjoy a sharp, detailed picture thanks to 4K Enhancement Technology2 that displays double HD resolution on-screen.

Simple to install, the EB-L690SE is easy to operate from start to finish. Built-in NFC functionality3, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

  • 6,000 lumens color/white brightness1
  • WUXGA with 4K Enhancement2 for clear, detailed images
  • 0.5 – 0.7 throw ratio and 1.4x optical zoom
  • Display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
  • Lightweight, compact design allows for easy installation
SKU numbers: V11HB36080, V11HB36052

Ultra bright, true-to-life images
3-chip 3LCD technology and 6,000 lumens of equal color and white brightness1

WUXGA with 4K Enhancement Technology2
Accepts 4K content and displays double HD resolution on-screen; enjoy a visibly sharper, more detailed picture even at close viewing distances

Large, versatile display options
Easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation
Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.4x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance
Up to 30,000-hour laser light source4 and air filter in Extended Mode

Wireless networking and content sharing
Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness1:

White Light Output (Normal/Eco):6000lm / 4200lmColour Light Output:6000lmLight Output (Center)*5:6500lm

Connectivity:

USB:USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01, Wireless LAN or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, Wireless LAN or 5V/0.9A Power Supply
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network:Wired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: OptionalDigital Input:HDMI : 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)Audio Output:Stereo Mini: 1Control I/O:RS-232C: 1 (D-Sub 9pin)Digital Output:HDMI Out: 1 (HDCP2.3, supports only HDMI input)

Contrast Ratio:

Contrast Ratio:Over 5,000,000:1

Screen Size (Projected Distance):

Standard Size:100” diagonal 1.08m - 1.54mScreen Size:Zoom: Wide: 100” – 500” [1.09 – 5.58m]
Zoom: Tele: 100” – 500” [1.54 – 7.84m]

Geometric Correction:

Vertical/Horizontal Keystone:±25% / ±25%Projection Orientation:360º Free

Operating Temperature:

Single Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
20% - 80% Humidity, No CondensationMulti-projection Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:12 seconds (Epson Logo); Warm-up Period: 30 secondsQuick Start-Up:Less than 8 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Internal Speaker(s):

Sound Output:NA

Direct Power On/Off:

Direct Power On/Off:Yes

Weight:

Weight:Approx. 9.3kg

Air Filter:

Type:Electrostatic FilterMaintenance Cycle*3:20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):36dB / 26dB

Specifications Projector:

Size - projected distance:100” diagonal (wide: 9.3’ – tele: 19.8’)Contrast Ratio:Absolute Black (Full White 1500 lm / Full Black 0 lm)Projection Method:Front / rear / ceiling mountProjection System:3LCD Reflective, 3-chip technology Poly-silicon TFT active matrixPixel Number:2,073,600 dots (1920 × 1080) × 3Color Brightness - Color Light Output:1500 lumens *1Projected Output:HD, 2D, 3D, 1080pWhite Brightness - White Light Output:1500 lumens *1Aspect Ratio:Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom ModesDriving Method:Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPSNative Resolution:Native 1080p (1920 × 1080)Laser Type:Laser Diode 41.9 mW (Output)Light Source Life:Up to 20,000 hours (ECO Mode)*2

Power:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 HzPower Consumption (220-240V area):Laser Diode On:
LD On (Normal / Extended): 415W / 303W
Standby (Normal / Eco): 2.4 W / 0.4 W

Colour Mode:

Colour Mode:Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H):440 x 304 x 122 mm

Wireless Specifications (Optional Wireless LAN):

Supported Speed for each mode:Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps6
IEEE 802.11g (2.4GHz): 54 Mbps6
IEEE 802.11n (2.4GHz): 72.2 Mbps6
IEEE 802.11a (5GHz): 54 Mbps6
IEEE 802.11n (5GHz): 150.0 Mbps6
IEEE 802.11ac (5GHz): 325 Mbps6
Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps6
IEEE 802.11n (2.4GHz): 72.2 Mbps6
IEEE 802.11a (5GHz): 54 Mbps6
IEEE 802.11n (5GHz): 150.0 Mbps6
IEEE 802.11ac (5GHz): 325 Mbps6Supported Mode:Infrastructure, Access Point (Wi-Fi Direct)Security Tyре:Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Specifications of Main Parts:

LCD:Size: 0.67” (C2 Fine)
Driving Method: Poly-silicon TFT active matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Native Resolution: WUXGA
Aspect Ratio: 16:10
Pixel Arrangement: Cross stripeLight Source:Type: Laser Diode
Life (Normal / Extended): 20,000 hours / 30,000 hoursProjection Lens:Type: Optical Zoom (Manual) / Focus (Manual) / Distortion (Manual)
F-Number: 1.8 – 2.0
Focal Length: 7.54 – 10.55 mm
Zoom Ratio: 1.0 - 1.4
Throw Ratio: 0.5 – 0.7
Lens Shift:
Vertical: ±50% (Manual)
Horizontal: ±20% (Manual)
