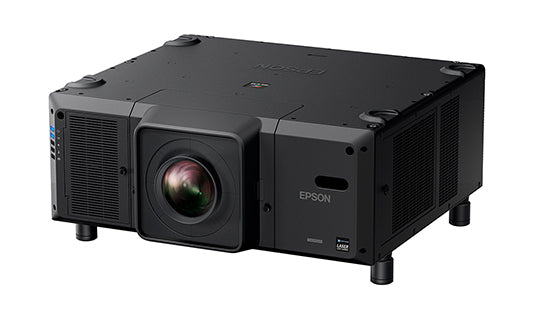

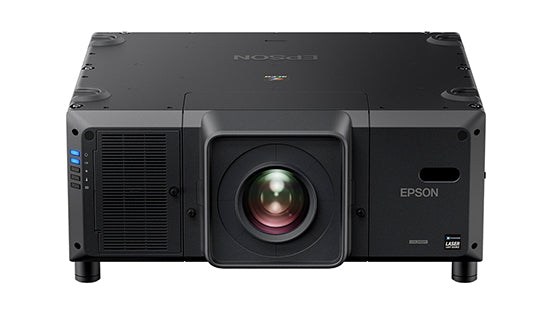

Vivid Images Even in Large Spaces
Epson EB-L30000UNL is packed with 30,000 lumens and projects with a high contrast ratio. Guaranteed to produce bright images even in large venues, it works flawlessly even well-lighted environment.
Epson EB-L30000UNL is packed with 30,000 lumens and projects with a high contrast ratio. Guaranteed to produce bright images even in large venues, it works flawlessly even well-lighted environment.

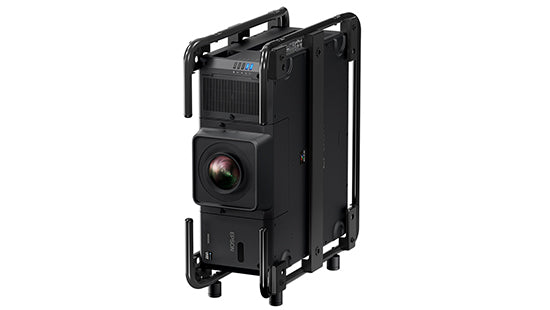

Geometry Correction for Stacking
Epson has taken projection mapping to the next level with Geometry Correction for Stacking that can be performed using Epson Professional Tool software. The function aids the operator in performing two projectors stacking, and tiling assist, which allows edge-blended multi-projector to create one supersized image. This produces impressive massive displays that aim to wow!
Epson has taken projection mapping to the next level with Geometry Correction for Stacking that can be performed using Epson Professional Tool software. The function aids the operator in performing two projectors stacking, and tiling assist, which allows edge-blended multi-projector to create one supersized image. This produces impressive massive displays that aim to wow!
Geometry Correction
This function allows users to correct image distortion when projecting on a curved, right-angled screen and edge blending using the Geometric Correction feature without any hassle.
High-definition Images with 4K Lens and Enhancement Technology
4K enhancement technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160, surpassing full HD image quality to give you unbelievable sharpness, clarity and detail on all your presentations. By reengineering the internal structure, colour bleeding is kept to an absolute minimum to deliver 4K resolution throughout the entire zoom range.
Projectors Facets:
Features, Projectors Facets:Lens Interchangeable
Corner Wall Projection
4k enhancement
Curve Screen Projection
Edge Blending Projection
Quick Corner
Optional WifiLaser / Lamp, Projectors Facets:LaserResolution, Projectors Facets:WUXGAContrast Ratio, Projectors Facets:Over 5,000,000:1
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system (3LCD)
Specifications of Main Parts:
LCD:Size: 1.43” (D8, C2 Fine)
Native Resolution: WUXGA (1920 x 1200)Projection Lens:Focal Length: 54.7 - 73.0 mm
Lens Exchange: Yes
Lens Shift Mode: Powered
Type: Power Zoom / Power Focus / Power Shift / Power Distortion (Rear Projection Wide Lens / Short Throw / Zoom Lens 1 only)
Zoom Ratio: 1 - 1.35
F-Number: 1.9 - 2.1Lamp:Type: Laser Diode Bank
Life (Normal / Eco): 20,000 / 30,000 hours

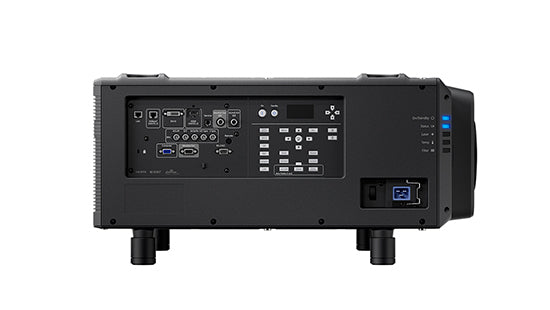

Connectivity:
Network:Wired LAN: RJ-45 x 1 [Compliant with Control I/O (Art-Net)]
Wireless Optional: (ELPAP10)Analog Input:D-Sub 15 pin: 1 (RGB, YCbCr, RGB-Video)
5BNC: 1 (RGB, YCbCr, RGB-Video)Digital Input:HDBaseT: 1 (HDCP 2.2)
HDMI: 1 (HDCP 2.2)
DVI-D: 1 (Single Link, HDCP 1.4)
SDI: 1 (SD / HD / 3G)Analog Output:D-Sub 15Pin: 1 (RGB)Control I/O:Remote Control Input: 1 (Stereo Mini)
RS-232C: 1Digital Output:SDI (BNC): 1 (SDI Loop-Through)Others:USB Type A: 1 (Optional Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (Firmaware Update, Copy OSD Settings)
Contrast Ratio:
Contrast Ratio:Over 5,000,000 : 1
Wireless Specifications (Wireless LAN: Built-in):
Supported Speed for Each Mode :IEEE 802.11b: 11Mbps*2
IEEE 802.11g: 54Mbps*2
IEEE 802.11n: 130Mbps*2Wireless Security:Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA/WPA2-PSK, WPA-Enterprise
Screen Size (Projected Distance):
Zoom : Wide:100” - 1,000” [3.68 - 37.94 m]Zoom : Tele:100” - 1,000” [5.0 - 51.03 m]
Geometric Correction:
Vertical/Horizontal Keystone:±45° / ±30° (Zoom: Tele with Middle Throw Zoom Lens)Curve Surface:Yes (Except when in 4K Enhancement mode)Corner Wall:Yes (Except when in 4K Enhancement mode)Point Correction:Yes (Except when in 4K Enhancement mode)Quick Corner:Yes
Operating Temperature:
Operating Temperature:Low Altitude Mode: 0 - 50 °C <32 - 122 °F> (0m / 0ft - 2,286m / 7,500ft)
High Altitude Mode: 0 - 40 °C <32 - 104 °F> (Over 2,286m / 4,921ft - 3,048m / 10,000ft) (20% - 80% Humidity, No Condensation)
Operating Altitude:
Operating Altitude:0 - 3,048 m <0 - 10,000 ft> (Over 1,500m / 4,921ft : with High Altitude Mode)
Start-Up Period:
Start-Up Period:Less than 21 seconds, Warm-up period: 30 seconds
Cool Down Period:
Cool Down Period:Instant off
Direct Power On/Off:
Direct Power On/Off:Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):790 x 299 x 710mm (Excluding foot, lens and handle)
Power Supply Voltage:
Power Supply Voltage:200 - 240 V AC ±10%, 50/60 Hz
Weight:
Weight:69.9kg (Including handle, excluding lens)
Air Filter:
Type:High Efficiency Filter (with Smoke Filter function*3)Maintenance Cycle:20,000 hours*4 (Normal) / 30,000 hours*4 (Extended)
Fan Noise:
Fan Noise (Normal / Eco):49dB / 41dB
Power Consumption (220 - 240V):
Laser Diode (Normal/Eco):2325W / 1511WStandby (Communication On / Off):2.5W / 0.5W
Brightness*1:
White Light Output (Normal/Quiet):30,000lm / 21,000lmColour Light Output:30,000lmLight Output (Center):32,300lm***
