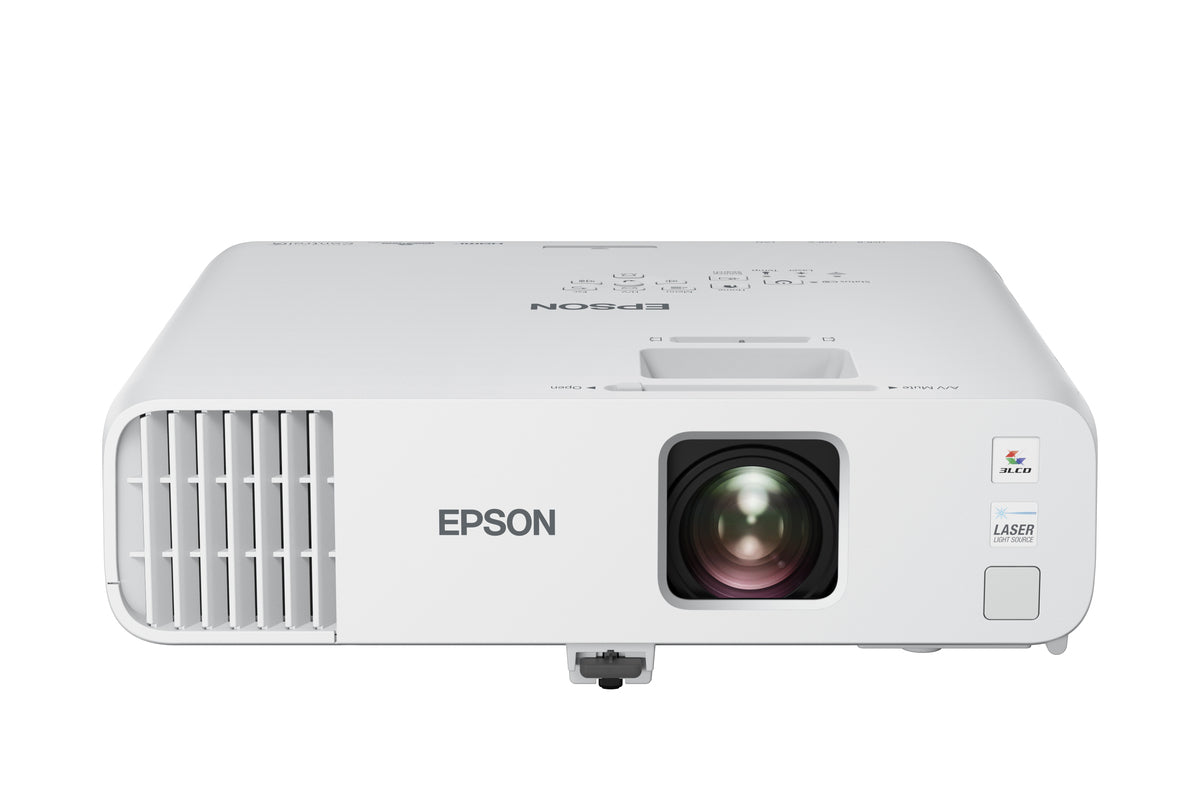

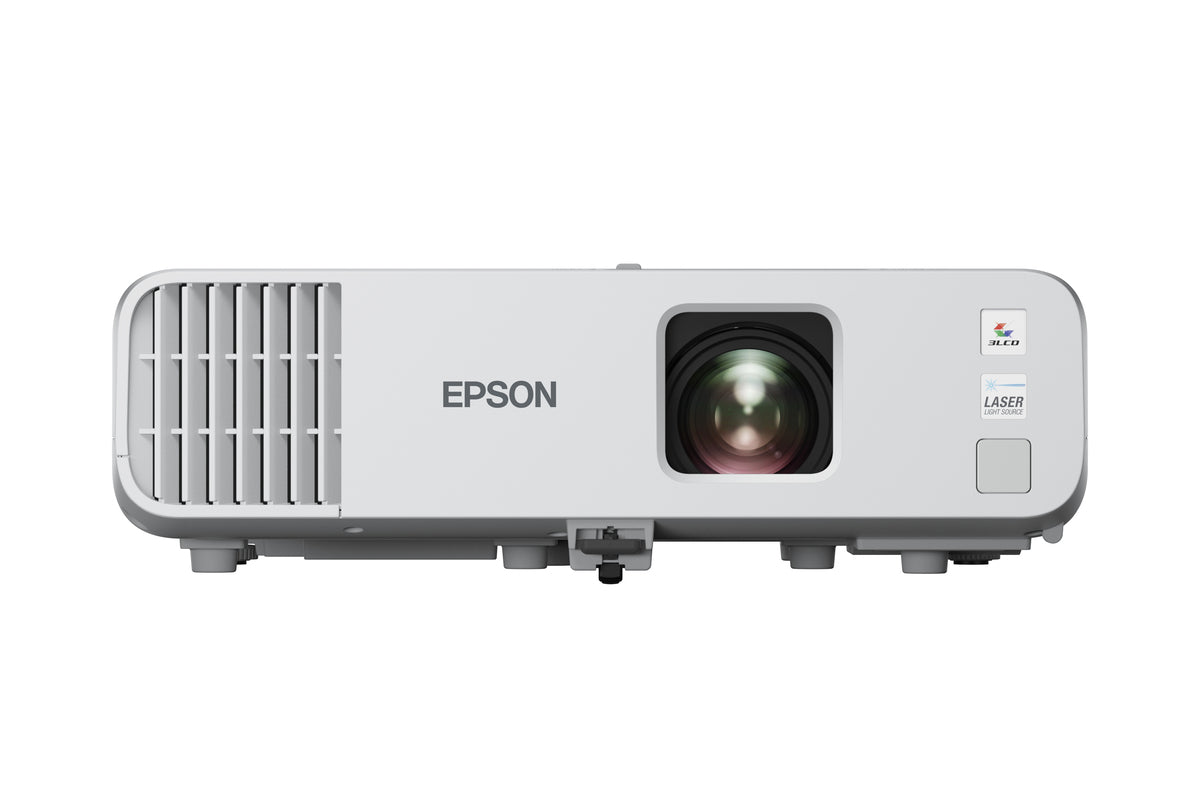

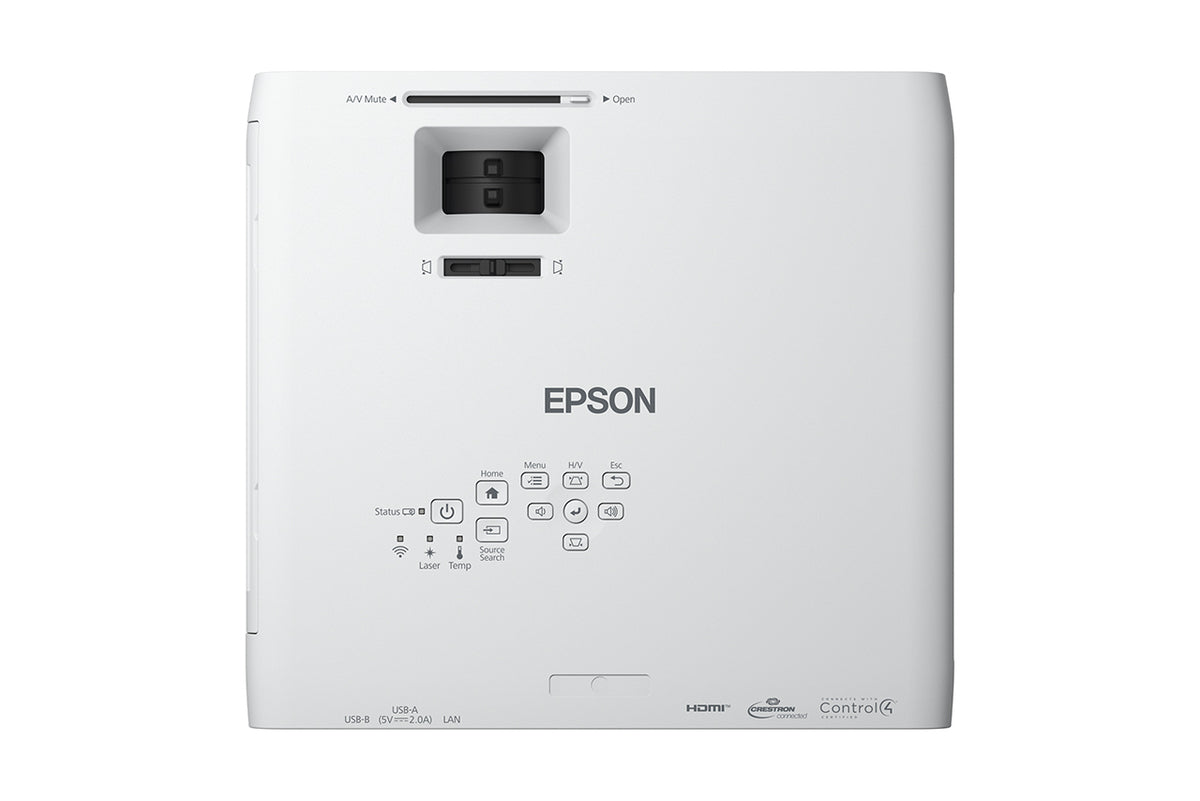

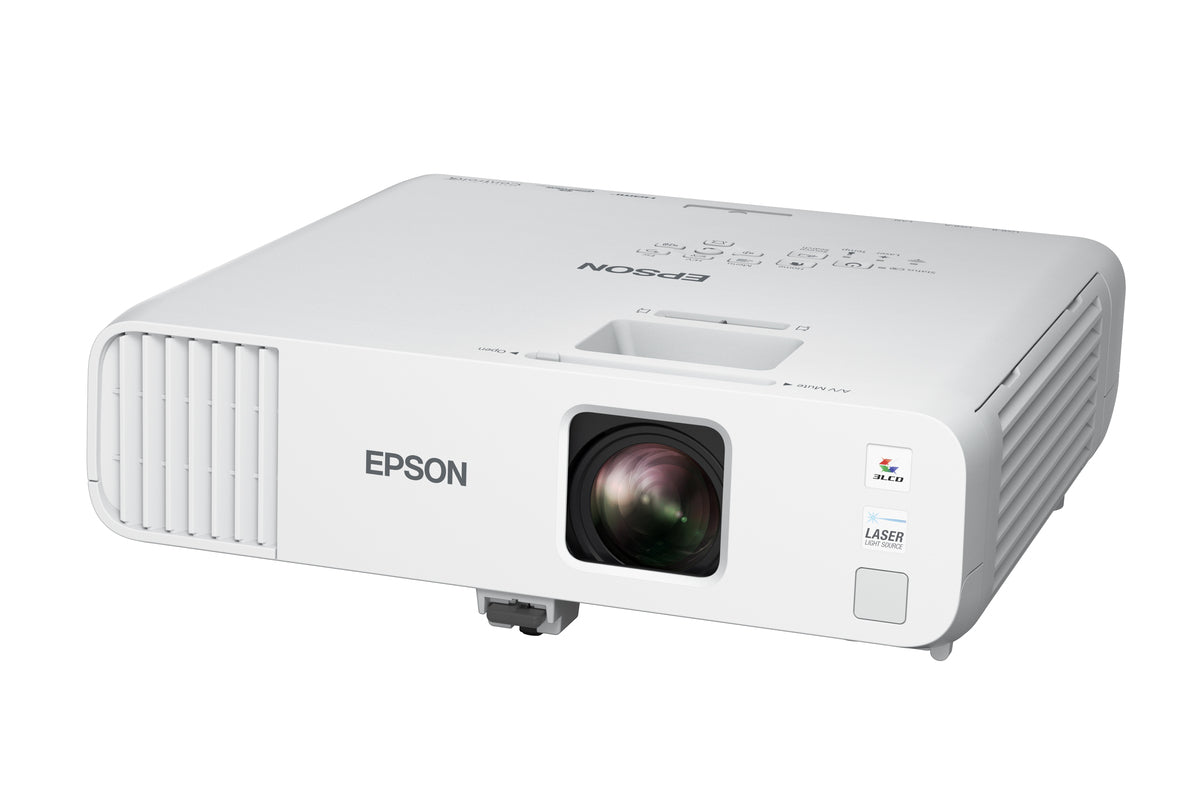

Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless (V11HA70080)

Promote engagement in the classroom with the versatile EB-L210W lamp-free laser display. Providing 4,500 lumens of brightness¹, the EB-L210W delivers vibrant images to everyone in the classroom at an exceptional value. Designed for convenience, this flexible solution features WXGA resolution, produces an image up to 16x larger than a 75" flat panel display and includes a 20,000-hour virtually maintenance-free laser light source² for simple and reliable performance. Perfect for collaborative learning, it provides wireless connectivity for convenient content sharing from laptops and mobile devices³.

• 4,500 lumens of colour and white brightness¹
• WXGA resolution at an exceptional value
• No lamps to replace ever with solid-state laser light source
• Image size of up to 300” diagonal in 16:10 aspect ratio.
• Wireless connectivity with screen mirroring capability³

High Brightness

With powerful brightness of up to 4,500 Im, EB-L210W delivers clear and detailed images even in bright environment.





Simple wireless projection

Enjoy ease of connection with built-in and optional wireless connection capability. Supports Screen mirroring too!





Experience vivid and lifelike images

Using Epson's very own original designed fixed phosphor unit, coupled with the innovative optimized design, the projector is now more compact yet images remain bright and sharp. Thanks to the new heatsink design, the projector has efficient heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.



Projection Technology:

---

Projection Technology:RGB liquid crystal shutter projection system

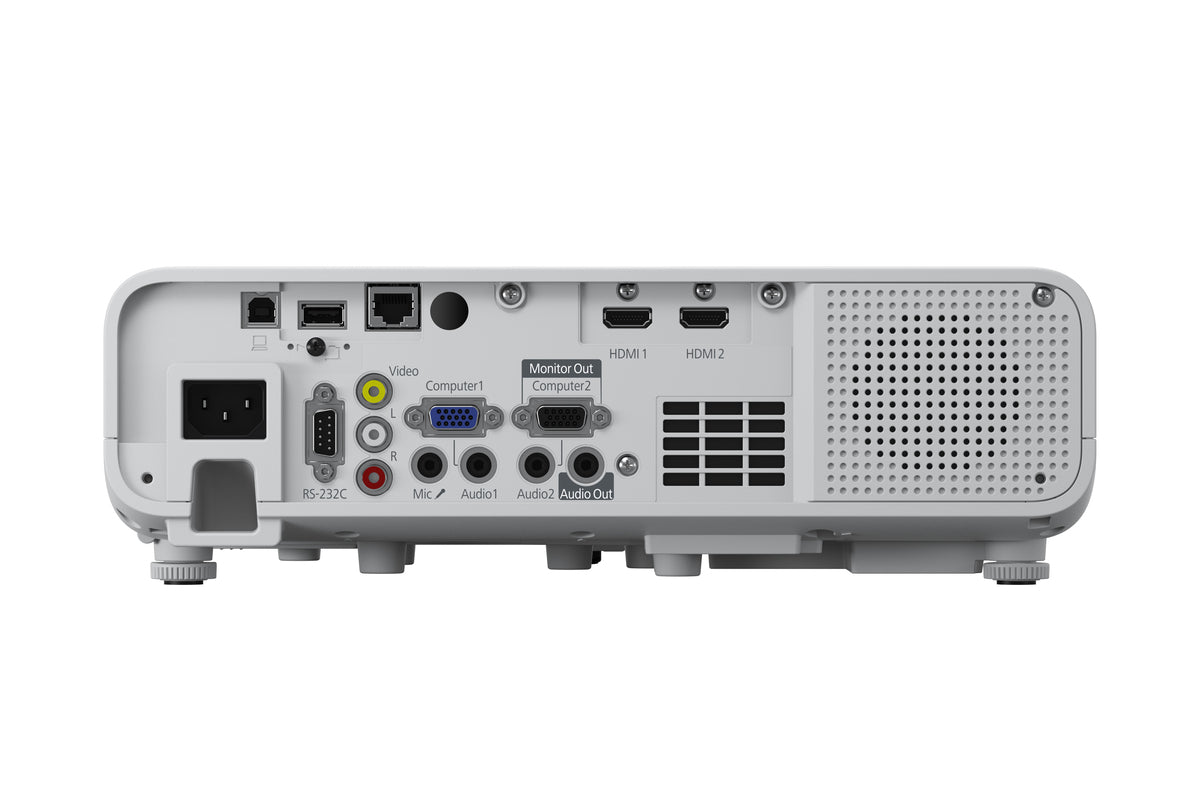

Connectivity:

---

Analog Input:D-Sub 15Pin: 2
Composite: RCA x 1 (Yellow)Digital Input:HDMI: 2 (HDCP 2.3)Analog Output:D-Sub 15Pin: 1 (Black) (in common with Computer 2)Audio Input:RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output:Stereo Mini Jack: 1Mic I/O:Mic In: 1 (Stereo Mini)Control I/O:RS-232C: D-Sub 9pin x 1Others:USB Type A: 1 (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network I/O:Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional (Using ELPAP11)

Contrast Ratio:

---

Contrast Ratio:Over 5,000,000 : 1

Screen Size (Projected Distance):

---

Zoom : Wide:30" to 300" [88 cm to 909 cm]Standard Size:60" screen 180 cm

Geometric Correction:

---

Vertical/Horizontal Keystone:±30° / ±30°Quick Corner:Yes (Manual)

Operating Temperature:

---

Operating Temperature:0 – 2286m (0-7500ft): 0°C - 40°C (32°F - 104°F); 20%-80% Humidity, No Condensation
Over 2286m(7500ft): 0°C - 35°C (32°F - 95°F); 20%-80% Humidity, No Condensation

Operating Altitude:

---

Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

---

Start-Up Period:Less than 9 seconds (Epson logo), Warm-up Period: 30 secondsQuick Start-Up:Less than 5 seconds (Display)

Cool Down Period:

---

Cool Down Period:Instant Off

Internal Speaker(s):

---

Sound Output:16W Monaural

Weight:

---

Weight:Approx. 4.2kg

Air Filter:

---

Type:Electrostatic FilterMaintenance Cycle:20,000 hours

Fan Noise:

---

Fan Noise (Normal / Eco):37dB / 27dB

Dimension Excluding Feet:

---

Dimension Excluding Feet (D x W x H):299 x 325 x 90 mm

Brightness^*1:

---

Colour Light Output:4,500lm

White Light Output (Normal/Extended)
4500lm / 3100lm

Image:

---

Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

---

Supported Speed for Each mode :Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps⁴
IEEE 802.11g (2.4GHz): 54 Mbps⁴
IEEE 802.11n (2.4GHz): 72.2 Mbps⁴
IEEE 802.11a (5GHz): 54 Mbps⁴
IEEE 802.11n (5GHz): 150.0 Mbps⁴
IEEE 802.11ac (5GHz): 325Mbps⁴

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps⁴
IEEE 802.11n (2.4GHz): 72.2 Mbps⁴
IEEE 802.11a (5GHz): 54 Mbps⁴
IEEE 802.11n (5GHz): 150.0 Mbps⁴
IEEE 802.11ac (5GHz): 325Mbps⁴Supported Mode :Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Wireless Specifications (Optional Wireless LAN):

---

Supported Speed for Each Mode *:Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54Mbps⁴, IEEE 802.11n (2.4GHz): 72.2Mbps⁴, IEEE 802.11a (5GHz): 54Mbps⁴, IEEE 802.11n (5GHz): 150Mbps⁴, IEEE 802.11ac (5GHz): 325Mbps⁴Supported Mode:Access Point (Wi-Fi Direct)Supported Security Type:WPA2-PSK (AES)

Projectors Facets:

---

Features, Projectors Facets:Screen Mirroring
WifiLaser / Lamp, Projectors Facets:LaserLight Source, Projectors Facets:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsContrast Ratio, Projectors Facets:5,000,000 : 1Inputs & Interfaces, Projectors Facets:RJ-45 & RS-232Brightness Range Lumens, Projectors Facets:4001

Main Parts Specification:

---

LCD:Size: 0.59” (C2Fine)
Resolution: WXGA


Projection Lens
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51 – 1.77
Focal Length: 18.2 – 29.1mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)
Throw Ratio: 1.41 – 2.26

Lightsource:

---

Type:Laser DiodeLight Source Life (Normal/ Quiet/ Extended):20,000 / 20,000 / 30,000 hrs

Direct Power On / Off:

---

Direct Power On / Off:Yes

Power Supply Voltage:

---

Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

Power Consumption
LD On (Normal / Extended): 260W / 191W
Standby (Network On / Off): 2.0W / 0.5W
