Epson EB-770F Full HD 1080P 3LCD 4100 Lumens Laser Projector (V11HA79080)

Captivate and inspire students with the eye-catching, easy-to-read display of the EB-770F. With its intelligent ultra short throw design, the dynamic EB-770F delivers stunning HD images up to 150"—which is 2.4 times larger than a 75" flat panel—and can be easily seen from nearly anywhere in the classroom. Engineered for reliability, this incredibly bright 4,100-lumen¹ display has a 20,000-hour, virtually maintenance-free laser light source², which means there are no lamps to purchase or replace—ever. Providing wireless connectivity with casting capability³ and convenient split screen functionality⁴, the EB-770F makes it easy for teachers and students to display up to four screens simultaneously. EB-770F supports a variety of aspect ratios, including 16:9 as well as ultra wide 21:9 and 16:6. Offering the flexibility to display on existing whiteboards, the versatile EB-770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.

• 4,100 lumens of colour and white brightness¹
• Full HD 1080p resolution for exceptional image quality
• No lamps to replace ever with solid-state laser light source
• Convenient ultra short throw design
• 16:9 display with additional support for ultra wide 21:9 & 16:

Massive, wide clear content for a full, uncompromised learning/ meeting experience

Enjoy a dynamic wide screen viewing experience with our Ultra short-throw EB-770F. You may easily change the projection aspect depends on your working space. Maximum screen size is improved up to 150 inch (Diagonal). Have all the content well-viewed with our 21:9 aspect ratio at up to 142" - newly available for 770F.



Brilliantly rich, crystal-clear detail

With excellent contrast ratio of over 5,000,000:1, EB-760W delivers well-defined image to you - whether it is numbers, pictures, graphs or videos. It's all about seeing the little details in a better light.




Connect up to 50 devices³

Free downloadable Epson iProjection™ software makes it easy to project up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs³; with moderator feature⁶, teachers never lose control of the displayed content.



Projection Technology:

---

Projection Technology:RGB liquid crystal shutter projection system

Brightness:

---

White Light Output (Normal / Extended):4,100lm / 2,800lmColour Light Output:4,100lmContrast Ratio:Over 5,000,000 : 1

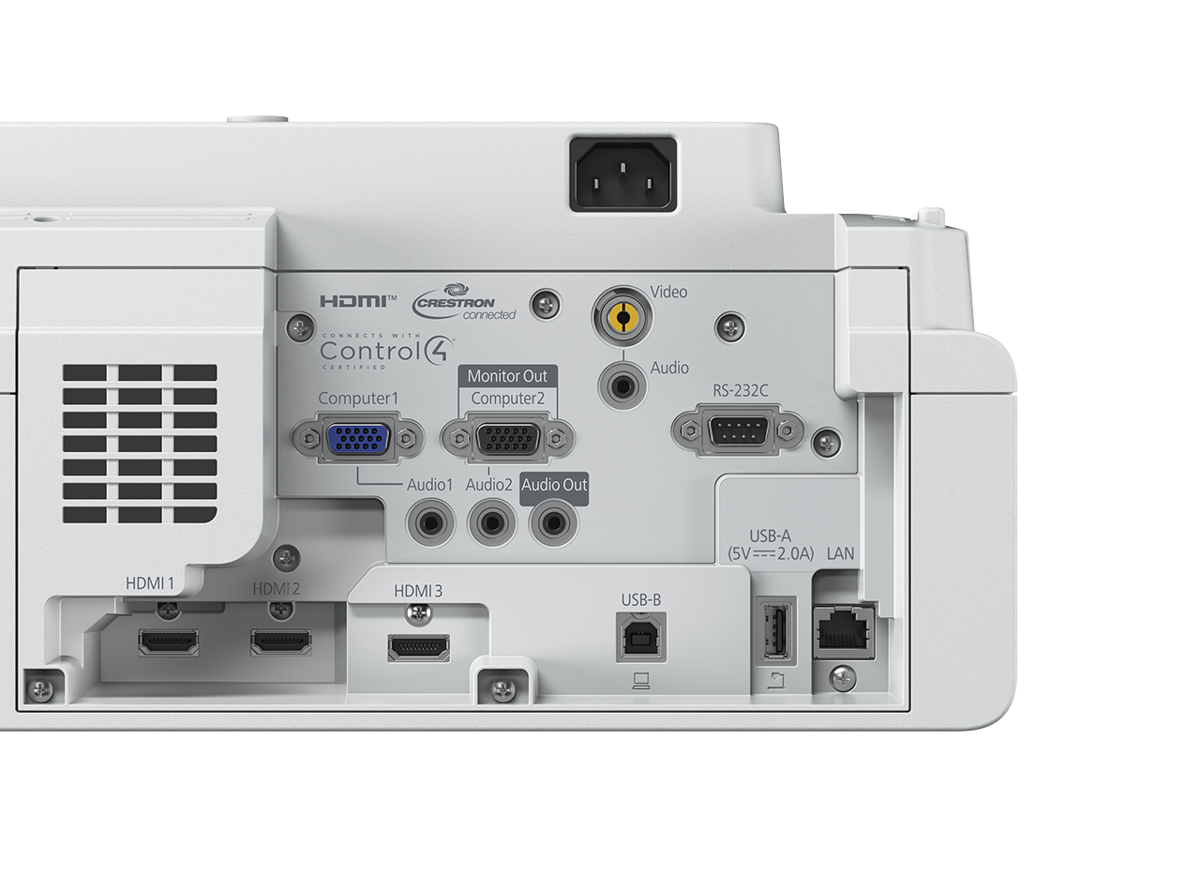

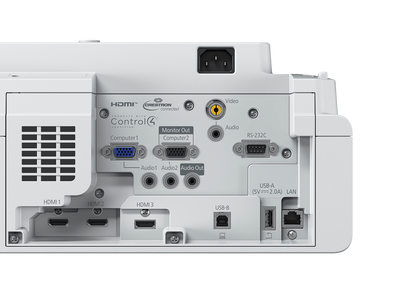

Connectivity:

---

Analog Input:Computer In: 2
Composite: 1Digital Input:HDMI In: 3 (HDCP 2.3)Analog Output:Computer Out: 1 (Share with Computer2)Audio Input:Audio In: 3 (Stereo Mini)Audio Output:Audio Out: 1 (Stereo Mini)Mic I/O:Mic In: 1 (Stereo Mini)Control I/O:RS232C: 1 (D-sub 9pin)

USB I/O
Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
Type B: 1 (For FW Update, Copy OSD Settings, USB Display)Network I/O:Wired LAN: 1 (RJ45)
Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:

---

Vertical/Horizontal Keystone:±3° / ±3°Quick Corner:Yes (Manual)

Operating Temperature:

---

Operating Temperature:0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

---

Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

---

Start-Up Period:Less than 10 seconds (Epson Logo)Quick Start-Up:Less than 5 seconds (Display)

Cool Down Period:

---

Cool Down Period:Instant Off

Internal Speaker(s):

---

Sound Output:16W Mono

Weight:

---

Weight:Approx.5.9kg

Air Filter:

---

Type:Electrostatic FilterMaintenance Cycle (Normal / Extended) :12,000 hours / 20,000 hours

Fan Noise:

---

Fan Noise (Normal / Eco):37dB / 27dB

Dimension Excluding Feet:

---

Dimension Excluding Feet (D x W x H):395 x 356 x 133mm

Image:

---

Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

---

Supported Speed for Each mode :Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps⁶, IEEE 802.11g (2.4GHz): 54Mbps⁶ IEEE 802.11n (2.4GHz): 72.2Mbps⁶,
IEEE 802.11a (5GHz): 54Mbps⁶, IEEE 802.11n (5GHz): 150Mbps⁶, IEEE 802.11ac (5GHz): 325Mbps⁶
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps⁶, IEEE 802.11n (2.4GHz): 72.2Mbps⁶,
IEEE 802.11a (5GHz): 54Mbps⁶, IEEE 802.11n (5GHz): 150Mbps⁶, IEEE 802.11ac (5GHz): 325Mbps⁶Supported Mode :Infrastructure, Access Point (Wi-Fi Direct)
Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:

---

Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

---

Lamp (Normal / Extended):263W / 199WStandby:(Network On / Off): 2.0W / 0.5W

Direct Power On / Off:

---

Direct Power On / Off:Yes

Specifications of Main Parts:

---

LCD:Size: 0.62” (C2Fine)
Resolution: Full HDLight Source:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens:Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.25 – 0.35Screen Size (projected distance):Standard: 77” screen 43.3cm
Zoom (Wide):
56” to 140” (32.5 – 89.3cm) @ 16:6
60” to 150” (32.5 – 89.3cm) @ 16:9
55” to 139” (32.5 – 89.3cm) @ 16:10
57” to 142” (39.4 – 85.3cm) @ 21:9
