Epson EB-760Wi WXGA 3LCD Laser Projector (V11HA80080)

Offering a high-quality 16:10 WXGA display up to 100", the EB-760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75" flat panel—for a low cost per square inch. With 4,100 lumens of color and white brightness¹ and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom. It also includes a 20,000-hour, virtually maintenance-free laser light source², so there are no lamps to purchase or replace—ever.

• 4,100 lumens of colour and white brightness¹
• Large interactive display up to 100"
• Multi-user capability for easy collaboration
• 16:10 WXGA resolution for true-to-life images

Maximise your collaboration, with minimal footprint at a close distance

With our ultra-short throw projectors, deliver clear and impactful presentations. Cast a larger image from less than an arm throw distance, stay game on in your business and learning. Throw ratio of 0.27-0.37 allows you to project up to 150" at 92.8cm.^* Comes with 16W speaker to enhance your collaboration experience too!

^* with no interactive function, up to 100" with interactive function





Interactive function

Using Epson EB-760Wi Interactive function, explore meaningful collaboration and discussion of big ideas. Comes with Advance Whiteboard function, two pens and six finger touch point to make collaborations a breeze.





PC-free digital whiteboard

Draw, save, print and email without a PC; share whiteboard content with other networked projectors³





Brilliantly rich, crystal-clear detail

With excellent contrast ratio of over 5,000,000:1, EB-760Wi delivers well-defined image to you - whether it is numbers, pictures, graphs or videos.It's all about seeing the little details in a better light.



Projection Technology:

---

Projection Technology:RGB liquid crystal shutter projection system

Brightness:

---

White Light Output (Normal / Extended):4,100lm / 2,800lmColour Light Output:4,100lmContrast Ratio:Over 5,000,000 : 1

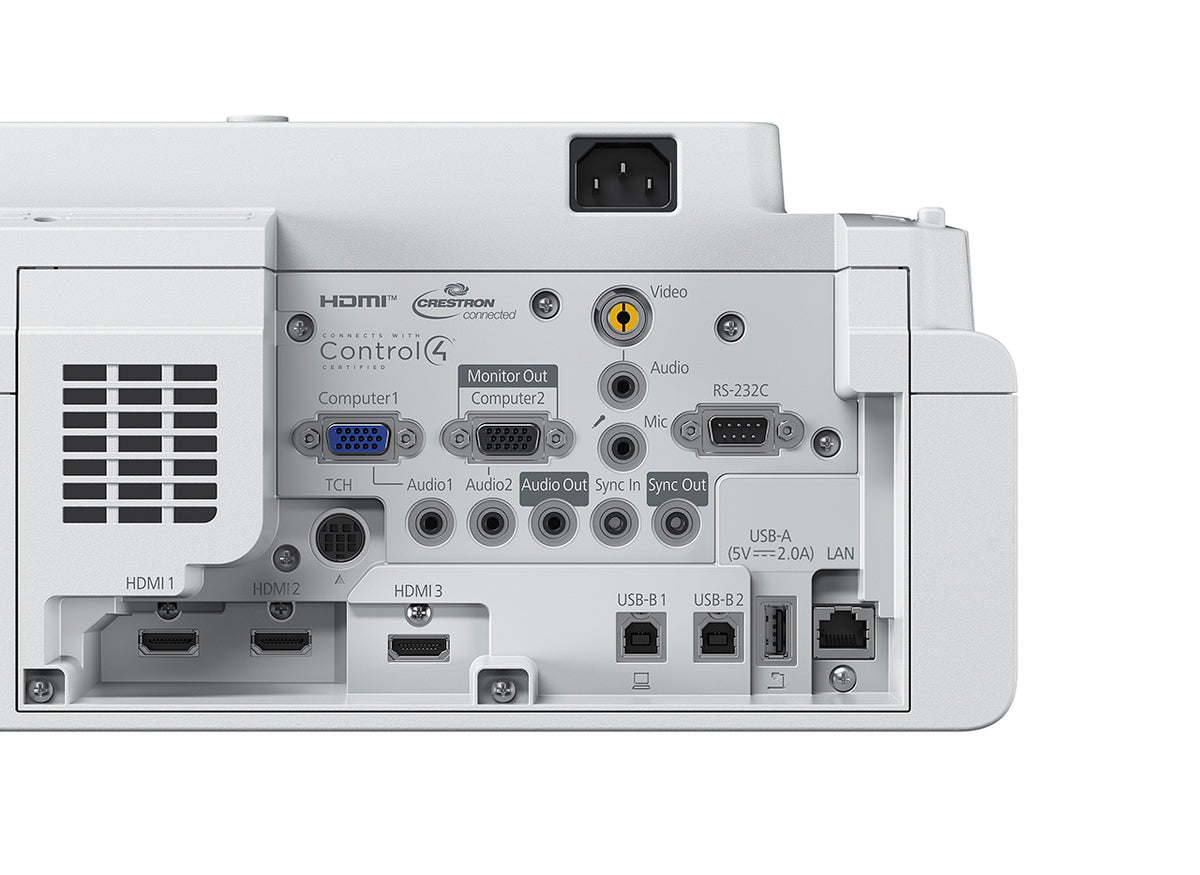

Connectivity:

---

Analog Input:Computer In: 2
Composite: 1Digital Input:HDMI In: 3 (HDCP 2.3)Analog Output:Computer Out: 1 (Share with Computer2)Audio Input:Audio In: 3 (Stereo Mini)Audio Output:Audio Out: 1 (Stereo Mini)Mic I/O:Mic In: 1 (Stereo Mini)Control I/O:RS232C: 1 (D-sub 9pin)
Interactive Sync: 1 (Stereo Mini)
Finger Touch Unit Control: 1 (Mini DIN 8pin)

USB I/O
Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
Type B: 2 (For FW Update, Copy OSD Settings, USB Display)Network I/O:Wired LAN: 1 (RJ45)
Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:

---

Vertical/Horizontal Keystone:±3° / ±3°Quick Corner:Yes (Auto / Manual)

Operating Temperature:

---

Operating Temperature:0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

---

Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

---

Start-Up Period:Less than 10 seconds (Epson Logo)Quick Start-Up:Less than 5 seconds (Display)

Cool Down Period:

---

Cool Down Period:Instant Off

Internal Speaker(s):

---

Sound Output:16W Mono

Weight:

---

Weight:Approx. 6kg

Air Filter:

---

Type:Electrostatic FilterMaintenance Cycle (Normal / Extended) :12,000 hours / 20,000 hours

Fan Noise:

---

Fan Noise (Normal / Eco):37dB / 27dB

Dimension Excluding Feet:

---

Dimension Excluding Feet (D x W x H):395 x 356 x 133

Image:

---

Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

---

Supported Speed for Each mode :Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps⁴, IEEE 802.11g (2.4GHz): 54Mbps⁴ IEEE 802.11n (2.4GHz): 72.2Mbps⁴,
IEEE 802.11a (5GHz): 54Mbps⁴, IEEE 802.11n (5GHz): 150Mbps⁴, IEEE 802.11ac (5GHz): 325Mbps⁴
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps⁴, IEEE 802.11n (2.4GHz): 72.2Mbps⁴,
IEEE 802.11a (5GHz): 54Mbps⁴, IEEE 802.11n (5GHz): 150Mbps⁴, IEEE 802.11ac (5GHz): 325Mbps⁴Supported Mode :Infrastructure, Access Point (Wi-Fi Direct)
Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:

---

Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

---

Lamp (Normal / Extended):263W / 199WStandby:(Network On / Off): 2.0W / 0.5W

Direct Power On / Off:

---

Direct Power On / Off:Yes

Specifications of Main Parts:

---

LCD:Size: 0.59” (C2Fine)
Resolution: WXGALight Source:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens:Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.27 – 0.37Screen Size (projected distance):Standard: 74.3” screen 43.3cm
Zoom (Wide):
53” to 132” (33.7 – 92.8 cm) @ 4:3
58” to 146” (33.7 – 92.8cm) @ 16:9
60” to 150” (33.7 – 92.8cm) @ 16:10
Zoom (Wide): (With Interactive Function)
52.6” to 100” (33.7 – 60.1 cm) @ 16:9
57.9” to 100” (33.7 – 68.7cm) @ 16:10
59.5” to 100” (33.7 – 61.9cm) @ 4:3
