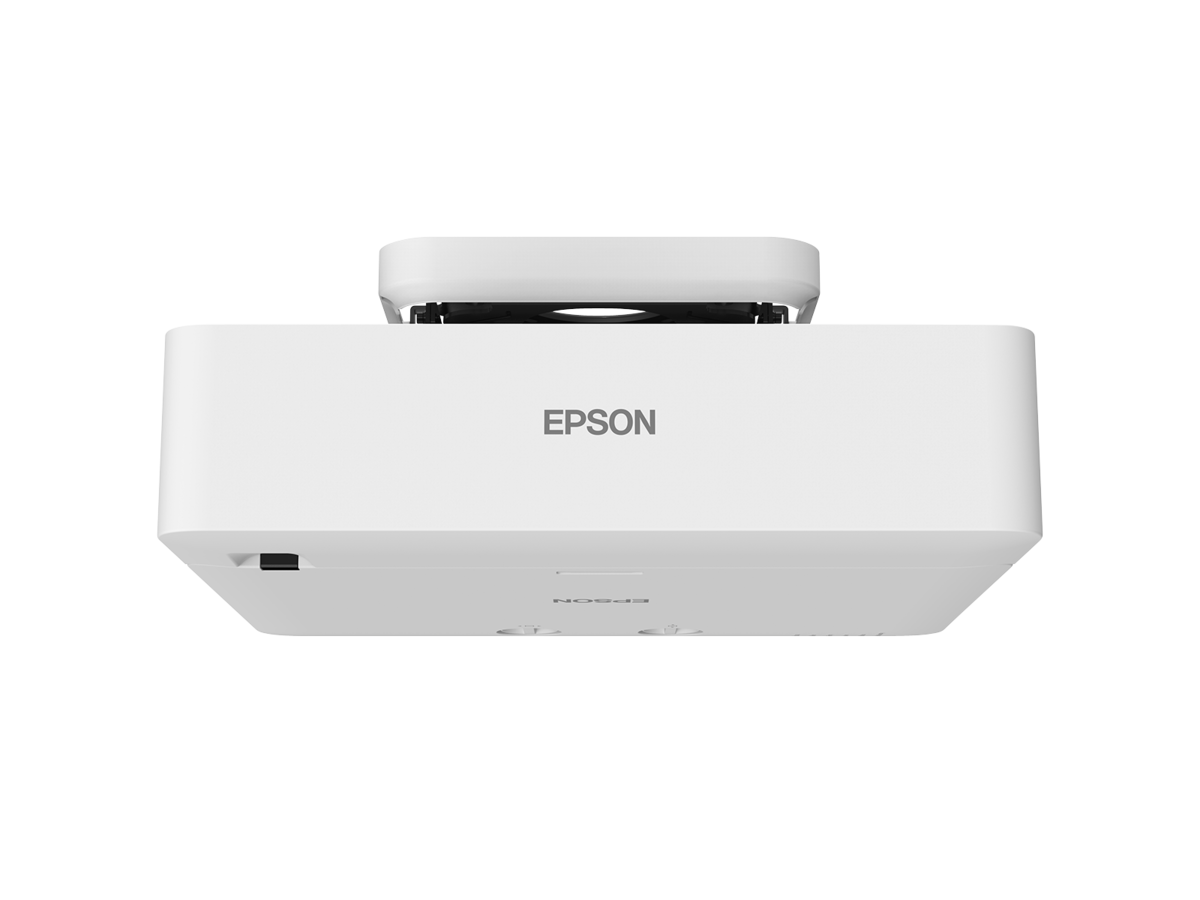

Epson EB-L570U 3LCD 5200 Lumens Laser Projector with 4K Enhancement (V11HA98080)

The versatile EB-L570U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement¹ and 5,200 lumens of brightness², providing smooth, detailed images—even up close. The flexible display can switch between a variety of aspect ratios, including standard 16:10 up to 500'', plus ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

Simple to install, the EB-L570U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000 hour virtually maintenance-free laser light source and air filter³. Plus, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

• • 5,200 lumens of colour and white brightness²
  • WUXGA with 4K Enhancement¹ for clear, detailed images
  • 20,000 hour, virtually maintenance-free laser light source and air filter³
  • Project up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9



Ultra bright, detailed images with 4K Enhancement¹

Delivers 4.6 million pixels on screen for a visibly smoother and sharper display, even at close viewing distances; accepts 4K content



Large, ultra wide display

Experience immersive video conferencing with our cutting-edge displays, showcasing images of up to an impressive 500" diagonal.*
Choose between the standard 16:10 and 16:9 aspect ratios for a seamless viewing experience, or dive into a whole new level of immersion with the ultra-wide 16:6 and 21:9 options.
*500" diagonal size is only applicable to 16:10 aspect ratio.

16:10

16:6

21:9



Power up your processes with attachable ELPEC01 camera

Simplify multi-projector functions** with optional attachable ELPEC01 camera.
** Simple stacking, screen matching and simple blending without PC or Geometry Correction Assist for Stacking, Blending and Screen Matching using PC with Epson Professional Tool software.



Ideal for Hybrid Corporate Environments, Educational Spaces, and Immersive Environment Applications

Elevate entertainment and educational spaces. Facilitate more equitable and collaborative meeting experiences with easy operation from start to finish.



Projectors Facets:

---

Features, Projectors Facets:Edge Blending
Screen Mirroring
WifiLaser / Lamp, Projectors Facets:LaserResolution, Projectors Facets:WUXGAContrast Ratio, Projectors Facets:5,000,000 : 1Inputs & Interfaces, Projectors Facets:RJ-45 & RS-232Brightness Range Lumens, Projectors Facets:4001

Projection Technology:

---

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Connectivity:

---

Digital Input:HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)Audio I/O:Audio Out: 1 (Stereo Mini)Control I/O:RS232C: 1 (D-sub 9pin)USB Input:USB Type A: 2 (Port1 for for PC Free, Firmware update, Wireless LAN, Document Camera, Copy OSD Settings, Content playback, External camera; Port2 for 5V/2A power supply only, no USB function)
USB Type B: 1 (For Firmware update, Copy OSD Settings)Network I/O:Wired LAN: 1 (RJ45)
Wireless LAN: Optional (Using ELPAP11)Digital Video Output:HDMI: 1 (HDCP 2.3)

Contrast Ratio:

---

Contrast Ratio:Over 5,000,000:1

Screen Size (Projected Distance):

---

Zoom : Wide:50” - 500” [1.44 - 14.76 m]Zoom : Tele:50” - 500” [2.35 - 23.84 m]

Geometric Correction:

---

Projection Orientation:360° Free

Operating Temperature:

---

Single Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F>
20% - 80% Humidity, No CondensationMulti-projection Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F>
20% - 80% Humidity, No Condensation

Operating Altitude:

---

Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

---

Start-Up Period:8 seconds (Epson Logo); Warm-up Period: 30 secQuick Start-Up:Less than 7 seconds (Display)

Cool Down Period:

---

Cool Down Period:Instant Off

Internal Speaker(s):

---

Sound Output:10W Monaural

Weight:

---

Weight:Approx. 8.3kg

Air Filter:

---

Type:Electrostatic FilterMaintenance Cycle^*3:20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

---

Fan Noise (Normal / Eco):31dB / 23dB

Power:

---

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Main Parts Specification:

---

LCD:Size: 0.67" (C2 Fine)
Resolution: WUXGA
Aspect Ratio: 16:10Projection Lens:Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 mm - 31.8 mm
Zoom Ratio: 1.0 – 1.60
Throw Ratio: 1.35 - 2.20 (Wide - Tele)

Keystone Correction:

---

Vertical/Horizontal:±30°

Lightsource:

---

Type:Laser DiodeLight Source Life (Normal/ Extended):20,000/ 30,000 hrs

Direct Power On / Off:

---

Direct Power On / Off:Yes

Dimension Excluding Feet:

---

Dimension Excluding Feet (D x W x H):304 x 440 x 122 mm

Brightness^*1:

---

White Light Output (Normal/Eco):5,200lm / 3,640lmColour Light Output:5,200lm

Wireless Specifications (Optional Wireless LAN):

---

Supported Speed for Each Mode *:Infrastructure:

IEEE 802.11b (2.4GHz): 11 Mbps⁴

IEEE 802.11g (2.4GHz): 54 Mbps⁴

IEEE 802.11n (2.4GHz): 72.2 Mbps⁴

IEEE 802.11a (5GHz): 54 Mbps⁴

IEEE 802.11n (5GHz): 150.0 Mbps⁴

Access Point:

IEEE 802.11b (2.4GHz): 11 Mbps⁴

IEEE 802.11g (2.4GHz): 54 Mbps⁴

IEEE 802.11n (2.4GHz): 72.2 Mbps⁴

IEEE 802.11a (5GHz): 54 Mbps⁴

IEEE 802.11n (5GHz): 150.0 Mbps⁴

Supported Mode:Infrastructure, Access PointSupported Security Type:Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point: WPA2-PSK (AES)
