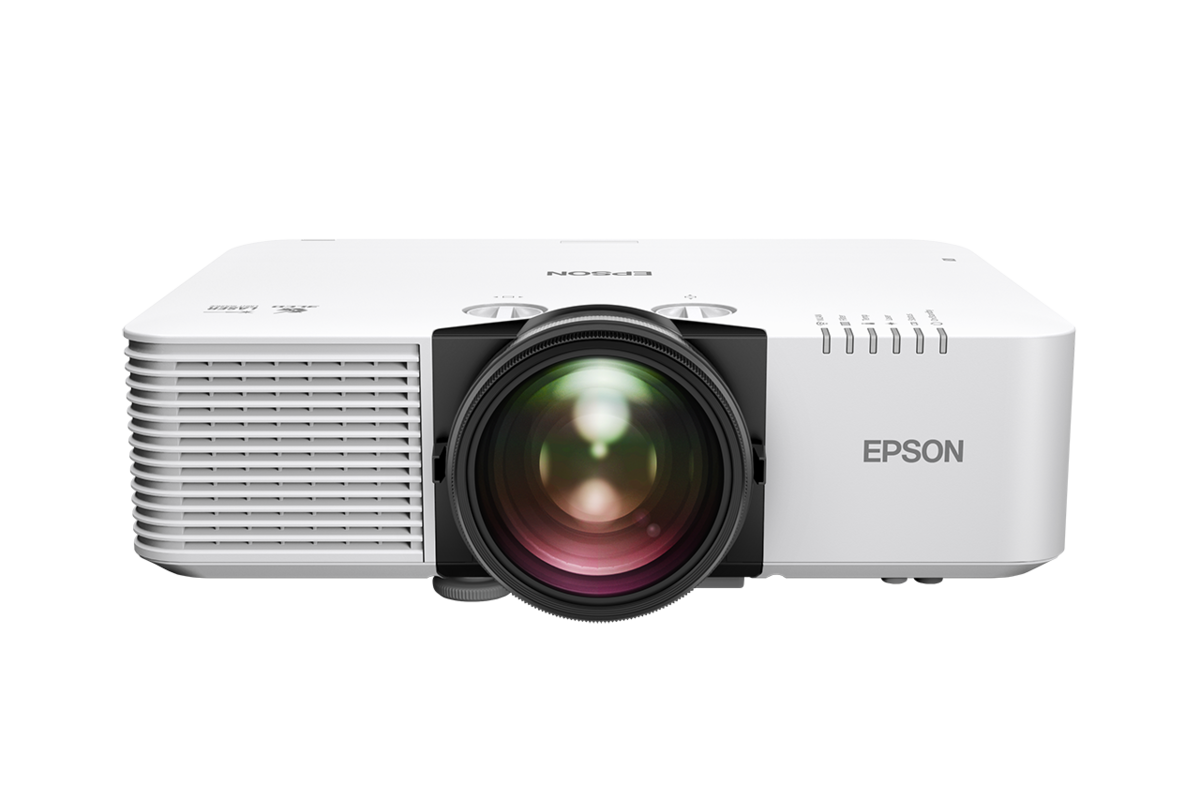

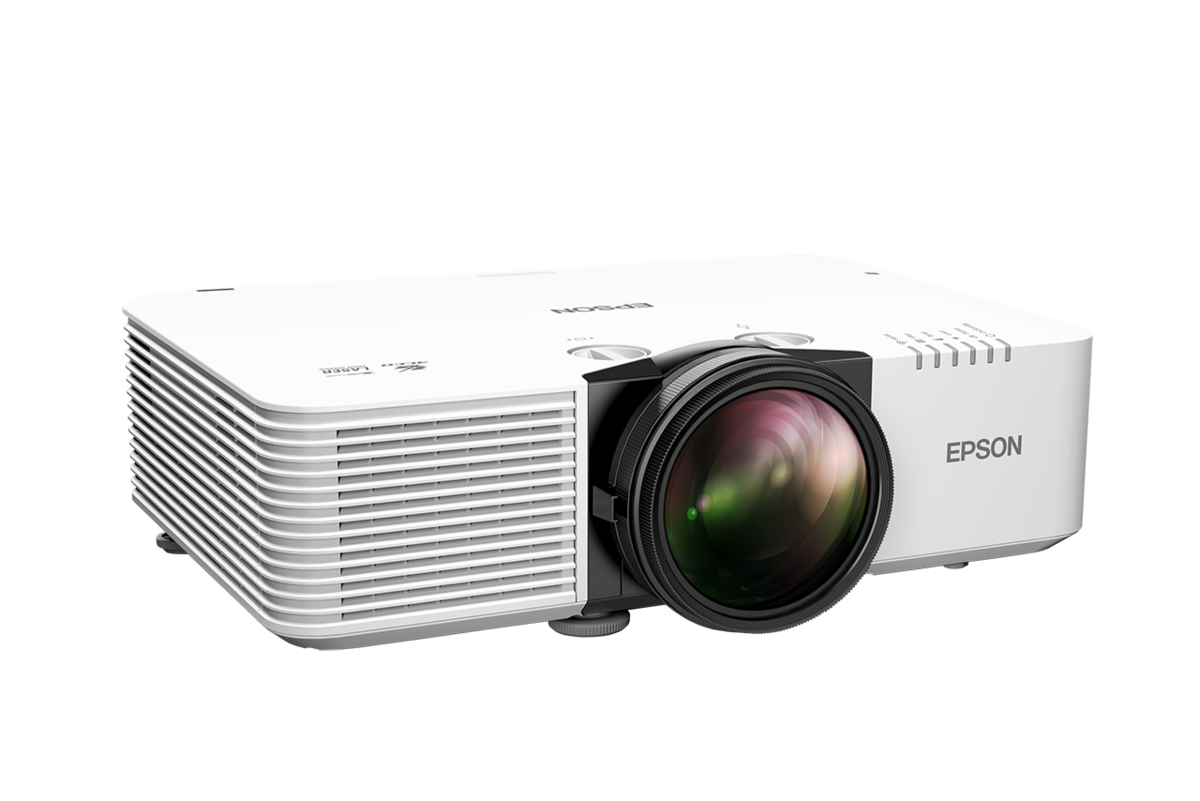

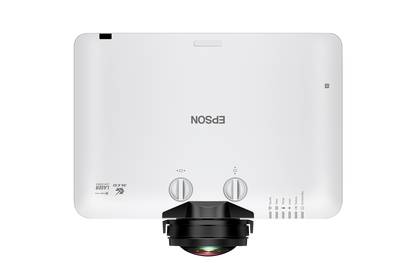

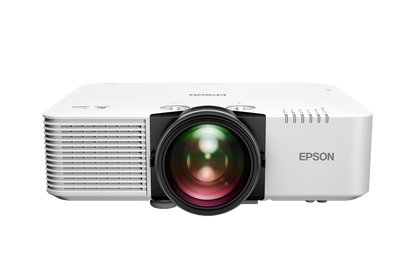

Epson EB-L690SU Short Throw 6,200 Lumens WUXGA 3LCD Laser Projector (V11HB31080)

Epson EB-L690SU Short Throw 6,200 Lumens WUXGA 3LCD Laser Projector (V11HB31080)

₱285,000.00 PHP
₱285,000.00 PHP
Sale Out of Stock
Shipping calculated at checkout.

Epson Brand - This product is Order Basis. For more details please email at sales@elnstore.com or Viber/iMessage/WhatsApp +63916 329 7178

This incredibly compact projector delivers larger-than-life images with a short 0.79 – 1.36 throw ratio.



Experience the extraordinary versatility and performance of our bright and compact L-Series. Expanding on the possibilities of this powerful projector lineup, the EB-L690SU features an expansive 0.79 – 1.36 throw ratio and a large display up to 400". With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness1 and WUXGA resolution.

Simple to install, the EB-L690SU is easy to operate from start to finish. Built-in NFC functionality4, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source2 and air filter in Extended Mode. Plus, it’s built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.

  • 6,200 lumens color/white brightness1
  • WUXGA for clear, detailed images
  • 0.79 to 1.36 throw ratio and 1.7x optical zoom
  • Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9
  • Lightweight, compact design allows for easy installation
  • AirPlay 2 supported

Ultra bright, true-to-life images
3-chip 3LCD technology and 6,200 lumens of equal color and white brightness1

WUXGA resolution
Provides 1920 x 1200 resolution for vibrant, high-definition images

Large, versatile display options
Easily create a display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility

Simplified installation
Compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern

Low maintenance
Up to 30,000-hour laser light source2 and air filter in Extended Mode

Wireless networking and content sharing
Wi-Fi 6 allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected, and WPA 3-enterprise security

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness1:

White Light Output (Normal/Eco):6,200lm / 4,340lmColour Light Output:6,200lmLight Output (Center)*3:6700Im

Connectivity:

USB:USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update Copy OSD Settings, Content Playback, ELPEC01, 5V/0.9A Power Supply
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network:Wired LAN: RJ45 x 1 (100Mbps)
Wireless LAN: Built-inDigital Input:HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)Audio Output:Stereo Mini: 1Control I/O:RS-232C: 1 (D-Sub 9pin)Digital Output:HDMI Out: 1 (HDCP2.3, support only HDMI 1 input)

Contrast Ratio:

Contrast Ratio:Over 5,000,000:1

Screen Size (Projected Distance):

Standard Size:80” diagonal 1.37m - 2.34mScreen Size:Zoom: Wide: 60” – 400” [1.02 – 6.95 m]
Zoom: Tele: 60” – 400” [1.75 – 11.89 m]

Geometric Correction:

Vertical/Horizontal Keystone:±30° / ±30°Projection Orientation:360º Free

Operating Temperature:

Single Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>
20% - 80% Humidity, No CondensationMulti-projection Use:Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:12 seconds (Epson Logo); Warm-up Period: 30 secondsQuick Start-Up:Less than 8 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Internal Speaker(s):

Sound Output:10 W Monaural

Direct Power On/Off:

Direct Power On/Off:Yes

Weight:

Weight:Approx. 8.9kg

Air Filter:

Type:Electrostatic FilterMaintenance Cycle*2:20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):34dB / 25dB

Specifications Projector:

Size - projected distance:100” diagonal (wide: 9.3’ – tele: 19.8’)Contrast Ratio:Absolute Black (Full White 1500 lm / Full Black 0 lm)Projection Method:Front / rear / ceiling mountProjection System:3LCD Reflective, 3-chip technology Poly-silicon TFT active matrixPixel Number:2,073,600 dots (1920 × 1080) × 3Color Brightness - Color Light Output:1500 lumens *1Projected Output:HD, 2D, 3D, 1080pWhite Brightness - White Light Output:1500 lumens *1Aspect Ratio:Native 16:9 widescreen (4:3 resize), compatible with 4:3 and 2.35:1 video formats with Normal, Full or Zoom ModesDriving Method:Epson Poly-silicon TFT active matrix, 0.74-inch wide panel Reflective HTPSNative Resolution:Native 1080p (1920 × 1080)Laser Type:Laser Diode 41.9 mW (Output)Light Source Life:Up to 20,000 hours (ECO Mode)*2

Power:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 HzPower Consumption (220-240V area):LD On (Normal / Extended): 399W / 295W
Standby (Normal / Eco): 2.4 W / 0.4 W

Colour Mode:

Colour Mode:Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema

Dimension Excluding Feet:

Dimension Excluding Feet (W x D x H):440 x 304 x 122 mm

Miracast:

Certification:Wi-Fi CERTIFIED Miracast R2Supported Codec:H.264 (AVC)

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Mode :Infrastructure, Simple AP (Wi-Fi Direct)Supported Speed :IEEE 802.11a/b/g/n/ac/axSecurity Tyре:Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, EAP-TLS
Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

AirPlay 2:

Supported Codec:H.264(AVC), H.265(HEVC), AV1, VP9, MEPG-2, MPEG-4

Specifications of Main Parts:

LCD:Size: 0.67” (C2 Fine)
Driving Method: Poly-silicon TFT active matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Native Resolution: WUXGA
Aspect Ratio: 16:10
Pixel Arrangement: Cross stripeLight Source:Type: Laser Diode
Life (Normal / Extended): 20,000 hours / 30,000 hoursProjection Lens:Type: Optical Zoom (Manual) / Focus (Manual) / Distortion (Manual)
F-Number: 1.7 – 2.1
Focal Length: 11.6 – 19.9 mm
Zoom Ratio: 1.0 - 1.7
Throw Ratio: 0.79 – 1.36
Lens Shift:
Vertical: ±50% (Manual)
Horizontal: ±20% (Manual)
